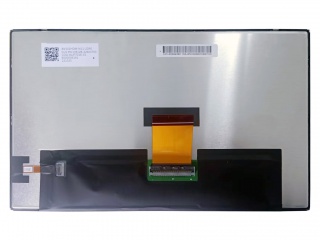

AV101HDM-N11

AV101HDM-N11

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	AV101HDM-N11
Panel size	10.1-inch	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	1280(RGB)x720,WXGA,145PPI	pixel layout	RGB vertical stripes
display area	223.68(W)x125.82(H) mm	Appearance size	233.9(W)x141.4(H)x12(D) mm
visible size	226.68(W)x128.82(H)	surface treatment	matte
panel brightness	700 cd/m2 (Typ.)	contrast	1000:1(Typ.) (transmission)
visual Angle	85/85/85/85 (Typ.) (CR≥10)	work pattern	ADS, normally black display, transmissive
viewing direction	full-view	reaction time	30 (Max.) (Tr+Td) ms
display color	16.7M,75% NTSC	Lamp Type	8S4P WLED,30K hours, no drive
working frequency	60Hz	touch screen	touchless
weight	347±30g	panel application
signal interface	LVDS (1 ch, 8-bit) , 60 pins , FPC
driving voltage	3.3V (Typ.)
work environment	Operating temperature: -40 °C to 85 ° C; Storage temperature: -40 °C to 90 ° C
