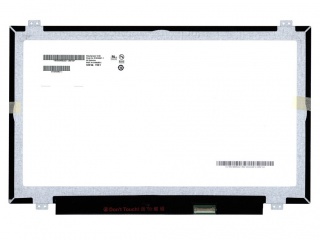

B140HAN01.1

B140HAN01.1

Download PDF Send Message

Basic Parameters

Brand	AUO	Model P/N	B140HAN01.1
Diagonal Size	14.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)x1080, FHD 157PPI	Pixel Format	RGB Vertical Stripe
Active Area	309.14(W)x173.89(H)mm	Bezel Opening
Outline(mm)	320.4x205.1x3.2 (HxVxD)	Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)	Contrast Ratio	700:1(Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry	Work Mode	AHVA, Normally Black, Transmissive
Color Depth	16.2M 72% NTSC	Backlight	WLED , 15K hours , With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)	Used for	laptop
Refresh Rate	60Hz	Touchscreen	Without
Signal Type	eDP(2 Lanes),eDP1.3,30 pins Connector
Voltage Supply	3.3V (Typ.)
Max.Ratings	Storage Temp.: -20~60℃ Operating Temp.: 0~50℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1500XGF2MA00	15"	1024×768	1500 nits	1000:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1500XGF1MB02	15"	1024×768	600 nits	1000:1	WLED	LVDS		-20 ~70 ° C
Tianma	P1500XGF1MB01	15"	1024×768	400 nits	1500:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1500XGF2MB10	15"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1330FHF1MB10	13.3"	1920×1080	600 nits	1000:1	WLED	LVDS	30	-20~70 ° C
Tianma	P1330FHF1ME10	13.3"	1920×1080	350 nits	1000:1	WLED	eDP	30	-20~70 °C
Tianma	P1400FHF1MA00	14"	1920×1080	800 nits	2200:1	WLED	LVDS	30	-20~70 °C
AUO	G140HAB01.1	14"	1920×1080	300 nits	800:1	WLED	eDP	---	0~50℃
AUO	G140XTN01.0	14"	1366×768	220 nits	400:1	WLED	eDP	30	0~50℃
AUO	G133HAN03.1	13.3"	1920×1080	300 nits	600:1	WLED	eDP	30	0~50℃
AUO	G133HAN03.0	13.3"	1920×1080	350 nits	800:1	WLED	eDP	30	0~50℃
AUO	G133HAN02.0	13.3"	1920×1080	400 nits	800:1	WLED	eDP	30	0~50℃
