Hengxinda is a stretched bar LCD displays supplier, offering sizes from 3.5 to 48.5 inches. Featuring standard brightness LCD displays, high brightness LCD displays, and ultra-wide LCD displays with diverse special resolution, they meet various commercial and industrial LCD display needs. With consistent display performance and flexible custom options, our stretched bar LCD displays are widely used in LCD digital signage, public transportation information, retail shelf edge display, museum exhibits, mall or corporate wayfinding, and outdoor advertising display signage. We are committed to providing high-quality, stable, and reliable industrial-grade bar type LCD display solutions to customers worldwide, ensuring that information is presented clearly, vividly, and efficiently.
• Screen sizes range from 3.5 inches to 48.5 inches.
• Brightness options range from 250 nits to 3,000 nits.
• Maximum resolution up to 4K Ultra HD.
• Related accessories includes LCD driver boards, touch screens, cables, and motherboards.
• Supports input interfaces (LVDS, eDP, TTL, etc.) and output interfaces (HDMI, MIPI, DP, etc.).
• Optional PCAP touch screens and resistive touch screens.
• OCA, OCR, and Air Bonding Available.
• AG, AR, and AF with IP65 or IP66 protection Optional.
• Ultra-wide aspect ratio ideal for narrow spaces and horizontal display.
• Clear image quality without distortion when stretched.
• Supports 7×24h continuous display.
• Standard signal inputs such as LVDS, eDP, and TTL etc.
• Flexible installation for horizontal or embedded use.

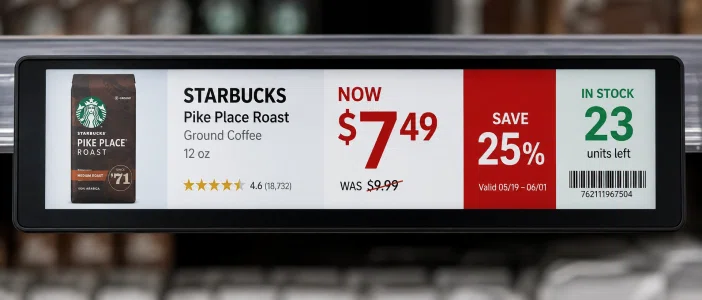

A bar type LCD display, also commonly referred to as a stretched bar LCD display, belt LCD display, or shelf edge display, is a type of TFT LCD display with a unique aspect ratio. Its elongated shape allows for a longer information display area within a limited space.
The stretched bar LCD display features a non-standard aspect ratio, also known as a widescreen LCD display. Compared to standard LCD screens, it offers higher display efficiency and greater visual expansiveness in narrow and elongated spaces, making it ideal for industrial equipment interfaces, digital signage, and information display systems. It supports customization in multiple sizes and aspect ratios, allowing for flexible adaptation to different device configurations and application requirements.
Hengxinda offers stretched bar LCD displays ranging from 3.5 inches to 48.5 inches. We not only offer bar LCD displays with varying brightness levels and resolutions, but also provide custom LCD display module solutions to meet your needs in terms of structural design, brightness requirements, and system integration.
| Item | Brand | Size (inch) | Model | Reference Picture | Outline Dimension | Resolution | Brightness (cd/m²) | Contrast Ratio | Operating Temperature |
| 1 | BOE | 19 | DV190FBM-NB0 |
| 491.5×109.4×13.3 mm | 1920(RGB)×360 | 300 | 1200:1 | 0 ~ 60 °C |
| 2 | BOE | 21 | DV210FBM-N00 |
| 542.4 × 54.7×12.77 mm | 1920(RGB)×132 | 300 | 1200:1 | 0 ~ 50 °C |
| 3 | BOE | 22 | DV220X2M-NV0 |
| 409.56×409.56×12.6 mm | 1920(RGB)×1920 | 500 | 1000:1 | 0 ~ 50 °C |
| 4 | BOE | 24 | DV240FBM-NB0 |
| 612.7×132.1×13.3 mm | 1920(RGB)×360 | 300 | 1200 : 1 | 0 ~ 50 °C |
| 5 | BOE | 25 | DV250VUM-N20 |
| 602.2×271.1×17.05 mm | 2560(RGB)×1080 | 250 | 1000：1 | 0 ~ 50 °C |
| 6 | BOE | 28 | DV280FBM-NB1 |
| 732×165×17.3 mm | 1920(RGB)×360 | 700 | 1200:1 | 0 ~ 50 °C |
| 7 | BOE | 28 | DV280FBM-NB2 |
| 732×165×17.3 mm | 1920(RGB)×360 | 700 | 1200:1 | 0 ~ 50 °C |
| 8 | BOE | 29 | DV290FBM-N10 |
| 720.8×226.25×21.6 mm | 1920(RGB)×540 | 700 | 1200:1 | 0 ~ 50 °C |
| 9 | BOE | 33.2 | DV332X2M-NV0 |
| 612.96×612.96×11.75 mm | 612.96×612.96 mm | 420 | 1000:1 | 0 ~ 50 °C |
| 10 | BOE | 35 | DV350FBM-N10 |
| 891.6×60.4×17.1 mm | 3840(RGB)×200 | 500 | 1000:1 | 0 ~ 50 °C |
| 11 | BOE | 36.6 | DV366FBM-N10 |
| 960×174.35×17.4 mm | 1920(RGB)×290 | 700 | 1200:1 | 0 ~ 50 °C |
| 12 | BOE | 37 | DV370FBM-N10 |
| 914.9×280.9×23 mm | 1920(RGB)×540 | 700 | 1000:1 | 0 ~ 50 °C |
| 13 | Innolux | 37 | S370AJ1-LE1 |
| 923.3×277.1×28.4 mm | 1920(RGB)×540 | 1000 | 5000:1 | 0 ~ 50 °C |
| 14 | BOE | 43.8 | ZK438FBM-18B |
| 1086.4×324×20 mm | 3840(RGB)×1080 | 300/500/700 | 1000:1 | 0 ~ 50 °C |
| 15 | BOE | 47.1 | DV471FBM-N10 |
| 1209×62.9×15.5 mm | 3840(RGB)×160 | 500 | 1000:1 | 0 ~ 50 °C |
| 16 | BOE | 48 | DV480FBM-N01 |
| 1217.85×248.18×30.1 mm | 3840(RGB)×720 | 1000 | 1000：1 | 0 ~ 50 °C |
| 17 | Innolux | 48.5 | S485AJ1-A01 |
| 1232.4×249.6×25.4 mm | 3840(RGB)×720 | 1000 | 5000:1 | 0 ~ 50 °C |
The stretched bar LCD displays listed above are our best-selling models. If the bar type LCD display you are interested in is not listed in the table above, please send us an inquiry to receive detailed product information.

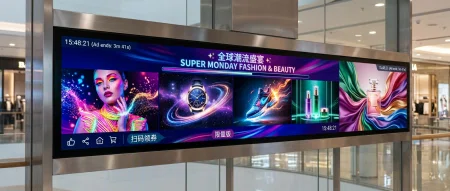

♦ LCD Digital Signage: Used in large supermarkets, public spaces, and smart city initiatives for dynamic advertising and content display systems.

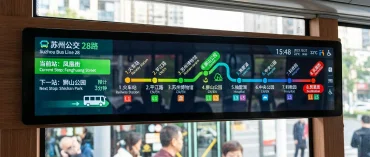

♦ Transportation Industry: Used in subways, buses, high-speed rail, airports, and other venues to display passenger information, route guidance, and operational status.

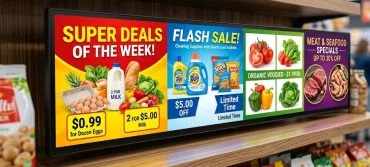

♦ Retail and Commercial Sector: Used in supermarkets, convenience stores, brand counters, and other locations to display prices, promotional advertisements, and brand visuals.
♦ Industrial Automation Industry: Used in automated systems and production line equipment to display equipment status and monitor parameters.
♦ Medical Equipment Industry: Displaying operating room status and physician availability, along with department information, floor guides, and patient guidelines.

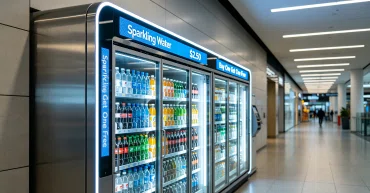

♦ Self-Service Equipment and Terminals: Used in vending machines, ordering kiosks, ATMs, and similar devices for human-machine interfaces and information display.
♦ Cultural Exhibition Industry: Used in museums, science centers, and trade shows for exhibit descriptions and interactive multimedia displays.
♦ Commercial Services or Corporate Promotion: Used in large supermarkets, companies, and high-end hotels for information alerts, navigation, and service displays.
♦ Entertainment Venues: Used in arcades, movie theaters, and sports arenas for venue zoning and wayfinding, session/machine status announcements, event updates, ticketing notifications, and commercial advertising.

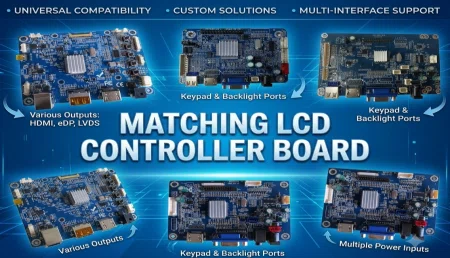

Special aspect ratios often require specific screen-mapping solutions. Our LCD driver boards support a variety of mainstream input interfaces such as HDMI, DP, and VGA. They have undergone rigorous engineering calibration to perfectly resolve issues such as aspect ratio distortion, black borders, or incompatibility, ensuring pixel-perfect, point-to-point display.

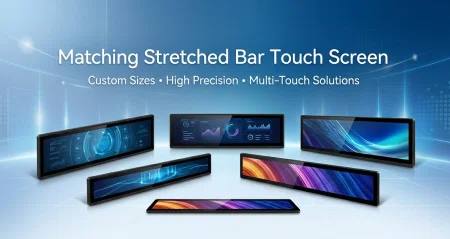

We can provide customized PCAP touch screen, resistive touch screen, and infrared touch screens for all stretched bar display models. The glass size, thickness, and number of touch points can all be fully customized. If you require additional protection, we can also provide custom-shaped cover glass and add your logo.

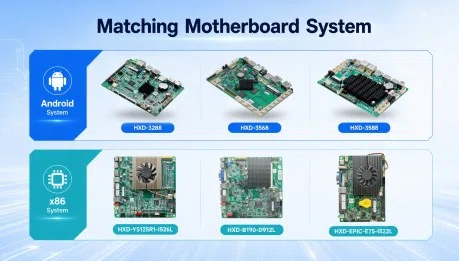

We offer two high-performance smart system motherboard integration options. A. Android Motherboard---Primarily used for multimedia content playback and information display. It supports video, images, and lightweight applications; is simple to develop and deploy; features low power consumption; and offers high stability. B. X86 Motherboard---Features stronger computing and expansion capabilities, capable of running industrial software, databases, and multitasking systems.
Using the accessories listed above, we can integrate the bar LCD display, LCD driver board, and stretched bar touch screen into a stretched bar touch display module, or combine the bar LCD display with the motherboard to form an all-in-one display module, which can then be delivered directly to end customers for use.
Stretched Bar LCD displays represent a niche segment within the commercial LCD display industry. With our diverse selection of LCD panels, end-to-end supply chain capabilities, and custom services, we have become a trusted partner to numerous clients. Whether you need to procure core products such as LCD panels or require custom all-in-one touch display solutions, we provide technical support, productr production and delivery to help you achieve efficient information display and interaction in retail, transportation, industrial, and other settings.
If you have specific requirements for size, resolution, or function and are looking for a reliable supplier of stretched bar LCD displays, please feel free to contact us at any time. We will provide you with a tailored bar LCD display solution!
Q1: Are you a manufacturer?
A: We have our own factory that produces LCD-related components such as LCD driver boards, touch panels, LED backlight driver boards, photosensitive boardls, and cables. However, we are a distributor supplying industrial LCD displays, high-brightness displays, wide-temperature LCD displays, automotive LCD displays, and stretched bar LCD displays ranging from 3.5 to 48.5 inches. We have served thousands of customers across multiple industries, including defense, industrial control, transportation, and healthcare. With our extensive experience, we can help customers save significant time in the pre-sales selection process and avoid potential risks.
Q2: What are the prices for the bar shaped LCD screens you supply?
A: Prices vary depending on your requirements. Additionally, LCD panels undergo rapid product updates, and the price of each LCD screen is based on its development, production materials, and inventory levels. However, comparatively speaking, our prices fall within the industry average, and we offer more competitive pricing for products of equivalent quality.
Q3: What customization services do you offer?
A: LCD panels can be customized at multiple levels, including the size, resolution, brightness, temperature range, and aspect ratio; LCD driver boards can be customized according to requirements for interface types (HDMI/LVDS/eDP/MIPI, etc.), resolution adaptation, and functional configurations; touch screens can be customized including size, multi-touch capability, cover glass protection rating, surface treatment, and optical bonding methods; matching cables can be customized for interface specifications, cable length, anti-interference features, and industrial connector designs to meet the overall compatibility requirements of different device structures and application environments.
Q4: Do your products have a MOQ requirement?
A: We do not have a MOQ requirement for samples. For repeat purchases of the same product, the MOQ is generally 20 units per order. However, for custom products, the MOQ is 50 units per order.
Q5: What is your lead time?
A: Standard LCD panel products are shipped within 3–7 days. Custom products can be shipped as quickly as one week, but this depends on a detailed assessment of your customization requirements. For more details, please contact our sales team; we will respond within 6 hours.
Q6: What shipping methods do you use?
A: We typically use international express carriers (such as DHL, FedEx, and UPS) for samples and small-volume orders; for large shipments, we use air or sea freight to save on costs.
Q7: What payment methods do you accept?
A: We accept T/T, PayPal, and L/C, among other payment methods. Orders totaling less than $3,000 require full payment in advance before shipment. Specific terms will be negotiated after the order is confirmed.
Q8: What is the warranty period for your products?
A: We provide a 12-month quality warranty for our products, effective from the date of receipt. If a product defect is confirmed within the warranty period, we will replace the item. In principle, we do not accept returns or exchanges for product issues caused by customer selection errors or human factors; however, exceptions may be made under special circumstances.
Q9: Are your stretched bar LCD displays compatible with my existing motherboard system?
A: They are compatible in most cases, but you must verify that the interface type (HDMI/LVDS/eDP) and resolution parameters match. We will provide compatibility recommendations based on your motherboard to prevent issues such as the screen not turning on or abnormal display.
Q10: How do I place my first order?
A: It takes just four steps: 1) Tell us your requirements or provide the target model; 2) We’ll confirm pricing, inventory, and lead time and provide a quote; 3) You confirm and make payment; 4) We’ll arrange production/shipping and provide logistics information. Our team will assist you every step of the way!
