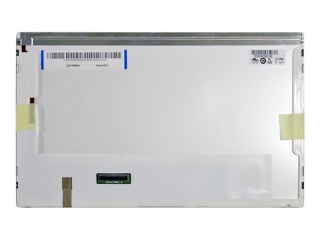

G101STN01.A

G101STN01.A

Download PDF Send Message

Basic Parameters

Panel Brand AUO panel model G101STN01.A
Panel size 10.1 panel type a-Si TFT-LCD,LCD Module
resolution ratio 1024(RGB)×600, WSVGA, 117PPI pixel layout RGB vertical stripes
display area 222.72(W)×125.28(H) mm Appearance size 235(W)×143(H)×6.64(D) mm
Brightness(cd/m²) 300 cd/m² (Typ.) the contrast 500:1 (Typ.) (TM)
visual Angle 70/70/60/60 (Typ.) (CR≥10)  surface treatment Hardcoating (3H)
display color 262K/16.7M , 45% NTSC work pattern TN, normally white display, transmissive
Panel Weight 184.5g (Typ.) response time 7/9 (Typ.) (Tr/Td) ms
recommended angle of view 6 o'clock light source type WLED , 20KhourswithLEDdriver
frame frequency 60Hz   use for industrial engineering
signal interface LVDS (1 ch, 6/8-bit) , 40 pins , Terminals touch panel touchless
driving voltage 3.3V (Typ.)
application environment Working: -10 ~60 °C ; storage: -30 ~70 °C
