Wide Temperature Operation, White LED Backlight, Lifetime ≥ 50 K hours, With LED Backlight Driver, Terminal Front Mount, Matte Surface.

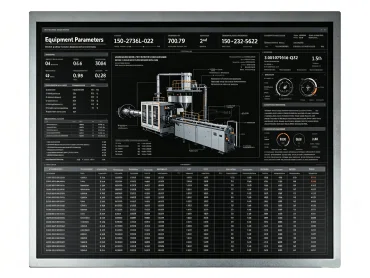

AUO G170EG01 V104 is a 17.0-inch industrial LCD display module using a-Si TFT-LCD display technology. It features WLED backlight and includes an LED driver, but do not have touch functionality. G170EG01 V104 has a resolution of 1280 (RGB) × 1024 (SXGA) with an aspect ratio of 5:4, and the pixels are arranged in a vertical RGB bar pattern. For backlight, AUO G170EG01 V104 uses a WLED edge-lit backlight (light source from the top), with a lifespan of 50,000 hours. G170EG01 V104 uses an LVDS (2-channel, 8-bit) signal interface with a total of 30 pins, connected via terminals, and operates at a voltage of 5.0V (Typ.). It is an ideal choice for traditional industrial control systems, traditional equipment upgrades, and embedded applications that require reliable square displays. Key specifications are shown in the table below.
 | Size | 17-inch | Brightness | 350 cd/m2 |
| Brand | AUO | Visual Angle | 80/80/60/80 | |
| Model | G170EG01 V104 | Interface | LVDS | |
| Resolution | 1280×1024 | Operating Temperature | -30~85℃ | |
| Backlight | WLED | Production State | In Production |
a. Ultra-wide Operating Temperature Range (-30°C to 85°C)
AUO G170EG01 V104 operates normally within a temperature range of -30°C to 85°C, making it a high-end industrial panel designed for harsh environments.
2. High Contrast Ratio (800:1)
AUO G170EG01 V104 features an 800:1 contrast ratio, ensuring rich color reproduction even in brightly lit environments such as factory floors and medical operating rooms. The matte surface treatment further enhances visibility by reducing unwanted reflections.
3. Classic 5:4 Industrial Aspect Ratio
The 5:4 aspect ratio is a long-standing standard for industrial control systems, medical equipment, and traditional device interfaces. This ensures seamless compatibility with existing equipment interfaces without any scaling or cropping, reducing procurement complexity.
4. Built-in LED Driver
AUO G170EG01 V104 features an embedded LED backlight driver, simplifying system integration. The WLED backlight system boasts a minimum lifespan of ≥50,000 hours, significantly reducing maintenance costs and downtime in continuous operation scenarios.
5. Replacement for the Older G170EG01 V1
G170EG01 V104 is designed as a direct replacement for G170EG01 V1, featuring fully compatible structural parameters and upgraded ICs, enabling long-term stable power supply. Here are basic parameters about AUO G170EG01 V104 for your reference and check.
| Brand | AUO | Model | G170EG01 V104 |
| Diagonal Size | 17.0 inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)x1024, SXGA, 96PPI | Pixel Format | RGB Vertical Stripe |
| Active Area | 337.92(W)x270.336(H) mm | Visual Area | 341.6(W)x274.0(H) mm |
| Outline Dimension | 358.5(H)x296.5(V) x12.95(D) mm | Surface Treatment | Matte, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 6 o'clock | Response Time | 20/10 (Typ.) (Tr/Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Display Colors | 16.7M 72% NTSC | Backlight | WLED, 50K hours,With LED Driver |
| Weight | 1.35Kgs (Typ.) | Application | Industrial Control |
| Operating Frequency | 60Hz | Touch Function | No |
| Interface Type | LVDS (2 ch, 8-bit), 30 pins, Connector | ||
| Power Supply | 5.0V (Typ.) | ||
| Temperature Environment | Operating Temperature: -30~85 ℃ ; Storage Temperature: -30~ 85 ℃ | ||
Here is a comparison table of parameters for three industrial LCD panels: AUO G170EG01 V0, AUO G170EG01 V1, and AUO G170EG01 V104, for your reference.
| Model | G170EG01 V104 | G170EG01 V0 | |
| Production State | In Production | Out of Production | |
| Panel Type | a-Si TFT-LCD, LCM | ||
| Resolution | 1280(RGB)×1024, SXGA, 5:4 | ||
| Pixel Layout | RGB Vertial Strip | ||
| Active Area | 337.92(H)×270.336(V) mm | ||
| Outline Dimension | 358.5(H)×296.5(V)×12.95(D) mm | 358.5(H)×296.5(V)×18(D) mm | 358.5(H)×296.5(V)×15.8(D) mm |
| Panel Weight | 1.35Kgs (Typ.) | 2.00Kgs (Typ.) | |
| Matte Surface | Matte Surface，Hard coating (3H) | ||
| Brightness | 350 cd/m² (Typ.) | 380 cd/m² (Typ.) | |
| Contrast Ratio | 800:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | 85/85/80/80 (Typ.)(CR≥10) | |
| Working Mode | TN, Normally White Display, Transmissive | ||
| Visual Angle Direction | 6 o'clock | ||
| Response Time | 20/10 (Typ.)(Tr/Td) ms | 3.5/1.5 (Typ.)(Tr/Td) ms | |
| Display Colors | 16.7M, 72% NTSC | ||
| Power Consumption | 16W (Typ.) | 22W (Typ.) | 22.2W (Typ.) |
| Backlight | WLED, 50K hours, with LED Driver | 4 pcs CCFL, 50K hours, without LED driver | |
| Interface | LVDS (2 ch, 8-bit), 30 pins, Connector | ||
| Environment Temperature | Operating Temperature: -30 ~ 85 °C; Storage Temperature -30 ~ 85 °C | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C | |
AUO G170EG01 V104, a 17.0-inch industrial LCD panel, features wide temperature adaptability (-30~85℃), high reliability, and a matte anti-reflective design. It is widely used in fields requiring extremely high stability and environmental tolerance, including:
a. Industrial applications: Industrial control panels, HMI interfaces, PLC control terminals, CNC machine tools, automated production line control equipment, embedded or rack-mounted industrial computers, etc.
b. Medical industry: Clinical diagnostic instruments, patient monitors, laboratory analytical instrument displays, precision measuring equipment, etc.
c. Monitoring equipment: Security monitoring consoles, video surveillance system display stations, environmental monitoring terminals, etc.

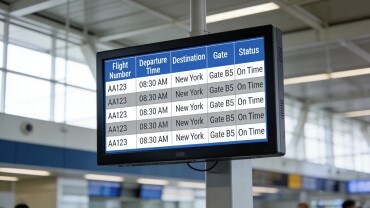

d. Transportation: Vehicle displays, train timetable displays, passenger information system displays, etc.
e. Energy and mining: Deep well drilling monitors, oil drilling platform control panels, explosion-proof mining equipment panels, downhole environmental monitoring terminals, etc.

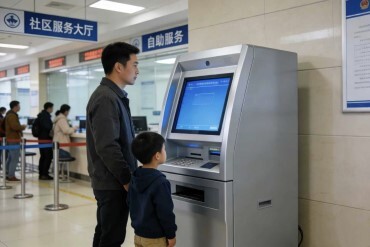

f. Indoor self-service equipment: Because the brightness of G170EG01 V104 is 350 nits, it is not enough to display a clear content under outdoor or semi-outdoor sunlight. Therefore, it is generally used in indoor self-service ticket machines, self-service kiosks, information query terminals, etc.
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
Why Choose Hengxinda Industrial LCD Panel?
a. Global Shipping – Fast and reliable global shipping service. We'll provide you with the tracking number immediately after shipment, allowing you to easily track your order.
b. Quality Assurance – 100% testing before shipment. Test videos can be sent to you if necessary.
c. Technical Support – Assistance with integration and compatibility issues and free technical specifications.
d. Adequate Inventory – Stable supply from the source factory to meet continuous production needs.
e. Factory Direct Pricing – Highly competitive prices for samples and bulk orders.
f. One-Stop Shopping Experience – We provide customized display solutions, offering matching touchscreens, driver boards, and custom cables.
We guarantee we supply 100% original AUO industiral TFT LCD displays in original packaging, and conduct rigorous quality control before shipment. Each LCD display undergoes a comprehensive series of tests to ensure: No dead pixels or visual defects. Consistent brightness and uniform color. Uses genuine AUO packaging and labels. Fully complies with manufacturer specifications
Q1. Do you support sample test?
A: Yes. We strongly recommend that every client test LCD panel test before placing an order. But we do not free sample. Before buying a sample, please contact our sales manager to confirm the inventory of LCD Panel model.
Q2. Is touch functionality an optional feature for AUO G170EG01 V104?
A: AUO G170EG01 V104 is a bare LCD panel and does not have built-in touch functionality. You will need to purchase a touch screen separately. If you require a touch screen, you can contact our sales manager for recommendations on compatible touch screen models. We offer a one-stop shopping service where you can purchase LCD panels, LCD driver boards, infrared touch screens, resistive touch screens, capacitive touch screens, and custom cables, among other accessories. We also provide glass bonding or touch screen bonding services.
Q3. The interface is a 30-pin LVDS (2 channels, 8-bit). Is G170EG01 V104 compatible with most motherboards on the market?
A: This is a standard industrial LVDS interface, compatible with the vast majority of motherboard devices. However, please note that the motherboard needs to be configured with dual-channel LVDS, 8-bit per channel. If you are unsure, you can contact our sales manager for technical support.
Q4. Can G170EG01 V104 be used in outdoor equipment?
A: Not really recommended. We suggest you choose a higher brightness industrial LCD panel. A 350 nits industrial LCD panel is more suitable for indoor environments.
Q5. What is your warranty service?
A: Once you purchases one LCD display, we offer a 12-month warranty for your order. If the LCD panel is broken by non-human, we are willing to replace one new LCD panel.
