Wide temperature range, white LED backlight, lifespan exceeding 50,000 hours, includes LED driver, front-mounted terminals, matte surface.

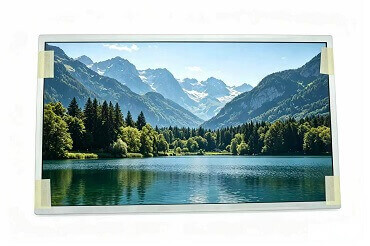

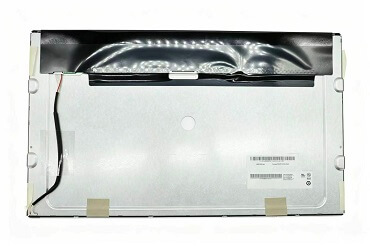

AUO G185HAN01.004 is an 18.5-inch LCD panel module that applies a-Si TFT-LCD technology. It is equipped with WLED backlight and integrated LED backlight driver, but without touch function. In terms of backlight, G185HAN01.004 adopts a side 8S7P WLED backlight with a service life of 50K hours. AUO G185HAN01.004 features an LVDS (2 channel, 8-bit) signal interface with a total of 30 pins, connected via connectors. The typical display driving voltage is 5.0V (Typ.). The operating temperature ranges from -30°C to 80°C, and the storage temperature ranges from -30°C to 80°C, and offers vibration resistance of 1.5G (14.7 m/s²). G185HAN01.004 can directly replace G185HAN01.0. Based on the features of wide temperature tolerance and high stability, G185HAN01.004 is recommended for applications in industrial equipment, medical imaging and other related products.
Key Product Specifications:
• Brand: AUO
• Size: 18.5-inch
• Active Area: 408.96(W)x230.04(H) mm
• Outline Dimension: 430.4(W)x254.6(H)x12.5(D) mm
• Backlight Type: 8S7P WLED, 50K hours, with LED driver
• Resolution: 1920(RGB)×1080, FHD, 16:9
• Contrast Ratio: 1000:1(Typ.)(TM)
• Interface: LVDS (2 ch, 8-bit), 30 pins, Connector
• Operating Temperature: -30~80℃
Product Features:
• Full HD Wide Viewing Angle: FHD resolution + AHVA technology ensures consistent viewing angles in all directions and clear image quality.
• Wide Temperature Range: Designed for extreme environments ranging from -30°C to 80°C, it delivers stable and reliable long-term operation, making it ideal for industrial and medical applications.
• Industrial-Grade Vibration Resistance: With 1.5G (14.7 m/s²) vibration resistance, it features excellent anti-vibration and compression resistance, making it suitable for industrial control, automotive, and complex operating environments.
️✅️In stock & ready to ship. Best price available. Request a quote now!
The basic parameters of AUO G185HAN01.004 are in the following table:
Custom Cables We support custom cable services for various industrial TFT LCD display modules, including signal cables for LVDS, eDP, TTL, and more. You can freely customize cable length, connector type, pin assignment, and other specifications according to your device structure. Proper cable design not only optimizes internal wiring and enhances anti-interference capability, but also reduces assembly complexity and improves production efficiency. Whether for sample testing or mass production, we offer fast response to meet your structural requirements.
Touch Panel
Both resistive touch and capacitive touch can be customized according to your needs. Resistive touch supports operation with gloves and styluses, features strong anti-interference, oil resistance and lower cost. Capacitive touch supports multi-touch, with sensitive response, smooth operation and longer service life.If you have specific application scenarios and requirements, please feel free to contact us, and we will recommend the most suitable solution for you. Touch screen bonding is a process that tightly bonds the touch screen to the TFT LCD panel, which directly determines display effect, touch accuracy, reliability, and product lifespan. Frame bonding features low cost, simple process and high yield rate, while full bonding delivers more transparent display, better sunlight visibility and stronger structural rigidity. Our bonding factory maintains strict requirements on process, production environment and materials to ensure high stability.
1. Industrial Equipment: AUO G185HAN01.004 features a wide temperature range of -30℃ to 80℃, industrial-grade vibration resistance and exceptional industrial stability. It can withstand temperature fluctuations and mechanical vibration in factory environments. Capable of long-term stable operation, it is widely used in industrial HMI display panels, data display devices and workshop monitoring terminal screens, supporting continuous reliable operation under harsh industrial conditions.
2. Medical Equipment: AUO G185HAN01.004 boasts advantages of full HD imaging and accurate color reproduction. It operates stably with low noise, meeting the strict requirements of medical equipment for image precision and operational stability. AUO G185HAN01.004 is suitable for medical diagnostic analyzers displays, ward monitoring terminals, and medical image auxiliary display screens. Its wide viewing angle design allows medical staff to view data and images from multiple angles. It supports long-term continuous stable operation and complies with the rigorous application standards of the medical industry.
3. Automotive Equipment: AUO G185HAN01.004 features superior vibration resistance, wide-temperature operation, and a full HD wide-angle view, and is specifically optimized for the complex and variable operating conditions of in-vehicle applications. It is suitable for construction machinery operation displays, special vehicle onboard terminals display panels, and monitoring console screens for logistics vehicles. AUO G185HAN01.004 remains free of image shaking under driving vibration, ensuring clear information viewing and safe and stable operation during travel.
As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
Why Choose Hengxinda Industrial LCD Panel?
• Competitive Price: All industrial LCD Panel we offer are from original factory. We are a professional supplier of top-tier industrial LCD screens from leading manufacturers such as AUO, Chimei Innolux, BOE, IVO, Sharp, and Kyocera. We source directly from the origin, providing only original industrial LCD screens in original factory packaging.
• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting LCD control boards, custom cables and custom touch screen solutions — all products can be purchased together.
• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.
• Secure After-Sales Service: We offer a 1-year official warranty. For industrial LCD panels with non-human damage within the warranty period, free replacement or repair is provided.
Q1: Do you provide accessories that match AUO G185HAN01.004?
A: Of course. We provide touch screens and related cables that match the AUO G185HAN01.004. If you want to purchase an 18.5-inch industrial touch display all-in-one machine, we can assemble and provide it for you.
Q2: What is the price of AUO G185HAN01.004?
A: We source directly from the original factory, offering the same quality at a better price. The same price also comes with better service. However, the price of the LCD panel will fluctuate depending on its production status. If you would like a free quote, you can also contact us for a detailed price list.
Q3: Can you help identify the cause if any problem occurs with the screen during use?
A: We can remotely assist customers in troubleshooting based on the abnormal symptoms of the LCD screen combined with our professional experience. In most cases, however, customers need to send the screen back to us. Our engineers will inspect the unit to locate the fault point, analyze possible causes, and provide corresponding solutions for customers.
Q4: What is the MOQ for the screens?
A: We do not have a minimum order quantity requirement; however, we generally recommend that customers place orders in quantities that are multiples of a full container load after the samples have been approved. A container typically holds between 20 and 80 pieces.
Q5: What is your warranty period?
A: We offer a one‑year warranty. Within the warranty period, for non‑human damage quality issues, we provide free return, replacement or repair service to fully guarantee your experience.
