Home > LCD Panel
Wide Temperature, Ultra-high Brightness, White LED Backlight, Lifespan exceeding 50,000 hours, Includes LED Driver, Positive Terminal Mounting, EC to G190ETN01.601 in December 22
Brand
AUO
Type
a-Si TFT-LCD
Model

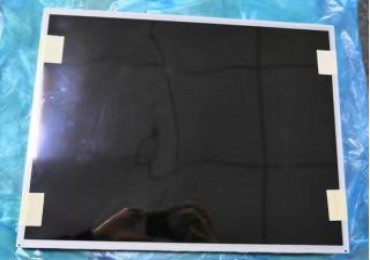

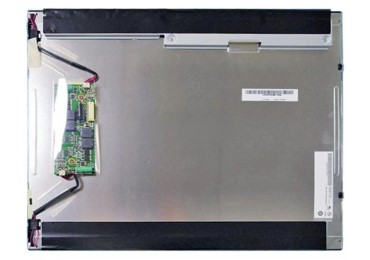

G190ETN01.600
Surface Finish
Hard coating (2H), anti-reflective treatment
Size (inch)
19
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
396(W)×324.3(H)×27.5(D)
Optical Mode
TN
Active Area (WxH mm)
376.32(W)x301.056(H)
Backlight Type
WLED
Viewing Angle
89/89/89/89
Interface
LVDS, 30 pins
Resolution
1280x1024 (SXGA)
Response Time
10 (Typ.)(Tr/Td) ms
Brightness (cd/m²)
1600
Dispay Colors
16.7M, 70%NTSC
Contrast Ratio
1000:1
Operating Temperature (°C )
-30~ 70
Operating Voltage
5V
Storage Temperature (°C )
-30 ~ 70
Operating Frequency
60Hz
Weight
2.12Kgs
Application

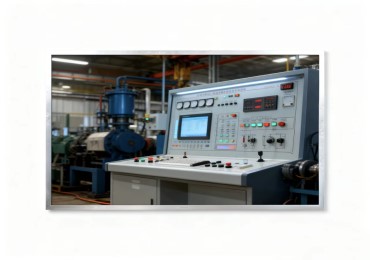

Industrial Control, Outdoor High Brightness Environment
✅12 Years of LCD Supply Chain Expertise Since 2013, we’ve specialized in LCD distribution and customization, representing 7 top brands like AUO, TIANMA, and BOE. With over 100,000 panels in stock and 24/7 global shipping, our supply chain is rock-solid and reliable.
✅Backed by 7 International Certifications ISO 9001/13485/14001, CE, RoHS, and IATF 16949 (in progress) — every shipment includes original test reports, ensuring zero export hurdles.
✅One-Stop Engineering Customization Our 15-member expert team delivers prototypes in 7 days and mass production in 30. We support IP67 protection, -40~85℃ extreme temps, MIL-STD shock resistance, and sunlight-readable displays.
✅Proven by 3000+ Global Clients Serving industry leaders like CRRC, Philips Healthcare, and BYD Automotive, we’ve delivered over 3 million flawless panels with zero returns and 95+ NPS satisfaction.
📩 Request Full Free Quotation & Custom Solution Now → Email & WhatsApp & Wechat
1. What are the advantages of AUO G190ETN01.600's 1600 cd/m² brightness over standard high-brightness screens? A: 1600 cd/m² represents an ultra-high brightness level, ensuring zero glare and clear visibility even under intense midday sunlight. It is ideal for extreme outdoor environments such as deserts and open-air construction sites.
2. What are the resolution and aspect ratio of this display? A: Resolution is 1280×1024 with a 4:3 aspect ratio. This delivers rich image detail and compatibility with most industrial hosts and AV equipment.
3. How does it perform in terms of power consumption and heat dissipation during ultra-high brightness mode? A: Typical power consumption is 42W. Featuring an efficient cooling design and low-power LED backlighting, it operates without overheating during extended use. It achieves 20% greater energy efficiency compared to competitors with equivalent brightness.
4. What is the function of the light sensor cable? A: Supported! The light sensor cable detects ambient light in real time, automatically adjusting screen brightness (300-1600 cd/m²) to balance clear visibility with energy efficiency.
5. What are the operating temperature range and protection rating? A: Operates in a wide temperature range of -30°C to 70°C. Features IP54 dust resistance and electromagnetic interference (EMI) protection, suitable for complex environments like industrial workshops and outdoor high/low temperatures.
6. What customization options does HXD offer? What is the OEM/ODM lead time? A: Supports brightness fine-tuning, interface additions/removals, form factor optimization, and touch functionality integration. Batch customization takes 7-15 business days for rapid implementation.
