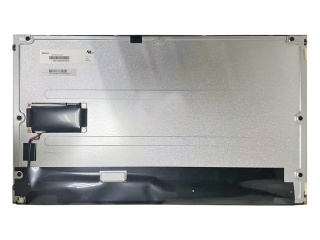

G215HCJ-L01

G215HCJ-L01

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	Panel Model	G215HCJ-L01
Panel Size	21.5 inches	Panel Type	a-Si TFT-LCD, Liquid Crystal Module
Resolution	1920(RGB)x1080, FHD, 102PPI	Pixel Layout	RGB vertical stripes
Display Area	476.064(W)x267.786(H)mm	Appearance Size	497.6(W)x287(H)x14(D)mm
Viewable Area	479.3(W)x270.9(H)mm	Surface Treatment	Matte (Haze 25%), Hard coating (3H)
Panel Brightness	400 cd/m²(Typ.)	Contrast	1000:1(Typ.)(TM)
Viewing Angle	89/89/89/89(Typ.)(CR≥10)	Operating Mode	AAS, Normally Black Display, Transmissive
Viewing Direction	Full View	Response Time	8/7(Typ.)(Tr/Td) ms
Display Color	16.7M, 73% NTSC	Light Source Type	WLED, 50K hours, including LED driver
Operating Frequency	60Hz	Touch Screen	No Touch
Panel Weight	1.94±0.08Kgs	Panel Application	Industrial
Signal Interface	LVDS(2 ch, 8-bit), 30 pins, terminal
Drive Screen Voltage	5.0V(Typ.)
Operating Environment	Operating: 0~60℃; Storage: -20~60℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P2130UXF1MA10	21.3"	1200×1600	900 nits	2000:1	WLED	LVDS	41	0~60℃
Tianma	P2130QSF2MA01	21.3"	2560×2048	1250 nits	2300:1	WLED	LVDS	104	0~60℃
Tianma	P2150FHF2MB00	21.5"	1920×1080	500 nits	1500:1	WLED	LVDS	30	-20~70 ° C
Tianma	P2130QSF1MA01	21.3"	2560×2048	3200 nits	2500:1	WLED	LVDS	104	0~60° C
AUO	G215HAN01.3	21.5"	1920×1080	250 nits	1000:1	WLED	LVDS	30	0~60℃
AUO	G215HAN01.201	21.5"	1920×1080	300 nits	1000:1	WLED	LVDS	30	-10~60 ° C
AUO	G215HVN01.3	21.5"	1920×1080	1000 nits	5000:1	WLED	LVDS	30	-20~80℃
AUO	G215HVN01.4	21.5"	1920×1080	1500 nits	5000:1	WLED	LVDS	30	-20~80 ° C
AUO	G215HAN01.0	21.5"	1920×1080	400 nits	1000:1	WLED	LVDS	30	0~60℃
AUO	G215HAN01.2	21.5"	1920×1080	350 nits	1000:1	WLED	LVDS	30	0~60℃
