White LED Backlight, 50,000+ Hours Lifespan, Integrated LED Driver, Front-Mount Terminals, Anti-Glare (Matte) Surface, TCO 5.1 Certified, Made in China (S11), Thickness: 16.85mm.

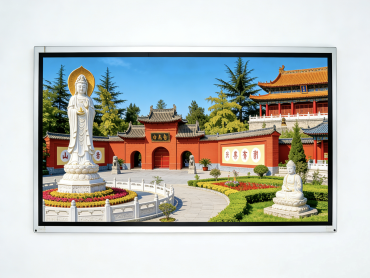

AUO G215HVN01.000 is a 21.5-inch Full HD industrial LCD module that redefines the meaning of "clarity and brightness" in professional applications—it delivers deep blacks, vibrant colors, and consistent wide viewing angles, unmatched by standard industrial panels. At its core is AMVA3 technology, achieving a contrast ratio of up to 5000:1, more than five times that of ordinary industrial LCD panels. Text stands out clearly against dark backgrounds. Graphics have depth and a three-dimensional feel. With a 1920×1080 Full HD resolution and 102 PPI, every detail is accurately rendered. Small text is sharp and clear, complex charts are easy to read, and high-resolution images are presented exceptionally well. When your application demands extremely high visual fidelity, this panel will meet your needs. Its operating temperature range (0°C to 50°C) is optimized for controlled indoor environments such as control rooms, medical facilities, commercial spaces, and offices, where temperature remains stable without compromising visual quality.
By choosing the AUO G215HVN01.000, you choose a monitor that delivers professional-grade visual performance for your critical applications.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G215HVN01.000
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
21.5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
495.6×292.2×17.35
Optical Mode
AMVA3,Normally black display, TM
Active Area (WxH mm)
476.64×268.11
Backlight Type
10S6P WLED, 50K hours, with LED driver
Visual Area (WxH mm)
479.84×271.31
Interface
LVDS (2 ch, 8-bit), Connectors,30 pins
Optimal Visual Angle
Full-view
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Resolution
1920 (RGB)×1080, FHD,102PPI
Response Time
10/6 (Typ.) (Tr/Td) ms
Brightness (cd/m²)
300
Display Colors
16.7M, 72% NTSC
Contrast Ratio
5000:1 (Typ.) (TM)
Operating Temperature (°C )
0~ 50
Operating Voltage
5.0V (Typ.)
Storage Temperature (°C )
-20~60
Operating Frequency
60Hz
Weight
2.30Kgs (Max.)
Application
Industrial Control
Basic Information
Brightness (cd/m2)
5000:1 (Transmission)
Visual Angle Direction
Color Performance
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M ( 8-bit )
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut
NTSC Ratio
72%
sRGB
92%
Adobe RGB
71%
DCI-P3
74%
REC.2020
54%
REmarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Perfect for plant-wide monitoring stations, SCADA system displays, and process control interfaces etc.
5000:1 contrast ratio makes data easier to read at a glance, reducing operator fatigue during long shifts. Multiple operators can view the same screen from different angles without color distortion.
Ideal for PACS workstations, patient monitoring systems, and medical review stations etc.
Full HD resolution and high contrast reveal subtle details in diagnostic images, while the wide viewing angle allows medical teams to collaborate effectively around a single display.
Built for traffic control centers, logistics coordination terminals, and transportation management systems etc.
Operators get clear, readable displays in brightly lit control rooms, with the viewing angle performance that team collaboration requires.
Suited for digital signage, conference room displays, and corporate information boards etc.
Professional-grade image quality elevates your brand presentation, while the durable construction ensures reliable operation in business environments.
Ready for casino gaming machines, amusement park terminals, and interactive entertainment systems etc.
The deep blacks and vibrant colors create immersive visual experiences that engage users and enhance gameplay.
Let's talk about how AUO G215HVN01.000 can transform your equipment's user experience.
Whether you're designing a new control room system, upgrading medical imaging workstations, or developing commercial displays that need to impress, we're here to help you succeed. Professional-grade LCD displays for professional applications. Let's make it happen.
💬 Tell Us About Your Application
📧 Send us your inquiry today
👉 Request a Sample | Ask a Technical Question | Get a Quote
HXD is a professional supplier of LCD TFT display modules, providing brands such as AUO/BOE/IVO/Sharp/ Innolux etc. And we have our own factory to provide relevant accessories including LCD control board, touch screen, light sensor, adapter plate, cable etc. and important components. For all products, we can provide the following services:
1. Flexible Customization Service Supports personalized adjustments of the core parameters of LCD TFT panel, covering size (3"-32"), shape, brightness (up to 25oo nits), interfaces, resolution and other aspects, to meet the differentiated requirements of your terminal products.
2. "One-stop Shopping" Experience In addition to the LCD TFT display, we also supply a complete set of related accessories such as LCD driver boards, LCD touch screens, light sensors, and adapter cables.
3. Product Quality Assurance Before each batch of LCD TFT screens is shipped, aging tests, lifespan tests, and environmental adaptability tests are completed.
4. Reliable After-sales Service Provide 1-year official warranty that are not damaged by human factors during the warranty period can be replaced or repaired free of charge.
Welcome to contact us now!
1. Q: What is your MOQ? A: For the standard model, the MOQ is usually 1-5 pieces. The exact quantity may vary depending on the model. For custom-made products, the MOQ is higher and needs to be confirmed separately. For more details, please send an inquiry and the sales manager will contact you.
2. Q: Which payment methods are supported? A: We accept payment through methods such as T/T, PayPal (for small amounts), and L/C etc. The specific terms will be negotiated after the order is confirmed.
3. Q: Does the product come with a warranty period? A: Yes, we offer a 12-month quality warranty for standard products, starting from the date of delivery. The warranty covers manufacturing defects that are not caused by human error.
4. Q: Besides the LCD screen, do you offer any other related products? A: Yes, we provide a complete set of display accessories, including various touch screens (resistive, capacitive, infrared), custom cables, backlight driver boards, main control driver boards (driver boards for interfaces such as LVDS/eDP), LED driver boards, and brightness adjustment converters, forming a one-stop solution.
5. Q: How to choose the screen that suits my project? A: When making the selection, you need to consider factors such as size, resolution, brightness, operating temperature, interface type, and lifespan. Our sales engineers can recommend the most suitable model for you based on your specific application scenarios (such as outdoor, medical, automotive) and budget.
