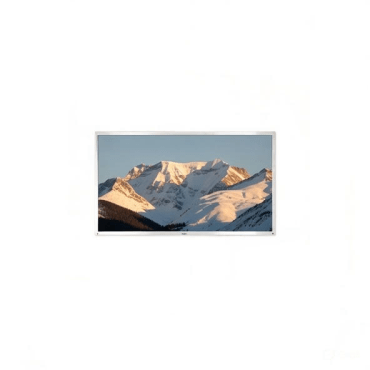

BOE GV101WXM-N11 is a 10.1-inch high-definition a-Si TFT-LCD panel specifically designed for industrial applications. With a resolution of 1280×800 (WXGA), it offers a clear and detailed picture, making it suitable for devices requiring high-resolution display. It employs ADS technology, providing full viewing angles (85°/85°/85°/85°), ensuring no distortion from any angle; the typical brightness is 400 nits, with a contrast ratio of 900:1, guaranteeing good visibility even in bright environments. The surface is treated with 25% matte finish and 6H hard coating, providing anti-glare and scratch resistance, making it more durable to use. The module supports MIPI interface (4 data channels, 40 pins), with a power supply of only 3.3V, low power consumption; the built-in WLED backlight can work up to 30,000 hours. The operating temperature range is -20°C to +70°C, making it highly suitable for use in industrial control, medical equipment, and vehicle-mounted devices.
| Panel Brand | BOE | Panel Model | GV101WXM-N11 |
| Panel Size | 10.1-inch | Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280(RGB)x800,WXGA,150PPI | Pixel Layout | RGB vertical stripes |
| Display Area | 216.576(W)x135.36(H) mm | Appearance Size | 239(W)x160.8(H) mm |
| Visible Size | - | Surface | Haze (25%),Hard coating (6H) |
| Brightness (cd/m²) | 400 (Typ.) | Contrast | 900:1(Typ.) [Transmission] |
| Visual Angle Direction | full-view | Optical Mode | ADS, normally black display, transmissive |

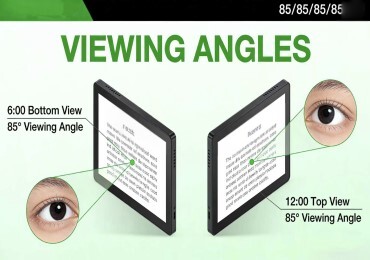

| Visual Angle | 85/85/85/85 (Typ.) (CR≥10) | Response Speed | 30 (Typ.) (Tr+Td) ms |
| Display Colors | 16.2M,50% NTSC | Backlight Type | WLED,30K hours with LED driver |
| Screen Weight | TBD | Application | industrial engineering |
| Operating Frequency | 60Hz | Touch Screen | Projected capacitive touch screen,I²C |
| Signaling System | MIPI(4 data lanes), Terminals, 40 pins | ||
| Supply Voltage | 3.3V (Typ.) | ||
| Temperature | Storage Temperature: -20 ~70°C ; Working Temperature: -20 ~70°C | ||
1. Long-life low-power design: Cost savings and improved stability.

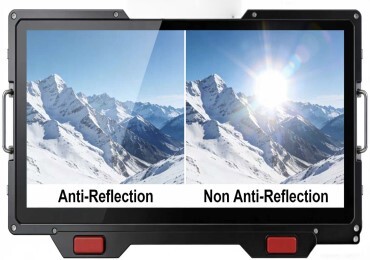

2. Matte surface+ 6H hard coating: Improved visibility and extended lifespan.
3. ADS display technology: High flexibility in operation and high collaboration efficiency.

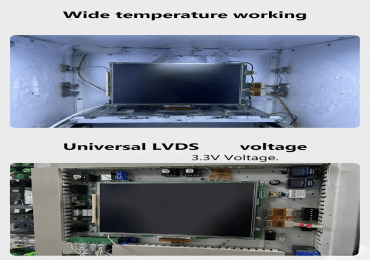

4. Wide temperature operating range (-20℃ to +70℃): Reliable operation and reduced risks.
5. Integrated projection capacitive touch (PCAP): Enhanced interaction efficiency and convenient operation.
If you have specific project requirements, please feel free to contact us for further discussion!

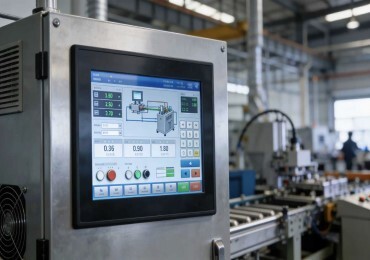

1. Industrial Control: HMI panels, PLC touch control terminals, etc.

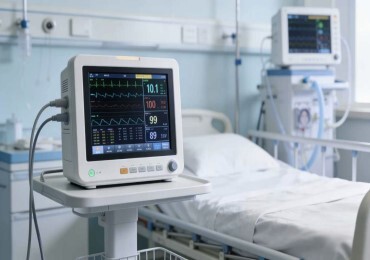

2. Medical Equipment: Bedside monitors, portable ultrasound diagnostic devices, etc.
3. Vehicle and Transportation: Engineering vehicle instrument displays, bus-mounted information terminals, etc.
4. Smart Vending Machine: Self-service ordering machines, etc.

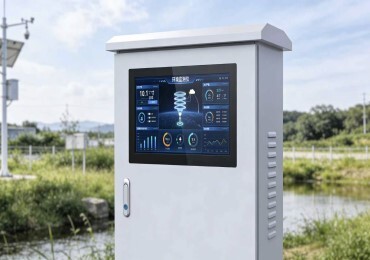

5. Instruments Equipment: Environmental monitors, logistics sorting equipment control screens, etc.

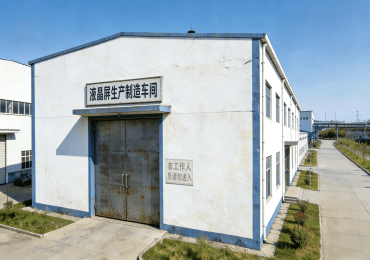

Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a professional LCD display supplier and manufacturer with 12 years of experience, covering the full process from product development and manufacturing to sales and after-sales support. We independently manage the complete supply chain and operate a 1,000-square-meter factory, ensuring reliable delivery timelines and consistent product quality. As an experienced LCD panel supplier, we offer a wide range of panels from leading brands including AUO, BOE, IVO, CHIMEI, Innolux, and Sharp. In addition, we design and produce compatible LCD driver boards, LCD touch screen functional expansion modules, and custom cables, providing customers with comprehensive "hardware + functionality + integration" solutions. With over a decade of technical expertise and market knowledge, we have successfully supported thousands of clients in industrial automation, medical equipment, and commercial display applications. HXD is your reliable, cost-effective partner for high-quality LCD display implementations across diverse industries.
1. Ultra-fast Delivery: 3-7 days for sample production.
2. After-sales Service: free technical documents and 24/7 technical support.
3. Full Process Support: free quotations based on your requirements and one-stop shopping for OEM/ODM.
4. Customized LCD Display Solution: customize brightness (peak 3000 nit), contrast, resolution, shape, size and interface etc..
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AUO | G101STN01.4 | 10.1" | 1024×600 | 350 nits | 500:1 | WLED | LVDS | 40 | -20 ~70 °C | ||
| BOE | TV101WXU-N91 | 10.1" | 1280×800 | 1000:1 | No Backlight | - | -20~70 ° C | ||||
| BOE | TV101WXM-NLB | 10.1" | 1280×800 | 350 nits | 1000:1 | WLED | MIPI | 39 | -20~60 ℃ | ||
| BOE | TV101WUM-NH3 | 10.1" | 1200×1920 | 450 nits | 1000:1 | WLED | MIPI | 51 | -10~60 ° C | ||
| BOE | TV101WXM-NA0 | 10.1" | 1280×800 | 450 nits | 1000:1 | WLED | MIPI | 40 | -10~60 ° C | ||
| BOE | TV101WUM-LZ4 | 10.1" | 1200×1920 | 300 nits | 900:1 | WLED | MIPI | 51 | -10~60 ° C | ||
| BOE | NV101WUM-N53 | 10.1" | 1200×1920 | 400 nits | 1000:1 | WLED | MIPI | 45 | -20~60 ° C | ||
| BOE | NV101WUM-N52 | 10.1" | 1200×1920 | 400 nits | 1000:1 | WLED | MIPI | 42 | 0~50℃ | ||
| BOE | TV101WUM-AD0 | 10.1" | 1200×1920 | 400 nits | 800:1 | WLED | MIPI | 34 | -20~65℃ | ||
| BOE | GV101WXB-N83 | 10.1" | 1280×800 | 1300:1 | No backlight | LVDS | 40 | -20~70 ° C |
