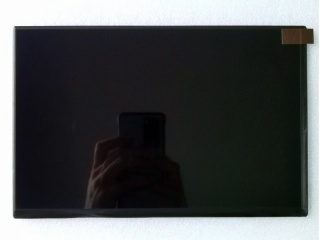

GV101WXM-N81

GV101WXM-N81

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	GV101WXM-N81
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1280(RGB)x800, WXGA,149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)x135.6(H) mm	Appearance size	228.3(W)x149.05(H)x2.6(D) mm
visible size		surface treatment	Mirror (Haze 0%),Hard coating
Brightness (cd/m²)	300 (Typ.)	contrast	800:1(Typ.) [Transmission]
best angle	full-view	optical mode	ADS, normally black display, transmissive
visual Angle	85/85/85/85 (Typ.) (CR≥10)	response speed	30 (Typ.) (Tr+Td) ms
number of colors	16.7M,48% NTSC	Backlight type	WLED,15K hours with LED driver
Screen Weight	155g (Max.)	be the same with	Tablet PC industry
refresh rate	60Hz	touch function	touchless
signaling system	eDP(1 Lane), eDP1.2, HBR1 (2.7G/lane), Terminals, 30 pins
supply voltage	3.3V (Typ.)
maximum rated	Storage temperature: -20~60 °C Working temperature: -20~60 °C
