HXD-VD58WV LCD driver board is a versatile industrial-grade 30 pin LCD controller board designed to convert VGA and DVI signals to LVDS outputs. Supporting resolutions up to 1920×1200, it is ideal for a wide range of TFT LCD display applications. HXD-VD58WV LCD control board can support auto dimming, potentionmeter knob dimming, multiple language support, meets DICOM's brightness control standards, supports GAMMA control (with 7 preset GAMMA curves), and can operate stably at temperatures as low as -40℃. This board is widely used in industrial control systems, embedded devices, digital signage, and display upgrades.
♦ Wide Voltage Input: 12–28V wide voltage input design. The LCD driver board continues to operate stably even when the voltage fluctuates, eliminating the need for an additional voltage regulator and reducing costs.
♦ Support Auto Dimming: Reserved light sensor interface, when connected to an external light-sensing module, it can measure ambient light intensity in real time. It automatically boosts brightness under strong sunlight and dims backlight at night or cloudy days.
♦Support Rotary Knob Dimming: A potentiometer dimming port is reserved. External potentiometer enables pure hardware manual brightness adjustment without serial commands or software operations, delivering fast and intuitive debugging.
♦Supports Multiple Languages: HXD-VD58WV LCD driver board features a built-in multilingual font library, allowing users to switch freely between multiple languages..
♦ DICOM-compliant Brightness Control: Strictly compliant with the DICOM medical imaging display standard, it delivers linear and uniform brightness output, accurately reproduces grey-scale levels, and eliminates brightness discontinuities in the image.
♦ Supports GAMMA Control: 7 preset Gamma curves built-in, it accurately calibrates image contrast, gray scale and color gradation to fit different application scenarios
♦ Enhanced Anti-static Protection and Power Isolation: Designed with anti-static protection to effectively guard against electrostatic discharges during assembly and use. The power supply section employs an isolated circuit architecture to protect the driver board and LCD screen from damage caused by power surges, thereby enhancing safety standards.
Display output
Maximum resolution
Max:1920x1200
Output Interface
Single/Dual/LVDS
Support signal
Analog RGB
Horizontal Freq
30-120KHz
Vertical Freq
50-75Hz
0.7Vp-p@75ohm
Separate/Composite/SOG sync support
Digital DVI
OSDKeypad
Power,Menu,Exit,Plus,Minus
Menu type
Graphical Menu
Language support
Supports 8 languages including Chinese and English
Function operations
Mode/Brightness/Contrast
FUNCTION
Language/Reset/Color Temp.
PC
Clock
Phase
H position
V position
Auto configure
Power
Stand-by
<0.5W 12Vstb/200mA
Input
24V/dc Note1:

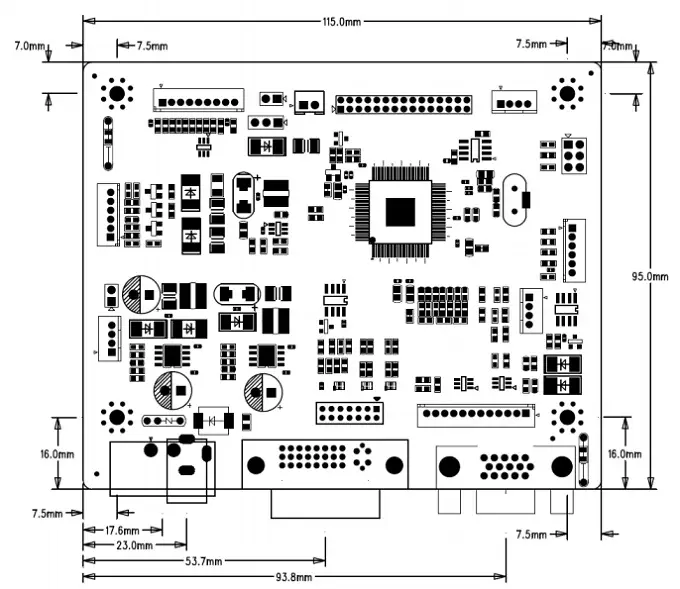

The dimensions of HXD-VD58WV LCD mother board are shown below for your reference. For more detailed information, please refer to the datasheet, which can be downloaded by clicking [download PDF].
1. TFT LCD Display Panel: Available in multiple resolutions up to 1920×1200, LVDS interface, optional 3.3V/5V/12V panel power supply, industrial grade wide-temperature option is available.
2. Touch Screen: Capacitive or resistive touch optional. We customize touch solutions as required, supporting frame bonding or full bonding.
3. HXD-VD58WV LCD Controller Board: Core drive unit with VGA/DVI input, LVDS output, supports auto dimming and rotary knob dimming.
4. Backlight Driver Board: Specially matched to screen backlight parameters for stable constant-current backlight drive.
5. OSD Keypad Board and Matching Cables: For on-screen menu adjustment of brightness, contrast, color temperature and source switching. Cable length, connector type, pin assignment, and other specifications can be freely tailored to your device structure. Good cable design helps optimize internal wiring, enhance anti-interference capability, reduce assembly difficulty, and improve production efficiency.
HXD-VD68DG LCD motherboard is a reliable and versatile solution for converting VGA and DVI signals into LVDS output. HXD-VD68DG LCD control board HXD-VD68DG can operate stably at temperatures as low as -40℃. Supporting resolutions up to 1920×1200. It features enhanced anti-static protection and an isolated power supply. HXD-VD68DG LCD driver board is suitable for medical imaging equipment, outdoor unattended terminals, industrial control and testing equipment, security surveillance display equipment, and more.
Product Manager:Mark Si
HXD-VD68 LCD panel driver board supports VGA and DVI signal input, and LVDS signal output. HXD-VD68 LCD control board can operate stably within a wide temperature range of -20℃ to +60℃. Supporting resolutions up to 1920×1200. This LCD driver board supports automatic light sensing, black-and-white display, OSD display and control, multi-language options, and factory mode.

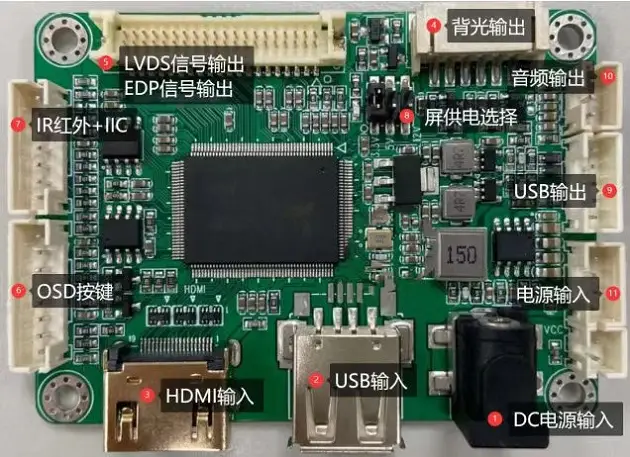

HXD256HU-V1 LCD screen control board adopts HDMI input and LVDS + eDP outputs for wide compatibility. Wide temperature operation. Integrated with LED backlight driver, HXD256HU-V1 LCD control board supports PWM duty cycle brightness control. With maximum resolution up to 2K, it presents sharp and clear images, perfectly suited for various high-definition display applications. HXD256HU-V1 is a small-size LCD driver board with dimensions of 74.2mm×53mm×11mm, it occupies little space and features flexible & convenient installation.
