How to Choose Automotive TFT LCD Displays | Car Display Selection Guide

2026-03-20

With the rapid development of in-vehicle systems, choosing the right automotive LCD panel has become critical for ensuring safety, usability, and long-term reliability. Unlike consumer displays, car LCD displays must perform reliably under extreme conditions such as high/low temperatures, vibration, sunlight exposure, and continuous operation. Whether you're designing a dashboard, infotainment system, or rear-seat display, selecting the right LCD panel directly impacts product performance and user experience.

In this article, we will walk you through the key factors engineers and buyers must consider when choosing an automotive LCD display.

Download PDF Send Message

I. Core Prerequisites for Selecting Automotive LCD Panels

The requirements for LCD panels vary across different automotive scenarios, which constitutes the primary premise of the selection process. This is particularly critical for B2B automotive device manufacturers and solution providers, who must first clearly define the specific automotive application scenario before proceeding with parameter screening—a fundamental principle underlying the selection of automotive LCD displays. The common application scenarios for automotive LCD displays, along with their core requirements, are outlined below.

🚗 Automotive LCD Display Applications

Selecting the right LCD panel for each in-vehicle application

◊ Central Infotainment

⚖️ Must balance display quality with touch experience.

✓ Preferred choices:

High-color-gamut panels
Resolution: ≥ 1080P
Multi-touch touchscreen
EMI resistance

◊ Instrument Cluster

🎯 Core: Stability & readability.

✓ Selection criteria:

High-brightness (sunlight-readable)
Fast-response, no motion blur
Wide-temperature range
HDR support (preferred)

◊ Head-Up Display

🔍 Key: Contrast ratio & light transmittance.

✓ Preferred choices:

Matte-finish panels
Fast-response panels

◊ Rear-Seat Entertainment

🎬 Quality + Power control.

✓ Selection criteria:

Low-power panels
High-resolution panels
Wide viewing angles (IPS preferred)

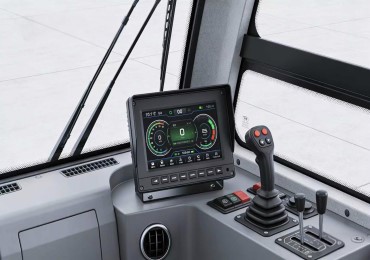

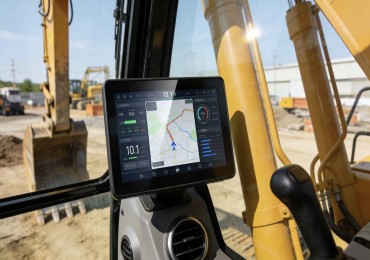

◊ Specialized Vehicles

🌡️ Ag, Heavy Trucks, Special-Purpose

✓ Preferred choices:

Wide-temp: -40°C to 85°C
High protection: IP67+
Vibration/dust/water resistant

Need help selecting the right automotive display?
Talk to Our Experts →

II. Key Selection Parameters for Automotive LCD Panels

For engineers, technical parameters serve as the primary basis for component selection. Rather than attempting to maximize every single parameter, the approach should be to "select based on need," aligning choices with specific application scenarios. The following five core parameters directly determine a LCD panel compatibility and stability; they constitute the essential core of effective selection strategies for automotive LCD displays.

Automotive TFT LCD Display Specifications

Key technical requirements for in-vehicle applications

❄️

1. High and Low-Temperature Resistance

A core metric for automotive applications

Operating Temperature: -30°C to 85°C

Storage Temperature: -40°C to 90°C

✓ Ensures normal power-on — no black screens, ghosting, or color distortion under extreme temperatures

☀️

2. Brightness and Contrast

Key to readability in complex lighting conditions

Brightness Requirements:

Central Infotainment Display/Digital Instrument Cluster:
≥ 500 nits

HUD/Outdoor vehicle displays:
≥ 1000 nits

Heavy trucks:
1000–1500 nits

Contrast Ratio ≥ 1000:1; HUD: ≥ 1500:1

⚡

3. Response Time and Refresh Rate

Prevents motion blur and lag

Response Time ≤ 10 ms

Digital Instrument Cluster/HUD: ≤ 5 ms

Refresh Rate≥ 60 Hz

📌 Note: TN panels: ≤ 8 ms (ideal for instrument clusters) ; IPS panels: wider viewing angles, slightly longer response

📐

4. Resolution and Display Size

Tailored to vehicle interior space

Display Size

Central Control Display: 7–15.6"
Digital Instrument Cluster: 3–12.3"
HUD: 2–5"
Rear-Seat Entertainment Displays: 8–12"
Specialized Vehicle Displays (Agricultural Machinery, Heavy Trucks, Special-Purpose Vehicles): Custom

Resolution

Central Infotainment Display: ≥ 1080P
Digital Instrument Cluster: ≥ 720P
High-end: 2K optional
Specialized vehicle Displays: e.g., 480×234

🔋

5. Power Consumption and Lifespan

Ensuring long-term stability

Power Consumption

Central Infotainment Display≤ 10W

Digital Instrument Cluster≤ 5W

Low-power LED backlight · Sleep mode support

MTBF Lifespan≥ 50,000 h

Need help selecting the right automotive display?
Contact Our Experts →

III. Recommended Models of In-vehicle TFT LCD Displays

Brand	Model	Size (inch)	Resolution	Brightness (nit)	Contrast Ratio	Backlight	Interface	Operating Temperature
Innolux	AT070TN94	7.0	800×480	400	500:1	WLED	Parallel RGB	-30~85℃
IVO	M080AWP4 R0	8.0	800×480	500	800:1	WLED	Parallel RGB	-30~85℃
AUO	C101EAN05.0	10.1	1280×800	700	900:1	WLED	LVDS	-20~70℃
Innolux	G121X1-L03	12.1	1024×768	600	700:1	WLED	LVDS	-30~80℃
IVO	M123AWF2 R1	12.3	1920×1080	1000	1000:1	WLED	LVDS	-30~85℃
TIANMA	P1280FHF1MAAA	12.8	1920×1080	800	1400:1	WLED	LVDS	-30~85℃
Innolux	G150XNE-L01	15.0	1024×768	500	2500:1	WLED	LVDS	-40~85℃
BOE	COG-PVLBJT166-01	15.3	2560×1600	800	1400:1	WLED	eDP	-40~85℃
Innolux	G154JCE-L01	15.4	1920×1080	800	1400:1	WLED	FPD-Link III	-40~85℃
AUO	C156HAA01.2	15.6	1920×1080	960	1000:1	WLED	LVDS	-40~85℃
IVO	M156GWFA R0	15.6	1920×1080	1000	1000:1	WLED	LVDS	-30~85℃
BOE	COG-VLBJT035-01	17.4	1200×1920	800	1000:1	WLED	LVDS	-40~85℃

Why Partner with HXD for Automotive TFT LCD Displays?

Choosing the right automotive LCD display is not just about specifications — it’s about ensuring long-term reliability, safety, and performance in real-world vehicle environments.

If you are developing a vehicle system, selecting a sunlight readable, wide temperature, and industrial-grade LCD display will significantly improve your product quality and reduce long-term costs. Please trust and choose to partner with Zhengzhou Hengxinda Technology Co., Ltd., a manufacturer specializing in the production and supply of industrial LCD displays up to 32 inches, which will provide you with the following services:
✔ High brightness sunlight readable LCD displays
✔ Wide temperature industrial LCD panels
✔ Matching touch screen & optical bonding service & glass bonding service
✔ LCD Driver board solutions (LVDS / HDMI / eDP)
✔ Fast sample support (3–10 days)
✔ Long-term stable supply

👉 Contact us now to get expert recommendations and a fast quotation.
