HXD-HP58UWV
HXD-HP58UWV

HXD-HP58UWV

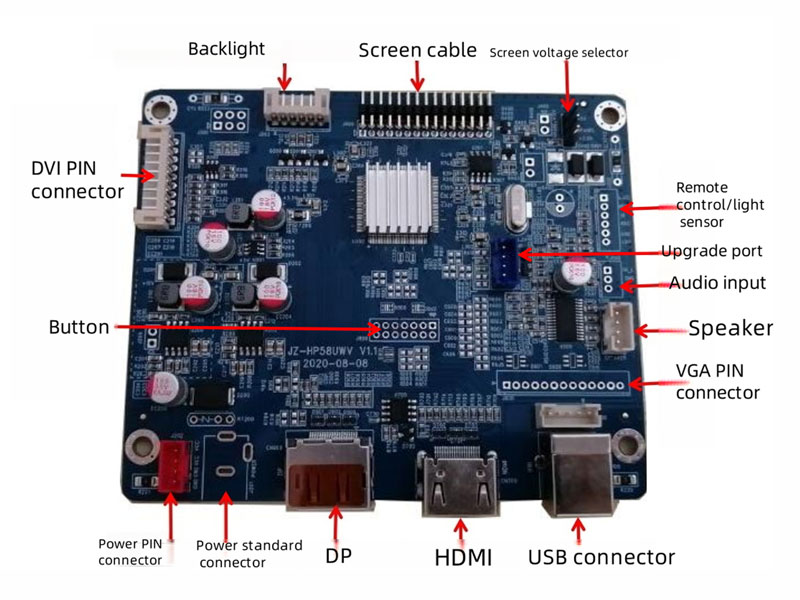

Product model: HXD-HP58UWV
The driver board has 1 DP interface and 1 HDMI interface, supporting LVDS. The output interface is provided.
It supports resolutions up to 1920 x 1200.
Download PDF Send Message

Product overview

Supports audio amplifier: 2x10W.
Supports maximum resolution: 1920x1200.
Supports input signal resolution: ALL VESA standard.
Supports remote control function.
Supports light sensing function.

Product feature

Display output Resolution: Max.1920x1200
Output port: Single/Dual Channel LVDS
Support signal HDMI: Maximum resolution:1920x1080@60Hz
Horizontal Freq:30-120KHz
Vertical Freq: 50-75Hz
DisplayPort input: Supports 2.7Gbps and 1.62Gbps per lane
10.8Gbps bandwidth over 4 lanes
Button Power,Menu,Select,Plus,Minus
Menu type Graphical menu
Language support Chinese and English languages
Functional operations Picture Mode/Brightness/Contrast
FUNCTION Language/Reset/Color Temp.
PC Clock/Phase/H position/V position/Auto configure
Power supply Stand-by <1W 24Vstb/200mA
Input 24V/dc Note1)

Related Products

STC-7095 Touch Display (PCAP)

STC-7095 Touch Display (PCAP)

product model : STC-7095
Outline size : 164*99mm
touch area : 155.5*86.7mm
construction : p+G
port : 12Cor USB
ICmodel : GT911
sensitive time : <20ms
resolution ratio : 4096*4096
transmittance : ≧86%
product use Medical equipment, vehicle, industrial control
Matching LCD models AT070TN94

Contact Us

Product Manager:

Send Message
HXD-MV59

HXD-MV59

Product model: HXD-MV59
Operating temperature range-20 to 60℃.
It supports resolutions up to 1920 x 1200.
Size specifications: length x width x height 150mm x 82.5mm x 15mm
3-channel CVBS signal input, 1-channel VGA input, 1-channel HDMI/DVI input, 1-channel YPBPR input, 1-channel USB, 1-channel CVBS output, 2*5W power amplifier output

Contact Us

Product Manager:

Send Message
HXD-YT58

HXD-YT58

Product model: HXD-YT58
Operating temperature range-40 to 70℃.
The driver board is equipped with 1 VGA port, 1 DVI port and 1 HDMI port, and supports LVDS output interface.
It supports resolutions up to 1920 x 1200.
Size specifications: length x width x height 110mm x 82.5mm x 15mm

Contact Us

Product Manager:

Send Message
HXD-MP16

HXD-MP16

Product model: HXD-MP16
Operating temperature range-20 to 60℃.
It supports resolutions up to 1920 x 1200.
Size specifications: length x width x height 130mm x 90mm x 15mm
1 VGA input, 1 HDMI/DVI input, 1 YPBPR input, 2 USBs, 1 CVBS output, dual LVDS outputs
