HXD-LP0818 is a high-power, industrial-grade DC-DC constant current driver board engineered perfectly for 26" to 43" inches LED-backlight LCD display modules
35~70 (VDC)
HXD-LP0818 is a high-performance LED constant current driver board specially designed for LCD display module backlight systems. It converts 12V or 24V DC input into a stable 35V-70V LED driving voltage, providing reliable power for LCD monitors, industrial displays, digital signage systems, medical equipment, and other LCD-based devices ranging from 26 to 43 inches. With high efficiency, wide dimming capability, and built-in protection functions, it ensures stable backlight operation while extending LED lifetime and reducing maintenance costs.
♦ Dual 12V/24V Input Architecture: The most exceptional feature of this backlight driver board is the simultaneous integration of 12V and 24V input.
♦ 600mA Powerful Output: HXD-LP0818 delivers a massive 600mA maximum total current and an output power capability of up to 50W, illuminating any LED backlight matrix from 26-inch up to 43-inch.
♦ Equipped with Independent Light Sensor Sub-Board: We include an independent photosensitive sensor PCB along with a 2PIN 1.25 interface cable.
♦ Industrial-Grade Thermal Design & 93.5% High Efficiency: With an outstanding 93.5% DC-to-DC conversion efficiency, energy loss is minimized. Tested stringently via full-load burn-in at 60℃±5℃, this backlight driver board ensures continuous 7×24 operation.
♦ Hardware-Level True DC Dimming: Utilizes a smooth 0V to 5V analog voltage curve 0V=Max Brightness, 5V=Min Brightness to provide flicker-free illumination, satisfying medical anti-fatigue display standards and eliminating high-frequency EMI.
♦ Adaptable Feedback Resistor Matrix: The output current can be customized from 35mA to 600mA. Our factory can adjust the surface-mounted feedback resistors to fit the unique voltage/current behaviors of your selected panel.
♦ Built-In Overcurrent Fuse Defense: An input line fuse protector prevents abrupt voltage surges or upstream power supply faults from causing catastrophic damage to your expensive LED light strips.
♦ Premium Static-Free Delivery: 100% packaged and delivered in ESD shielding bags, guaranteeing total protection against electrostatic or magnetic anomalies prior to assembly.
Channel 1: DC 12V (11.5V-13V)
Channel 2: DC 24V (23.5V-25V)

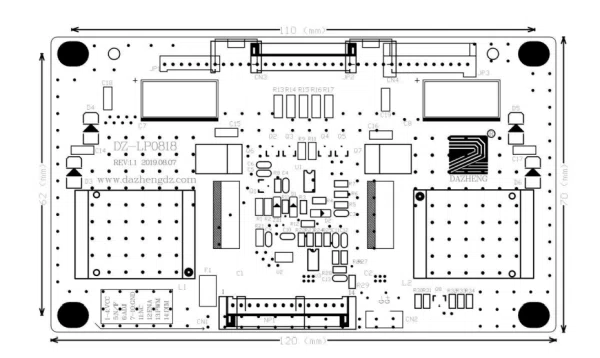

Clicking "Download" will provide you with a detailed parameter datasheet for HXD-0818 LED driver board. The mechanical drawings are as follows：
HXD-LP0818 backlight driver board is widely used across various devices; our customers utilize this universal LED driver board for display backlight systems in the following applications: • Industrial equipment: CNC machine tools, PLC control systems, industrial HMIs, automated production line equipment, etc. • Medical equipment: Medical display terminals such as ultrasound diagnostic systems, patient monitors, medical aesthetic display devices, dental display equipment, etc. • Commercial display equipment: Advertising displays, digital signage, self-service display systems, information dissemination systems, facial recognition displays, security monitoring displays, outdoor terminal equipment, etc. • Transportation equipment: In-vehicle displays, passenger or flight information displays, ticketing kiosk displays, rail transit display terminals, etc.
As a leading China supplier of industrial TFT LCD display module solutions, Hengxinda specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
We supply complete integrated solutions consisting of LCD panel with controller board. We offer compatible cables, driver boards, touch screens and other accessories. We offer customization services, including interface modifications, the addition or removal of features, and hardware parameter tuning. We can devise a comprehensive display solution tailored to your equipment’s installation space, signal requirements, operating environment, resolution and power supply conditions, providing a one-stop solution to all your display requirements.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
• Rich Industry Experience: With over 10 years of in-depth involvement in sectors including industrial control, medical equipment, automotive electronics, rail transit, and military applications, we deeply understand the unique requirements of each industry.
• Professional Technical Support: Our engineering team provides full pre-sales consultation (product selection/cost optimization) and after-sales service (1-year warranty, fast response).
Q1. What LCD sizes is the HXD-LP0818 suitable for?
A: This backlight driver board is suitable for LCD LED backlight displays ranging from 26 to 43 inches.
Q2. Can it replace the my original driver board?
A: In most cases, yes. Please provide the model numbers and specifications for both the original driver board and the LCD panel so our engineers can verify compatibility and provide a definitive answer.
Q3. Does HXD-LP0818 support brightness adjustment?
A: Yes. 0V corresponds to maximum brightness, and 5V corresponds to minimum brightness.
Q4. Can the output current be customized?
A: Yes. The current can be matched by adjusting the feedback resistor based on the LED backlight parameters. We recommend providing your LCD panel's backlight specifications before placing an order so we can configure the settings prior to shipment.
Q5. Does HXD-LPo818 include protection features?
A: Yes. It features built-in input over-current protection and fuse protection.
Q6. What is the minimum order quantity?
A: Sample orders start at 1 unit. Bulk orders start at 20 units.
Q7. Is technical support available?
A: Yes. We provide driver matching, wiring guidance, replacement solution assessments, and after-sales technical support.
