HXD-LP5581 is a DC-DC constant-current LED backlight driver specifically designed for 42- to 60-inch professional LCD LED backlight modules. It is highly recommended for smart digital bus shelters, airport/railway flight info displays, large clinical displays, interactive boardroom screens, and factory-floor HMI displays.
80~140 (VDC)
HXD-LP5581 is a high-performance LED constant current driver board designed specifically for large-size LCD backlight driver systems ranging from 42- to 60-inch. Featuring advanced DC-DC boost technology, the backlight driver board converts 24V DC input into a stable 80V-140V LED output, making it ideal for industrial displays, digital signage, medical equipment, transportation systems, and high-brightness LCD display applications. Designed for long-term reliability, HXD-LP5581 offers high efficiency, low thermal dissipation, and stable constant-current operation for demanding industrial environments.
♦ 24V Industrial Power Alignment: HXD-LP5581 works with native industrial 24V (23.5V~25V) DC systems.
♦ 80V-140V High-Voltage Output: Specifically engineered for large panels where multiple LED bars are arranged in long series.
♦ Triple-Output Socket Architecture (6P/13P/4P) for Cross-Brand Compatibility: our PCB board integrates CN2 (6P), CN3 (13P), and CN4 (4P) terminals simultaneously.
♦ DC Dimming: Employs a robust 0V to 5V analog dimming voltage scale 0V= Maximum brightness, 5V=Minimum brightness to output a steady, continuous DC wave.

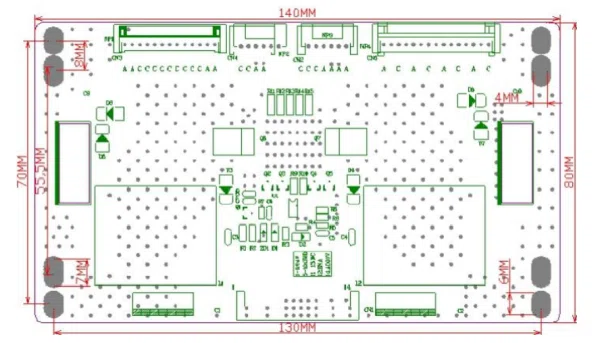

Clicking "Download" will provide you with a detailed parameter datasheet for HXD-LP5581 LED driver board. The mechanical drawings are as follows：
As a qualified manufacturer of backlight driver boards, we can customize dimensions, size, function, temperature range, and other specifications to meet your requirements; please consult our sales team for details. And, regarding the HXD-LP5581 backlight driver board, we can make the following adjustments prior to shipment:
♦ LED backlight board matching
♦ LED driver board customization
♦ Current adjustment
♦ Voltage optimization
♦ Connector customization
♦ Cable assembly services
♦ Replacement solutions for LED driver boards
As a leading China supplier of industrial TFT LCD display module solutions, Hengxinda specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
We supply complete integrated solutions consisting of LCD panel with controller board. We offer compatible cables, driver boards, touch screens and other accessories. We offer customization services, including interface modifications, the addition or removal of features, and hardware parameter tuning. We can devise a comprehensive display solution tailored to your equipment’s installation space, signal requirements, operating environment, resolution and power supply conditions, providing a one-stop solution to all your display requirements.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
• Rich Industry Experience: With over 10 years of in-depth involvement in sectors including industrial control, medical equipment, automotive electronics, rail transit, and military applications, we deeply understand the unique requirements of each industry.
• Professional Technical Support: Our engineering team provides full pre-sales consultation (product selection/cost optimization) and after-sales service (1-year warranty, fast response).
Q1: Can this LED driver board replace my original LED driver board?
A: In most cases, yes. Send us your LCD model and backlight specifications for evaluation.
Q2: Is HXD-LP5581 suitable for high-brightness LCD displays?
A: Yes. The 80V-140V output voltage makes it ideal for high-brightness backlight systems.
Q3: Can the output current be customized?
A: Yes. Output current can be adjusted by modifying feedback resistors.
Q4: Do you offer technical support?
A: Yes. We provide engineering support, compatibility verification, and troubleshooting assistance.
