HXD858HV-V1 LCD panel driver board is a reliable and versatile solution for converting HDMI, VGA signals into LVDS outputs. This LVDS board controller supports resolutions up to 1920 x 1200 and a wide voltage range of DC 8V~18V input. HXD858HV-V1 LCD display driver board is widely applied to industrial displays, vehicle displays, and medical equipment displays.
♦ Wide voltage input
HXD858HV-V1 LCD control board supports wide voltage input ranging from 8V to 18V, with 12V as the typical voltage. When the LCD panel is powered by 12V, the board must also be supplied with 12V.
♦ Wide operating temperature
HXD858HV-V1 LCD panel driver board works reliably within a wide temperature range from -10℃ to +70℃, adapting to most conventional indoor and industrial operating environments.
♦ Rich Resolution Compatibility
HXD858HV-V1 screen motherboard supports a broad range of display resolutions, covering from 800×480 up to 1920×1200, and is compatible with various mainstream small and medium-sized LCD panels.
♦ On-board LED backlight driver circuit
Equipped with a built-in LED backlight driver circuit, it is designed to drive small and medium-sized LED backlight with a working voltage of 9V~25V, delivering steady and consistent backlight output.
♦ Built-in T-CON circuit
Integrated with professional T-CON circuit, this universal LCD controller board can directly drive small and medium-sized LVDS LCD panels that come without built-in T-CON, simplifying the overall wiring and system structure.
♦ LVDS output interface
Model
HXD858HV-V1
Outline Dimension
107mm×56 .4 mm×16 .5mm (L×W×H)
Display Color
24-bit (16.7M Colors)
Panel Interface
LVDS
Resolution Coverage
LCD panels from 480×272 up to 1920×1200
Signal Input
Input Signal Type
VGA, HDMI
Input Signal Range
HDMI Input Range
PC (VGA/HDMI) up to 1920×1200
VGA Input Range
Supply Voltage
Min:10.8V / Typical:12V / Max:13.2V
Operating Current
Min:0.05A / Typical:0.1A / Max:0.3A
Standby Power
＜0.8W
Panel Supply Voltage
3.3V/5V/12V selectable via jumper
Max Panel Load (Ambient Temp.)
1.8A@3 .3V、2.5A@5V、3.5A@12V (12V displays are limited by the power supply's capacity)
Operation Interface
Visual OSD menu
Communication Interface
Digital buttons, infrared(IR)，I²C
Operating Temperature
-10℃～70℃,－30℃～70℃ (excluding the main chip)
MTBF
＞100,000 Hours

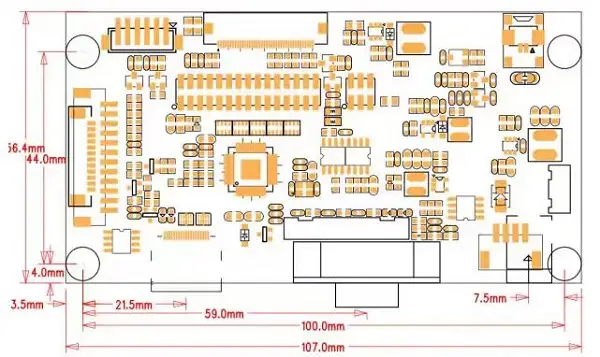

Layout & dimensional drawing of HXD858HV-V1 universal LCD controller board shown below for your reference:
✅️️ Apart from the standard functions, our LCD controller board comes with plenty of reserved functions and unused interfaces, which are set to NC by factory default. If you have extra demands for additional functions, signal ports or hardware configurations, please feel free to contact us. Our team can conduct personalized development and customization to fully fit your project.
1. TFT LCD Display Panel: Available in multiple resolutions ranging from 800×480 up to 1920×1200, LVDS interface, optional 5V/12V panel power supply, industrial grade wide-temperature option is available.
2. Touch Screen: Capacitive or resistive touch optional. We customize touch solutions as required, supporting frame bonding or full bonding.
3. HXD858HV-V1 LCD Controller Board: Core drive unit with HDMI/VGA input, LVDS output, supports PWM brightness adjustment.
4. Backlight Driver Board: Specially matched to screen backlight parameters for stable constant-current backlight drive.
5. OSD Keypad Board and Matching Cables: For on-screen menu adjustment of brightness, contrast, color temperature and source switching. Cable length, connector type, pin assignment, and other specifications can be freely tailored to your device structure. Good cable design helps optimize internal wiring, enhance anti-interference capability, reduce assembly difficulty, and improve production efficiency.
Q1: How do I choose the right LCD control board?
A: First, identify the interface type of the TFT LCD screen (MIPI, LVDS, eDP, V-by-One), then select the desired input interface (VGA/DVI/DP/HDMI). These two parameters will help you narrow down the proper AD controller quickly.
Q2: Does the HXD858HV-V1 driver board support customization?
A: Features such as the OSD menu, wide voltage range, over-temperature protection, dedicated backlighting and special interfaces can be customized, our technical team will develop these as required. Reserved NC interfaces can be enabled upon request. If you have any needs, please provide your detailed specifications and application requirements, and we will create a tailored solution for you.
Q3: How is the stability of the LCD control board guaranteed?
A: The LCD control boards have passed high and low temperature tests and 72-hour continuous operation aging tests.
Q4: How difficult is the installation of LCD control boards, and is installation guidance provided?
A: Adopting standardized interfaces and modular design, the installation process is simple and compatible with industry-universal mounting holes. Remote assistance from technical personnel is also available.
Q5: Does HXD858HV-V1 LCD mother board come with a warranty?
A: Yes. We offer a 12-month warranty for standard products, starting from the date of receipt. The warranty covers manufacturing defects excluding man-made damage.
