Industrial LCD Displays vs. Commercial LCD Displays: Core Differences and Your Selection Guide

2026-01-27

In industrial automation, smart equipment, and commercial display systems, TFT LCD displays have become a crucial component for human-machine interaction. While industrial-grade LCD displays and commercial-grade LCD displays may look similar in appearance, they differ significantly in design philosophy, reliability, and application boundaries. Although industrial LCD displays and commercial LCD displays may appear similar at first glance, they differ substantially in design philosophy, internal components, and application boundaries. Incorrect selection can lead to frequent failures, reduced service life, increased maintenance costs, and even production downtime.

This article provides a comprehensive comparison from four perspectives—definition, core differences, application scenarios, and selection methodology—to help you choose the right display solution for your specific use case.

Download PDF Send Message

What Are Industrial-Grade and Commercial-Grade TFT LCD Displays?

Industrial-grade TFT LCD Displays are primarily designed for industrial control, outdoor equipment, and complex working conditions, with their design focus on stability, environmental adaptability, and long-term continuous operation. These products typically use industrial-grade components, support 24/7 operation, and can function reliably under wide temperature ranges, high humidity, vibration, and electromagnetic interference.

Commercial-grade LCD displays, on the other hand, are mainly used in office environments, commercial displays, and information release systems. They prioritize visual performance and cost-effectiveness, making them suitable for stable conditions with normal temperatures, clean environments, and intermittent usage patterns.

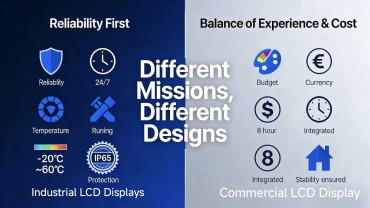

Core Differences Between Industrial and Commercial LCD Panels

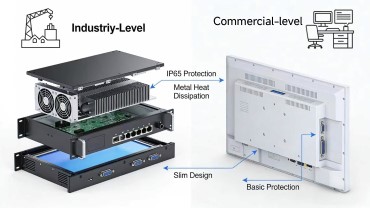

1. Structure & Design

♦ Industrial LCD panels: Metal armor (die-cast aluminum/steel), toughened glass, high IP65/IP67 ratings (dust/water resistant). Supports multiple mounting (embedded, VESA). Locking connectors. Robust cooling and wide-voltage input (e.g., 12-24V DC).

♦ Commercial: Lightweight plastic/aluminum casing, typically IP20 rated. Standard mounts (desktop/wall). Consumer ports (HDMI, USB). Passive cooling, fixed voltage (110/220V AC).

2. Display Performance

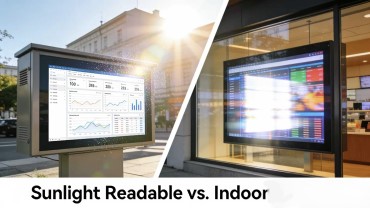

♦ Industrial LCD Panels: Ultra-wide brightness range (200-3000+ nits) with anti-glare treatment for sunlight readability. Focus on color accuracy (e.g., for medical imaging) and stability across temperatures. Configurable response times (1ms to 10ms+).

♦ Commercial LCD Panels: Moderate brightness (300-500 nits), can wash out in glare. Prioritizes vibrant colors and wide gamut for media. Response times ~5-8ms (higher for gaming).

3. Environmental Toughness

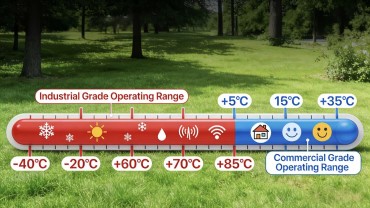

♦ Industrial LCD Panels: Wide operating temperature (-20°C to 60°C, special units: -40°C to 85°C). EMC certified for noise immunity. Reinforced components resist shock/vibration.

♦ Commercial LCD Panels: Narrow temperature range (5°C to 35°C). Not designed for harsh EMI/vibration. For stable indoor use only.

How to Choose the right TFT LCD Displays?—— Match Your Application

Choose Industrial-Grade TFT LCD Displays Without Hesitation If Your Equipment Is For:

◊ Factory Floors: CNC control panels, PLC HMIs, robot teach pendants etc.

◊ Outdoor/Harsh Environments: Transportation signage, construction vehicle cabins, cold chain logistics etc.

◊ Mission-Critical Uses: Medical diagnostic devices, power grid controls, oil & gas (potentially explosive) etc.

◊ 24/7 Operation: Control rooms, server monitoring stations.

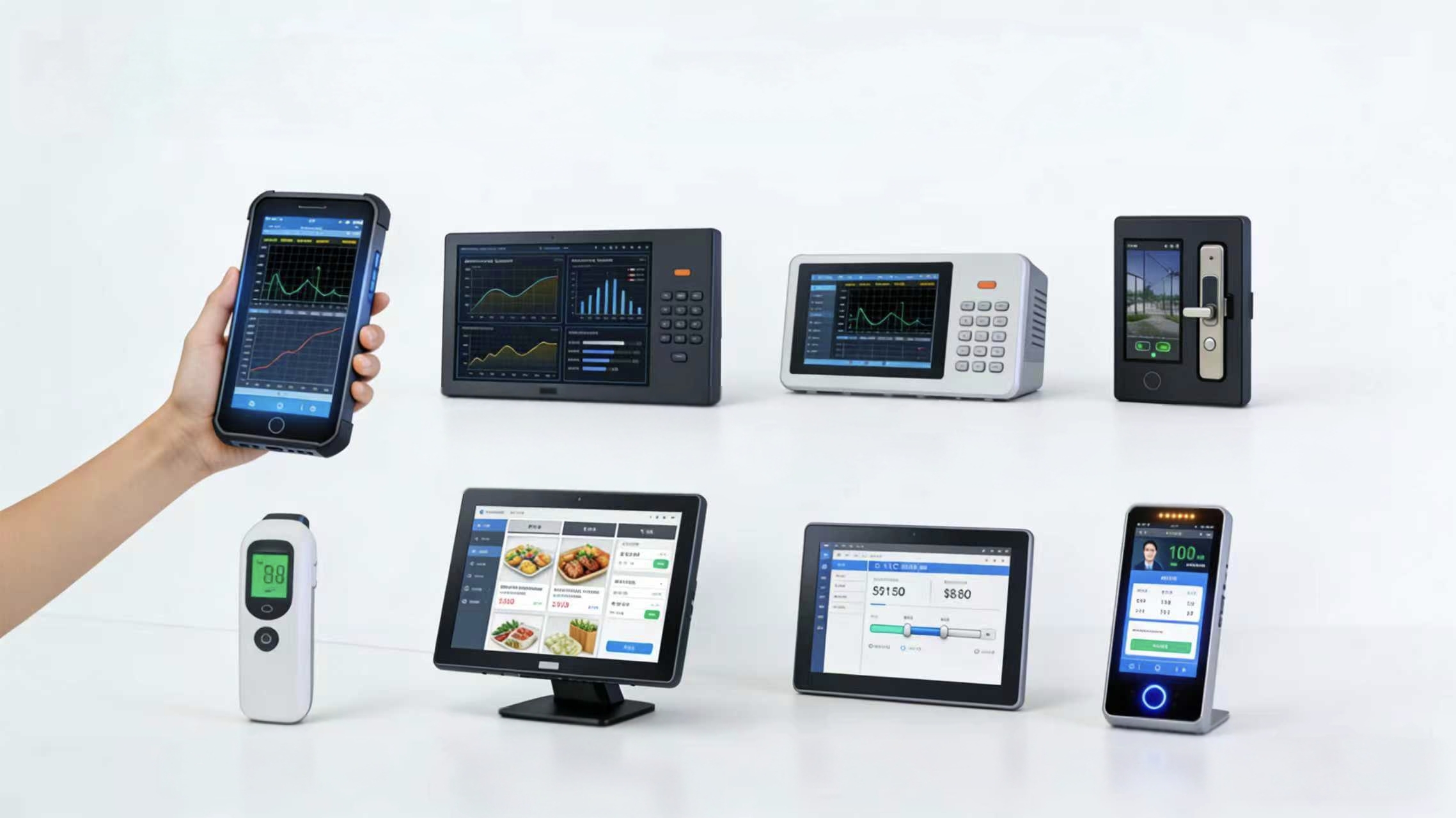

Commercial-Grade TFT LCD Display Is the Cost-Effective Choice For:

◊ Indoor Digital Signage: Mall ads, interactive kiosks, menu boards etc.

◊ Office Settings: Conference room displays, desktop monitors, lobby info screens etc.

◊ Consumer/Retail: Home TVs, in-store promotions, restaurant ordering systems etc.

◊ General intermittent use in controlled environments.

Your 3-Step Selection

Step 1: Assess Your Operating Environment

Ask:

• Temperature: Will it operate outside 5-35°C?

• Humidity/Contaminants: Is there moisture, dust, oils, or corrosive chemicals?

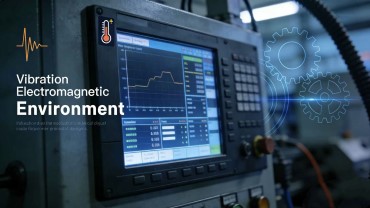

• Vibration/EMI: Is there nearby heavy machinery or strong electromagnetic noise?

• Lighting: Is it in direct sunlight or bright outdoor light?

If YES to any, an industrial TFT LCD panel is strongly recommended.

Step 2: Assess Your Usage Intensity

• Runtime: Must it operate continuously, 24/7?

• Longevity: Is a 5w hours service life critical?

• Power Constraints: Is it battery-powered or highly power-sensitive?

If YES to the first two, industrial-grade TFT LCD display is the reliable choice.

Step 3: Define Your Display Requirements

• Critical Data vs. Rich Media: Showing sensor readings/medical images or playing marketing videos?

• Single Operator vs. Team Viewing: Direct front viewing or wide viewing angles needed?

• Touch Needed? Will users wear gloves? Is the environment wet/dirty? (Industrial: IR/Resistive. Commercial: Capacitive).

• Special Integration? Need specific interfaces (LVDS), embedded mounting, or explosion-proofing?

If YES appears twice, industrial-grade TFT LCD display is the right answer.

Why Partner with HXD for TFT LCD Displays?

In the field of industrial and commercial displays, choosing a reliable LCD panels is only the first step. What you truly need is a trusted partner who can provide complete services—from professional selection and flexible customization to ongoing technical support. This is precisely where Zhengzhou Hengxinda Technology Co., Ltd. adds value.

Our Core Strengths:

♦ Professional Focus: Deeply rooted in the industrial TFT LCD displays, we possess profound insights into complex application scenarios ranging from factory automation and medical equipment to outdoor high-brightness TFT LCD displays and rail transportation.

♦ Reliable Products:We offer a comprehensive series of industrial LCD modules, touch screens, and complete units. Our products strictly adhere to industrial-grade standards, featuring wide temperature operation, shock resistance, high brightness, and long lifespan—ensuring stable performance in mission-critical applications.

♦ Strong Customization Capabilities: Whether it involves special dimensions, interface specifications, optical bonding (such as anti-glare or wide-view treatments), structural modifications, or system integration, we provide deeply flexible customization services to ensure the display unit integrates seamlessly into your equipment and systems.

If after reading this article, you still have questions about selecting the most suitable display solution for your project, or if you are facing unique display technology challenges, the professional team at HXD is always ready to assist you.
