In the selection of mid-to-high-end industrial LCD display panels, the 17.3-inch size has always been the golden ratio that balances the optimal active area with equipment integration. It is widely used in medical imaging, precision inspection, heavy-duty industrial automation, and professional broadcasting.
However, R&D engineers and procurement managers have long faced a dilemma when searching for the perfect 17.3-inch TFT LCD panel:
• Standard 4K industrial LCD displays offer ordinary image quality, low contrast, and poor color accuracy, failing to meet professional visualization needs.
• Top-tier Mini LED panels deliver stunning performance but come with ultra-high costs, making mass production financially unfeasible.
• Consumer-grade LCD panels boast attractive specs, but their short lifecycles and lack of industrial-grade reliability lead to high maintenance costs and sudden EOL risks.

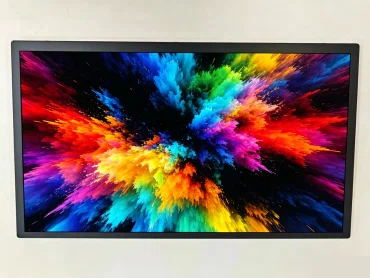

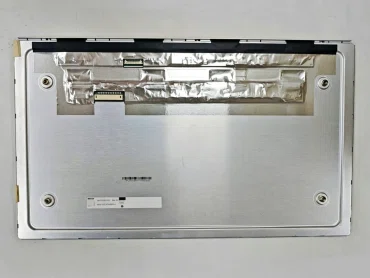

As a professional supplier in the industrial electronics sector, our technical team has found the perfect industrial LCD display: Innolux GK173VB-01B. Belonging to Innolux’s premium GK industrial line, GK173VB-01B features a 1440-zone Mini LED backlight, UHD 4K resolution, 95% DCI-P3 wide color gamut, and true industrial-grade wide temperature reliability. With a built-in LED driver and standard eDP interface, it reduces R&D costs. It delivers a near-professional display experience at a mid-range price point, making it the most cost-effective investment in the 17-inch industrial LCD display market today.
Innolux GK173VB-01B entered official mass production in Q4 2025. It features a long product lifecycle (more than 5 years), ensuring stable, long-term supply for industrial projects.
| Specification | Technical Details | Commercial & R&D Value |
| Basic Type | 17.3-inch; LTPS TFT-LCD; 16:9 | LTPS technology delivers finer image quality and lower power consumption. Industrial stability vastly outperforms traditional a-Si panels. |
| Resolution | 3840(RGB)×2160, UHD 4K, 255 PPI | Ultra-high definition with razor-sharp details. Perfectly optimized for medical imaging and precision AOI inspection. |
| Backlight | Direct-light Mini LED; 1440 Dimming Zones; Built-in LED Driver Board; Lifespan: 30,000 Hrs (Min.) | Local dimming dramatically enhances contrast. The built-in original driver eliminates the need for external backlight boards, saving R&D time. |
| Optical Performance | Typ. Brightness: 1420 cd/m²; Native Contrast 1100:1; Dynamic Contrast 12000:1; Full View Angle: 85/85/85/85 | Ultra-high brightness ensures a true sunlight-readable display for outdoor environments. No color shifting at extreme angles. |
| Color Performance | 16.7M colors (8-bit), 95% DCI-P3, 100% sRGB, 91% Adobe RGB, Color Temp: 6485K | Professional-grade wide color gamut with precise color accuracy. Fully meets medical diagnostic standards. |
| Reliability | Operating Temp: -20 ~ 70°C; Storage Temp: -30 ~ 80°C; RoHS Compliant | Built for extreme hot and cold environments. Ideal for outdoor kiosks, factory floors, and marine applications. |
| Signal Interface | eDP (4 Lanes), eDP 1.4 protocol, 30-pin connector | Mainstream industrial interface compatible with most controller boards, minimizing replacement and adaptation costs. |
| Mechanical Design | Outline: 406×239 mm; Max Thickness: 13.77mm; Weight: 1.15Kg (Max); 4-M3 rear post mounting | Standard industrial dimensions with a slim, lightweight layout tailored for compact or portable devices. |
| Electrical Specs | Logic Input: 3.3V (Typ.); Backlight Input: 8.5±0.5V; Max Power: 33.4W | Low-power design reduces overall system thermal load and long-term operating costs. |
While there are many 17.3-inch industrial LCD panels on the market, our engineering analysis shows that Innolux GK173VB-01B offers the best balance of performance, reliability, integration cost, and procurement budget.
Most mid-range 17.3" industrial LCD displays adopt edge-lit LED backlights, which suffer from low brightness, poor uniformity, and washed-out blacks. Innolux GK173VB-01B features 1440 independent local dimming zones. This local dimming technology achieves an incredible 12,000:1 dynamic contrast ratio. Dark fields are pure black with zero light leakage, while bright fields remain vivid and crisp. With 1420 nits of high brightness, this sunlight-readable display panel guarantees perfect visibility even under direct outdoor sunlight.
Consumer-grade panels frequently lead to screen flickering, severe brightness degradation, or display failures when exposed to harsh industrial environments. As an original and rugged industrial LCD panel, Innolux GK173VB-01B is engineered for harsh conditions:
♦ Wide Temperature Adaptability: Operating from -20°C to +70°C, it guarantees fast boot-ups in cold weather and stable performance in high-temperature environments.
♦ Long-Lasting Backlight: The Mini LED backlight is rated for a minimum of 30,000 hours. In 24/7 continuous operation scenarios, its brightness decay is significantly slower than that of standard edge-lit LCD display panels.
Innolux designed GK173VB-01B to minimize integration difficulty:
♦ Built-in LED Driver Board: The backlight driving circuit is fully integrated into the panel. R&D teams do not need to design or purchase a separate backlight driver board, instantly reducing BOM costs and shortening development cycles.
From a procurement perspective, the cost advantages of Innolux GK173VB-01B are highly compelling:
♦ Compared to top-tier professional Mini LED panels, its price is 30% to 40% lower, yet it delivers matching performance in resolution, gamut, and brightness.
♦ Compared to basic 17.3" 4K industrial LCD displays, the cost is only about 20% higher, but it provides an immediate premium upgrade with Mini LED technology, giving your final product a massive competitive edge.
With its unique combination of "17.3-inch 4K + Mini LED + Industrial Reliability + High Cost-Effectiveness," Innolux GK173VB-01B brings great value to many specific markets

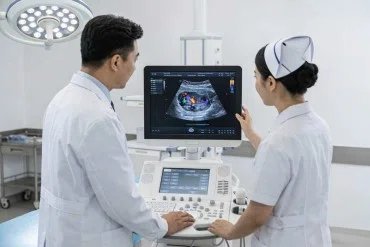

Portable ultrasound machines, patient monitors, In Vitro Diagnostic equipment, medical aesthetic visualization devices, dental imaging systems, and telemedicine terminals etc.
Value: The 4K high resolution and professional wide color gamut keep medical images clear with accurate colors, helping doctors make precise decisions

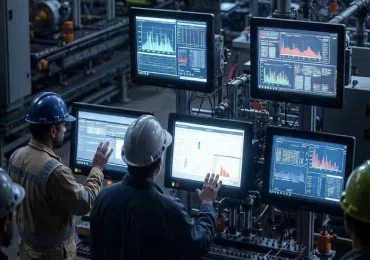

Machine vision inspection systems, high-end HMI panels, precision measuring instruments, semiconductor inspection stations, all-in-one industrial PCs, and AOI display screens etc.
Value: The 1440-zone local dimming and high contrast show dark and bright details clearly, boosting defect detection accuracy
Broadcast monitors, professional switcher display screens, live streaming all-in-one machines, professional video production terminals, and radio/TV editing gear etc.
Value: The 95% DCI-P3 wide color gamut and 100% sRGB coverage offer highly accurate color reproduction, meeting professional content creation standards

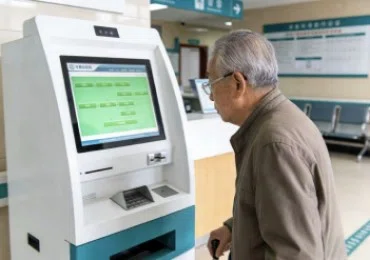

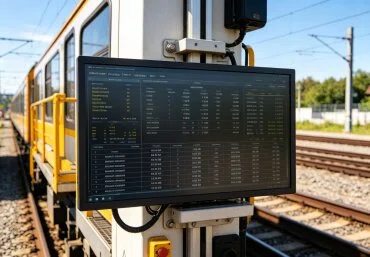

Outdoor self-service kiosks, special vehicle center consoles/monitoring screens, port/mining area control terminals, security monitoring consoles, and vehicle-mounted emergency command displays.
Value: The 1420-nit ultra-high brightness allows excellent sunlight-readability, solving the common outdoor issue of screen glare
High-end conference tablet secondary screens, smart interactive terminals, premium digital signage, smart education all-in-one whiteboards, and commercial display terminals.
Value: 4K HD image quality combined with a wide color gamut makes display content look vivid and sharp
Q1: What is the difference between transmissive contrast and local dimming contrast?
A: The 1100:1 figure represents the panel's native transmissive contrast—its baseline contrast specification. The 12,000:1 figure represents the dynamic contrast achieved when the 1,440-zone Mini LED local dimming feature is enabled. By independently controlling the brightness of LEDs in each zone—dimming or turning off LEDs in dark areas while maintaining high brightness in light areas—the image's contrast range is significantly enhanced, resulting in purer darks and clearer, more luminous bright areas.
Q2: Can Innolux GK173VB-01 be paired with a touch solution?
A: Yes, it is compatible with various industrial-grade touch screens, including capacitive and resistive touch panels. We can provide a complete "display panel + touch assembly" package to meet equipment integration needs through a one-stop solution.
Q3: Does replacing an existing 17.3-inch screen require major structural or hardware modifications?
A: Innolux GK173VB-01B features standard 4-M3 rear-mount posts and the industry-standard eDP 1.4 signal interface; its physical dimensions comply with general specifications. However, differences in external dimensions or internal structure may affect implementation. We recommend contacting our engineering team for detailed advice.
Q4: What is the supply stability and product lifecycle of Innolux GK173VB-01B?

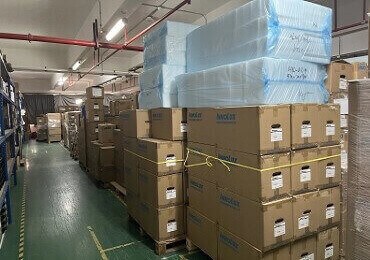

A: GK173VB-01B is a key industrial model in Innolux’s GK series. It entered mass production in Q4 2025 and is currently in stable production; stock is readily available for small-batch sampling, and large orders can be fulfilled immediately. Industrial panels typically have a product lifecycle of at least five years, ensuring long-term supply stability and avoiding the repeated R&D costs associated with frequent model changes.
Q5: What are the practical advantages of the built-in LED driver board?
A: With the LED backlight driver circuit integrated directly into the panel by the manufacturer, customers do not need to design or procure a separate backlight driver board; the unit operates simply by connecting the power supply to the backlight. Practical advantages include: a reduced BOM and lower material costs; a shortened R&D cycle, eliminating the need for backlight driver circuit design and debugging; and factory-calibrated backlight performance, ensuring superior brightness uniformity, stability, and consistency.
In the modern B2B market, upgrading your display quality is one of the fastest ways to build product differentiation. The true value of the Innolux GK173VB-01B lies in: Mini LED picture quality, exceptional sunlight readability, industrial longevity, and low integration friction.
As an established supplier specializing in industrial LCD displays, we maintain a close relationship with the original factory supply line.
How We Can Help Your Project:
Original PDF Datasheet Download: Get access to detailed technical specifications.
Samples for Prototype Testing: Quick sample shipping to accelerate your R&D cycle.
Complete Touch Display Assembly: One-stop integration of display + touch screen + driver board solutions.
Ready to upgrade your equipment with Innolux GK173VB-01B? [Contact Our Industrial Display Experts Today] to get a fast quote and technical support!
