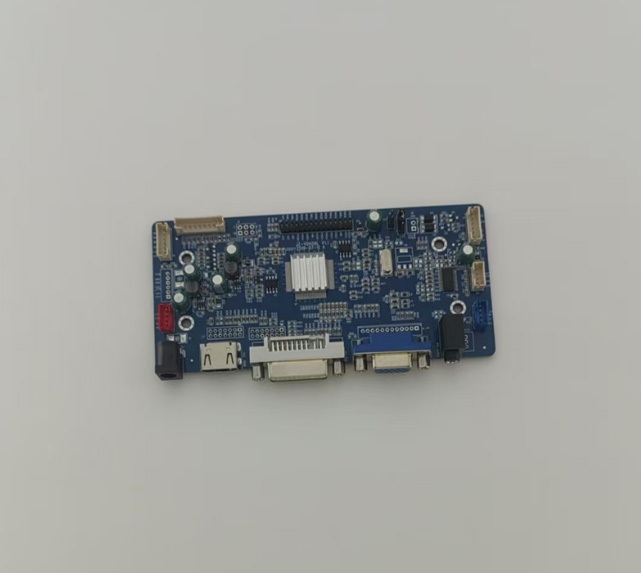

This driver board is mainly used to support TFT LCD screen. The driver board has 1 VGA and 1 DVI interface and 1 HDMI interface. It supports LVDS output interface. Motherboard uses Mstar signal processing chip, processing powerful, can support a variety of specifications of standard and non-standard signals. Use high specification devices with good working performance.
Operating temperature range-20 to 65℃
* Optional addition of automatic photosensitive control
* Supports maximum resolution up to 1920x1200
* Can receive remote control function
* Basic resolution is supported to 85Hz (if the LCD screen used can work at 85Hz)
* Support ADJ/PWM software dimming control,(no hardware cooperation is required)
| PCB board thickness | 1.60 mm |
| Total height | 15.0 mm |

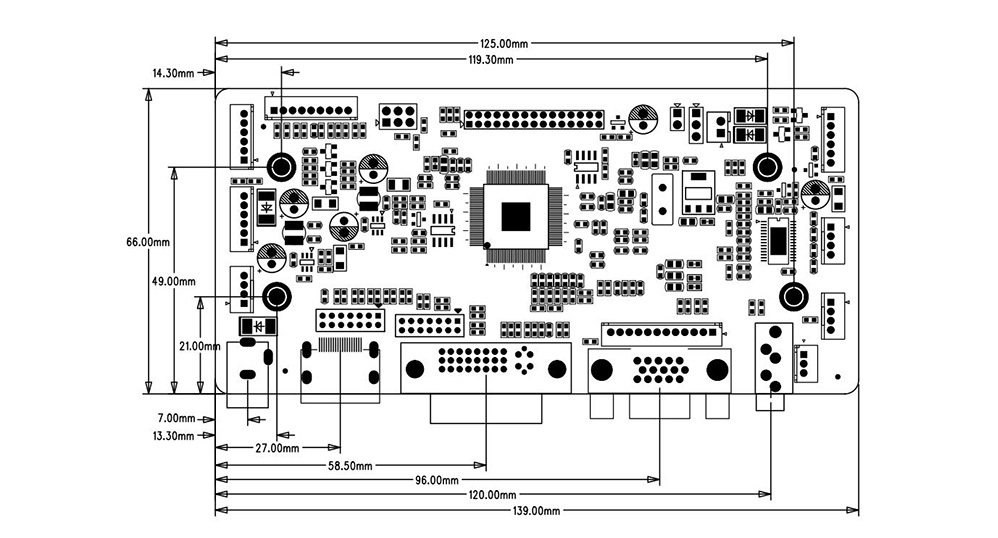

| size Size | 139.0 x 66.0 mm |
