White LED Backlight, 3 in 1 FPC, Value IA, Only sell in China market.

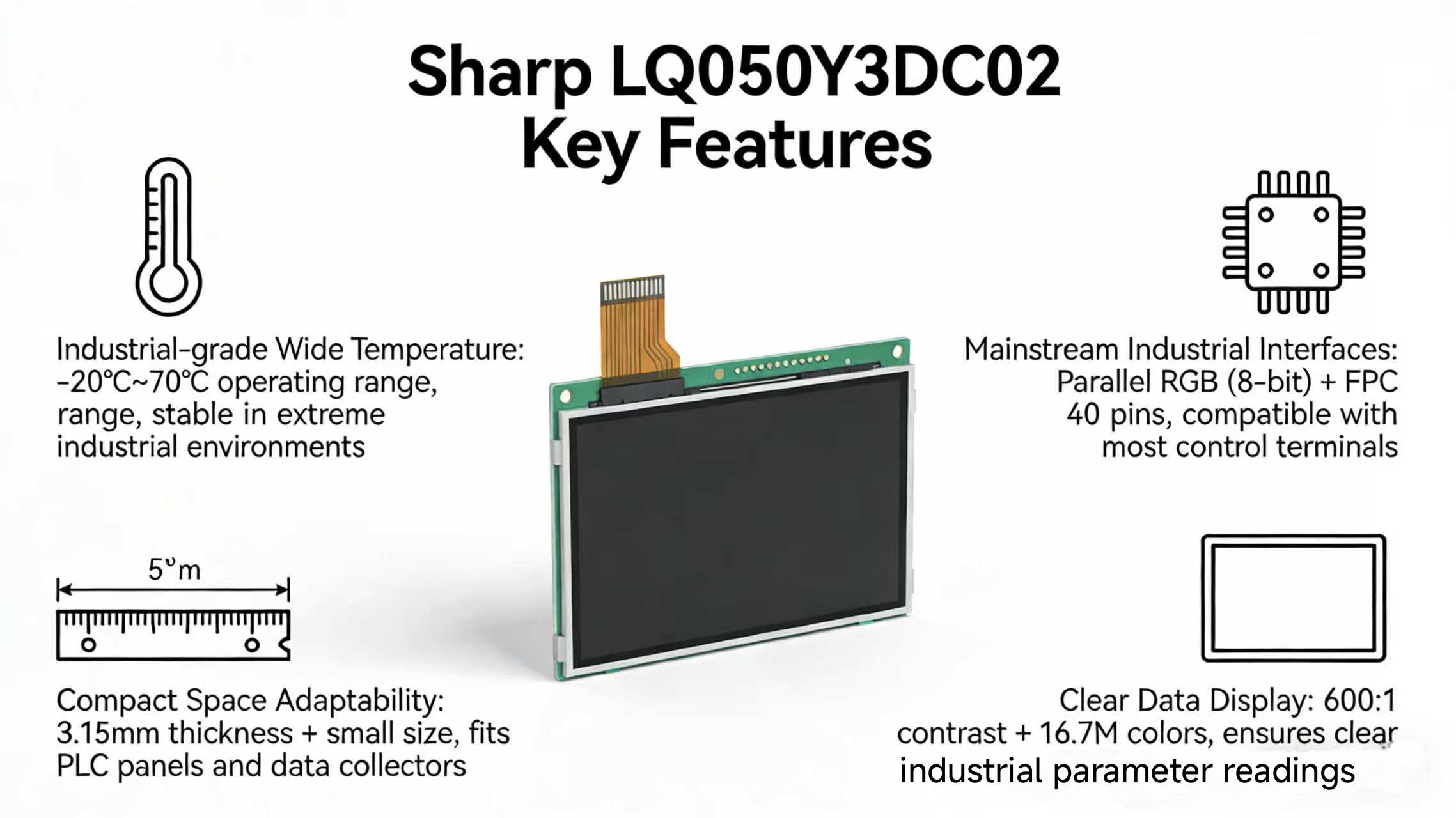

Sharp LQ050Y3DC02 is a 5-inch a-Si TFT-LCD panel specially designed for industrial control scenarios. It features a wide operating temperature range of -20°C to 70°C, making it suitable for complex working conditions in workshops and warehouses. With a contrast ratio of 600:1 and 16.7 million colors, it clearly presents device parameters and data. Additionally, it is compatible with mainstream industrial control driver solutions through a Parallel RGB interface and has a compact thickness of 3.15mm, allowing it to be embedded in various small terminals.
Brand
Sharp
Type
a-Si TFT-LCD
Model
LQ050Y3DC02
Surface Finish
---
Size (inch)
5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
118.5(W)×77.55(H)×3.15(D)
Optical Mode
TN
Active Area (WxH mm)
108(W)x64.8(H)
Backlight Type
7S2P WLED
Viewing Angle
75/75/60/70 (Typ.)(CR≥10)
Interface
Parallel RGB (1 ch, 8-bit) , FPC, 40 pins
Resolution
800(RGB)×480,WVGA,188PPI
Response Time
35 (Max.) (Tr+Td) ms
Brightness (cd/m²)
300
Display Colors
16.7M
Contrast Ratio
600:1
Operating Temperature (°C )
-20~ 70
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30~80
Operating Frequency
60Hz
Weight
TBD

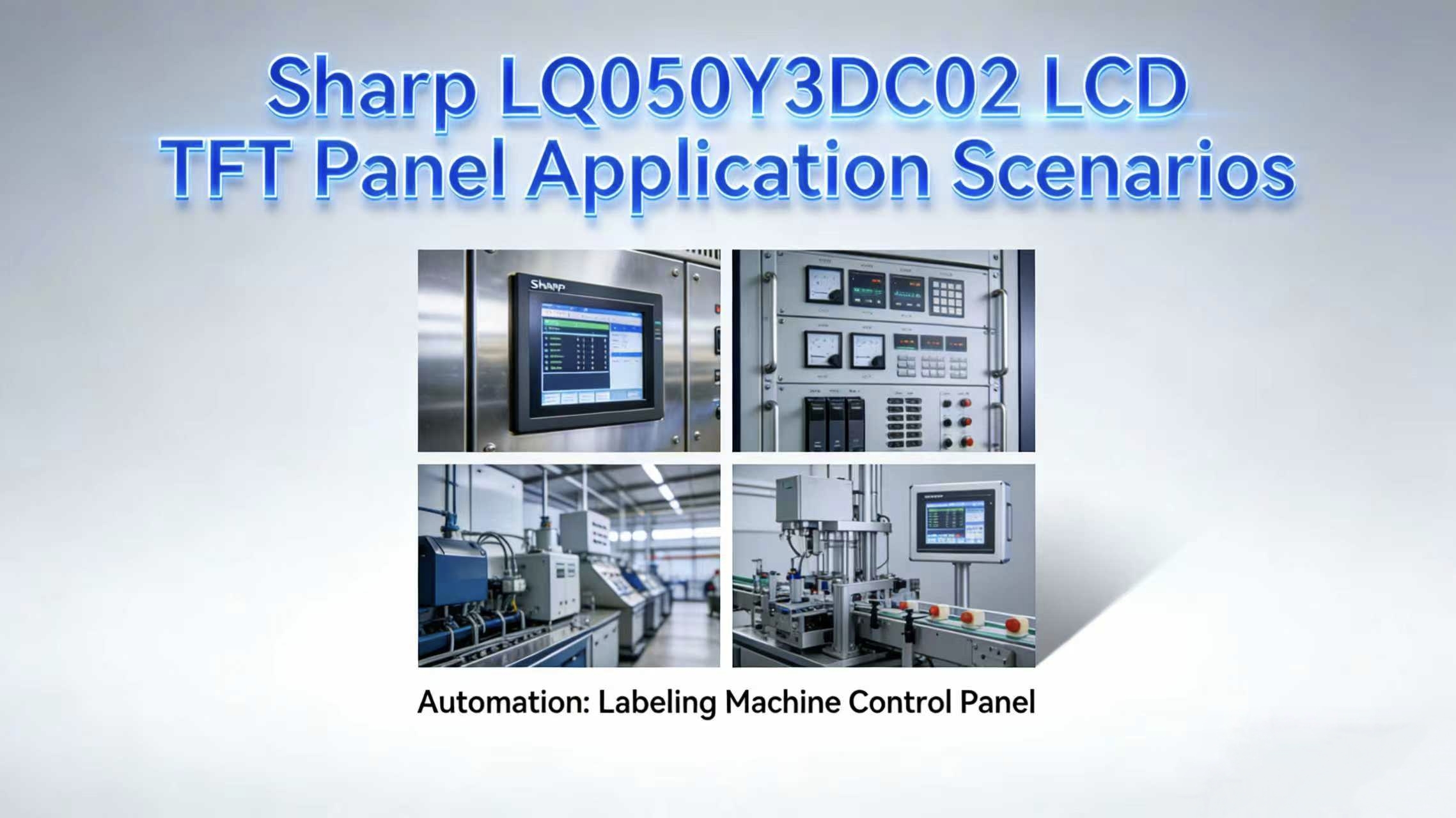

Application
Industrial Control
1. Q: Can the brightness of this screen meet the requirements of industrial indoor environments? A: The 300cd/㎡ brightness is suitable for common industrial indoor settings (such as workshops, control rooms). If a high-light environment is needed, a high-brightness version can be customized. 2. Q: Does the Parallel RGB interface support connection with mainstream PLCs? A: Yes, Parallel RGB is a common interface for industrial control devices, and it can be matched with display drivers of brands like Siemens and Mitsubishi PLCs. 3. Q: Does the product have relevant industrial certifications? A: It has passed RoHS certification, which complies with the environmental protection and safety standards for industrial equipment, and a certification report is available. 4. Q: What is the delivery cycle for bulk purchases? A: For spot orders of 500 pieces or less, the goods will be dispatched within 48 hours. Customized orders for more than 500 pieces have a production cycle of approximately 10 working days. 5. Q: Can samples be provided for compatibility testing? A: A free sample of 1 piece will be provided. The testing period is 7 days, and interface adaptation guidance documents are also available.
