LQ190E1LX51

Ultra-high Brightness, White LED Backlight, Lifespan exceeding 50,000 hours, Includes LED Driver, Flip-chip Terminals, Embedded Cooling Fan for Backlight.

Download PDF Send Message

Basic Parameters

Brand	Sharp	Type	a-Si TFT-LCD
Model	LQ190E1LX51	Surface Finish	Clear，Hard coating
Size (inch)	19	Pixel Layout	RGB Vertical Strip
Outline Dimension (WxHxD mm)	404.2(W)×330(H)×34(D)	Operating Mode	ASV
Active Area (WxH mm)	376.32(W)x301.056(H)	Backlight Type	WLED
Viewing Angle	85/85/85/85	Interface	LVDS, 30 pins
Resolution	1280x1024 (SXGA)	Response Time	12 (Typ.)(Tr+Td), 8 (Typ.)(G to G) ms
Brightness (cd/m²)	1000	Dispay Colors	16.7M, 72%NTSC
Contrast Ratio	900:1	Operating Temperature (°C )	0~ 60
Operating Voltage	5V	Storage Temperature (°C )	-20 ~ 60
Operating Frequency	60Hz	Weight	2.60Kgs
Application	Industrial Control, Outdoor High Brightness Environment

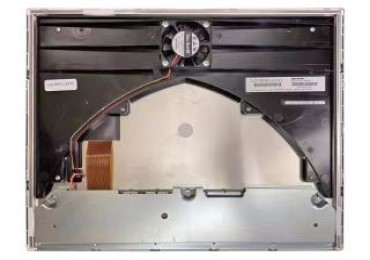

Sharp LQ190E1LX51 Product Real Shot

Why Choose Us?

✅12 Years of LCD Supply Chain Expertise
Since 2013, we’ve specialized in LCD distribution and customization, representing 7 top brands like AUO, TIANMA, and BOE. With over 100,000 panels in stock and 24/7 global shipping, our supply chain is rock-solid and reliable.

✅Backed by 7 International Certifications
ISO 9001/13485/14001, CE, RoHS, and IATF 16949 (in progress) — every shipment includes original test reports, ensuring zero export hurdles.

✅One-Stop Engineering Customization
Our 15-member expert team delivers prototypes in 7 days and mass production in 30. We support IP67 protection, -40~85℃ extreme temps, MIL-STD shock resistance, and sunlight-readable displays.

✅Proven by 3000+ Global Clients
Serving industry leaders like CRRC, Philips Healthcare, and BYD Automotive, we’ve delivered over 3 million flawless panels with zero returns and 95+ NPS satisfaction.

📩 Request Full Free Quotation & Custom Solution Now → Email & WhatsApp & Wechat

FAQ

1. Can the screen meet diagnostic needs?
A: 1280×1024 resolution, with a customizable 1920×1080 HD version available. It delivers precise image detail and is suitable for diagnostic imaging.

2. Can the screen withstand machine tool vibrations and electromagnetic interference in industrial settings?
A: Withstands 1.5G vibration and 10G shock, EMC certified for stable display in strong electromagnetic environments. Suitable for machine tools and industrial control equipment.

3. How is glare addressed in bright light conditions?
A: The screen surface features an AG anti-glare coating with a reflectance rate ≤0.5%, eliminating glare and eye strain under intense light.

4. What is the product warranty period?
A: One-year warranty for the entire unit with MTBF ≥50,000 hours, ensuring quality assurance. Free repair/replacement within warranty period, with solutions provided within 72 hours and full follow-up support.

5. What aspects does HXD's customization service cover?
A: We support brightness fine-tuning, interface additions/removals, exterior dimension optimization, touch functionality upgrades, etc. Batch customization cycles range from 7-15 business days for rapid implementation of requirements.

6. Do you offer logo customization?
A: Yes! Brand logos can be printed on the casing or the screen's startup screen. Please provide the logo source file.

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
Sharp	LQ190E1LW72	19"	1280×1024	350 nits	1500:1	WLED	LVDS	30	-20~70℃
Sharp	LQ190E1LX75T	19"	1280×1024	350 nits	1500:1	WLED	LVDS	30	-20~70℃
Sharp	LQ190E1LX76	19"	1280×1024	470 nits	1500:1	WLED	LVDS	30	-20~70℃
Sharp	LQ190E1LX65	19"	1280×1024	330 nits	1500:1	WLED	LVDS	30	-20~70℃
AUO	G190EG02 V104	19"	1280×1024	350 nits	2000:1	WLED	LVDS	30	-20~70℃
AUO	G190EAN01.0	19"	1280×1024	300 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190EAN01.3	19"	1280×1024	330 nits	1000:1	WLED	LVDS	30	0~50°C
AUO	G190EAN01.5	19"	1280×1024	700 nits	1000:1	WLED	LVDS	30	0~50℃
