LS055R1SX04

Portrait mode, white LED backlighting

Product Description

Sharp LS055R1SX04 is a 5.5-inch display applying CG-Silicon Oxide TFT-LCD technology. Despite its compact size, it features a Quad-HD resolution of 1440 (RGB)×2560, with a fine display capability of 537PPI that far exceeds the detail of normal LCD tft screens. Additionally, it offers a brightness of 450cd/m² and a contrast ratio of 1300:1, presenting clear and vivid colors even in a wide temperature range of -20 to 60°C, thus breaking the limitations of small-sized screens in terms of display effect and environmental adaptability.

Basic Parameter

Brand	Sharp	Type	CG-Silicon Oxide TFT-LCD
Model	LS055R1SX04	Surface Finish	---
Size (inch)	5.5	Pixel Layout	RGB Vertical Strip
Outline Dimension (WxHxD mm)	70.94(W)×128.49(H)×1.45(D)	Optical Mode	New Mode2
Active Area (WxH mm)	68.04(W)x120.96(H)	Backlight Type	8S2P WLED
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Interface	MIPI (4 data lanes), 50 pins
Resolution	1440(RGB)×2560,Quad-HD,537PPI	Response Time	35 (Max.) (Tr+Td) ms
Brightness (cd/m²)	450	Display Colors	16.7M, 70%NTSC
Contrast Ratio	1300:1	Operating Temperature (°C )	-20~ 60
Operating Voltage	1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)	Storage Temperature (°C )	-30~70
Operating Frequency	60Hz	Weight	25.0g
Application	Smart Phone/HMD VR AR/3D Printer

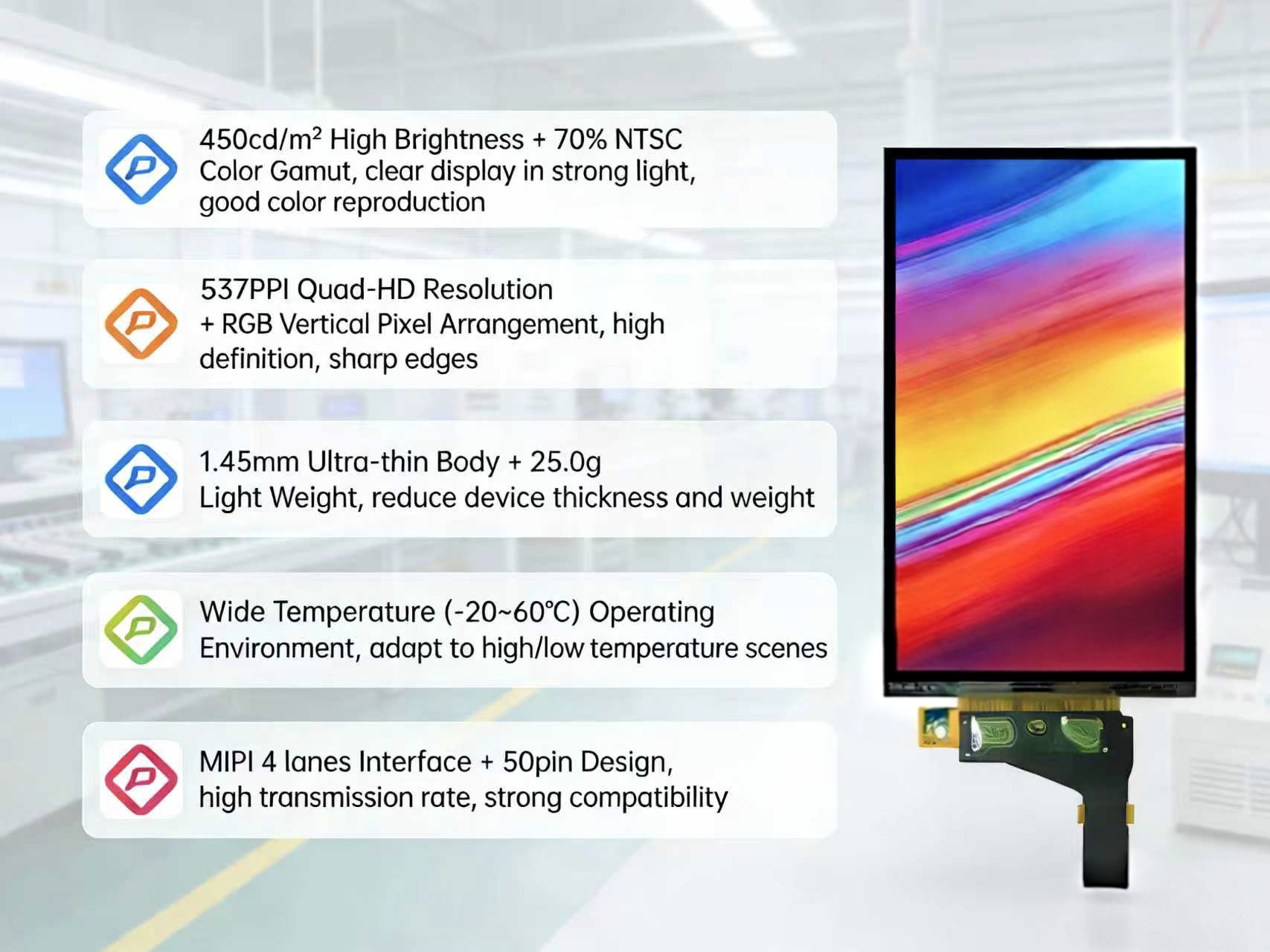

Sharp LS055R1SX04 TFT LCD Panel Key Features

Sharp LS055R1SX04 TFT LCD Panel Application Scenarios

HXD Service

For Sharp LS055R1SX04 LCD tft display, HXD can provide the following services:

Sample support: Provide small batch samples for you to conduct terminal product adaptation tests.

Batch supply: Stable production capacity guarantee, supporting your large-scale mass production needs.

One-stop shopping: HXD offers touch screens, LCD control boards, light-sensors, cables and other related parts and accessories.

After-sales service: Provide 7×24-hour technical consultation and fault troubleshooting support for problems during product use.

Technical collaboration: Assist you in completing the interface and driver debugging of the lcd screen and the terminal device.

Customized service: Parameters such as brightness, interface, size, shape, resolution, etc. can be customized. Samples will be available within 7 to 10 days.

FAQ

1. The response time of LCD screen is 35ms. Will it affect the smoothness of the smartphone's display?
A: 35ms is the maximum response time. In actual daily use, there won't be obvious flickering. If used in high frame rate gaming scenarios, it can be further optimized by combining with the terminal's dynamic compensation technology.

2. Do you support custom interfaces or adjustment of screen parameters?
A: According to your batch requirements, we can customize the interfaces and some parameters (please communicate the details of the requirements in advance).

3. How long is the delivery cycle for bulk purchases?
A: The delivery cycle for regular orders is 15-20 working days. For urgent orders, it can be coordinated to be compressed to within 10 working days.

4. What is the backlight lifespan of the LCD screen?
A. The 8S2P WLED backlight used has a typical lifespan of up to 50,000 hours (brightness drops to 50% of the initial value), meeting the lifecycle requirements of the terminal product.
