Size: 12.1 inch
Available Brightness: 750~2000 nits (customizable)
Available Interface: LVDS / eDP / VGA / HDMI / DVI.
Available Resolution: 800×600 / 1024×768 / 1280×800, etc. (customizable)
Available Touch Panel: Resistive touch panel, Capacitive touch panel, and Infrared touch panel. Available Bonding Service: Frame Bonding / Full Bonding

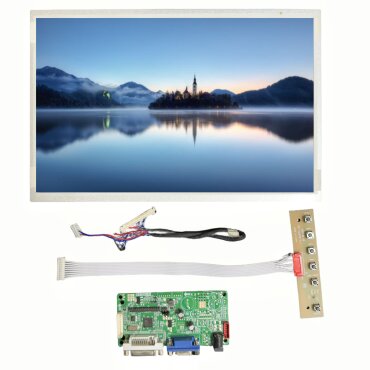

Available Accessories: LCD Controller Board, OSD Rotary Knob Cable, OSD Keyboard, Light Sensor Cable, Custom Cables, etc.
12.1-inch industrial high-brightness LCD screen is a mainstream LCD display panel size currently across application such as industrial automation, in-vehicle equipment, outdoor terminals, intelligent industrial control systems, and instrumentation. 12.1-inch sunlight-readable LCD panels we supply are sourced exclusively from the world's leading manufacturers—such as AUO, Innolux, BOE, IVO, Sharp, Tianma, and Kyocera.
We have compiled a table below listing the models and key specifications of our currently in-stock high-brightness display panels to facilitate your review and comparison. Our outdoor sunlight-readable panels feature original, industrial-grade "Grade A" LCD display modules equipped with high-brightness backlighting as a standard feature; this ensures that screen content remains clearly visible even under intense outdoor sunlight, in brightly lit workshops, or in backlit environments.
These high-brightness display panels are engineered with an industrial-grade wide-temperature architecture, enabling them to withstand complex operating conditions—including extreme cold, high-temperature server rooms, dusty environments, and minor vibrations—while supporting continuous, uninterrupted 24/7 operation.
Standard options are available for resolution, interface type, and brightness levels; these high brightness panels are compatible with mainstream motherboard interfaces—such as LVDS and eDP—and are adaptable to various LCD driver boards, allowing for direct integration into mechanical equipment.
Table 1 12.1-inch outdoor high brightness LCD display panel product list
Brand
Model
Brightness
(nits)
Resolution
Contrast Ratio
Backlight
Interface
Pins
Operating Temperature
Active Area
Outline Dimension
Production State
Kyocera
TCG121WXGLPAPC*-AC50-S
750
1280×800
1000:1
4 strings WLED
LVDS (1 ch, 6/8-bit)
20
-30~80℃
261.12(H)×163.2(V)mm
303(H)×205(V)×14.5(D)mm
Out of Production
TCG121SVLPJANN-AN50
800
800×600
7S3P WLED
LVDS (1 ch, 8-bit)
30
-20~70℃
246×184.5(H×V)mm
278.3×207.5×10(H×V×D)mm
In Production
Tianma
P1210XGF1MA01
1024×768
8S4P WLED
245.76(H)×184.32(V)mm
260.5(H)×203(V)×10(D)mm
Innolux
G121ICE-LH1
1000
WLED
278(H)×184(V)×10.5(D)mm
AUO
G121EAN01.2
-30~85℃
278(H)×184(V)×9.94(D)mm
G121XTN02.0
700:1
6S3P WLED
260.5(W)×204(H)×9(D)mm
TCG121WXLPAPNN-AN50-S
750:1
277.7(W)×182.5(H)×10.3(D)mm
P1210WXF2MA01
1100
10S4P WLED
261.12(W)×163.2(H)mm
277.7(W)×180.6(H)×9.2(D)mm
TCG121XGLPBPNN-AN40-TA
1200
245.76×184.32(H×V)mm
260.5×203×10.9(H×V×D)mm
TCG121XGLPCPNN-AN70-TA
TCG121XGLPCPNN-AN70
260.5×203×10.9 mm (H×V×D)
TCG121XGLPBPNN-AN40-S
TCG121XGLPBPNN-AN40
260.5(H)×203(V)×10.9(D)mm
P1210XGF1MA00
1300
7S4P WLED
260.5×203×10(H×V×D)mm
P1210WXF2MA00
1500
11S5P WLED
261.12×163.2(H×V)mm
281.78×183.17×9.76(H×V×D)mm
G121EAN01.3
283(W)×185.1(H)×9.9(D)mm
G121STN02.1
800:1
261.65×203×9(H×V×D)mm
Sharp
LQ121S1LG86
LVDS (1 ch, 6-bit)
-30~70℃
246(H)×184.5(V)mm
276(H)×209(V)×9.6(D)mm
TCG121WXLR*VNN-AN*35
LVDS
283(W)×185.1(H)×11(D)mm
TCG121WXLRFVNN-AN40
283(H)×185.1(V)×11(D)mm
⚠️Note: The product models listed in the table do not represent the full range of 12.1-inch high-brightness LCD screens we offer; we continuously update this list according to current production and inventory status. If you are looking for a specific model that does not appear in the product list, please submit an inquiry to contact us for further details.
12.1-inch high brightness LCD display features high-brightness and high-definition display, wide temperature operation, shockproof and dustproof performance, as well as stable 7×24-hour continuous operation. It adapts to various complex scenarios such as strong indoor light, bright workshop environments, backlight glare, semi-outdoor shaded areas and direct outdoor strong sunlight, and is widely applied in multiple industries and terminal devices.
In the industrial automation industry, it is commonly installed on CNC machine, injection molding machine, packaging and labeling machine and other equipment, delivering clear and stable visual display support for production debugging, parameter setting and real-time operation status monitoring.
In the vehicle and construction machinery industry, it is widely used in cab instrument screens, vehicle-mounted monitoring terminals and other devices, effectively solving the problems of strong light reflection and washed-out, unclear images in the driving cab.
In the instrumentation and testing industry, it is compatible with portable equipment such as desktop oscilloscopes, industrial ultrasonic flaw detectors, and environmental gas & water quality analyzers, providing high-definition and accurate display for precision data observation, fault detection and parameter analysis.
In the medical equipment industry, it is extensively adopted in medical multi-parameter monitors, portable B-ultrasound diagnostic instruments, and clinical laboratory analytical instruments, meeting the professional requirements of clear visibility under strong light and long-term stable operation in medical environments.
In fact, 12.1 inch high brightness display panels have a wide range of industry applications, and our customers use 12.1-inch sunlight-readable LCD panels across various fields. We keep full-spec outdoor high brighntess display in stock and provide one-stop services including brightness customization, interface cable customization, touch screen matching and supporting cable supply. We offer full-process support from model selection and sample testing to bulk supply, helping you save development and test time, and reduce procurement and after-sales costs.
Established in 2013, Zhengzhou Hengxinda Technology Co., Ltd. is a professional supplier and solution provider of industrial LCD displays, touch screens and display accessories in China. With over 10 years of industry experience, we focus on small-to-medium size industrial-grade display panels, including high-brightness display panels, wide-temperature display panels, automotive LCD displays.
We are authorized distributors of well-known brands such as AUO, Innolux, Sharp, IVO and BOE, ensuring stable quality, reliable supply and competitive pricing. Our product range covers 3.5” to 32” industrial LCD display modules, capacitive/resistive touch screens, LCD driver boards and custom display solutions, widely used in industrial automation, CNC machinery, medical equipment, vehicle & construction machinery, instrumentation and outdoor terminals.
We offer one-stop services including brightness customization, interface modification, touch integration, cable matching and technical support, helping customers reduce development time and procurement costs. Committed to “Quality First, Customer Oriented”, we have served hundreds of clients worldwide with stable products, professional support and honest cooperation. We sincerely look forward to becoming your trusted long-term display partner.
Q1. What brightness levels are available for your 12.1-inch high-brightness LCD screens? A: Available brightness levels include 750 nits, 800 nits, 1000 nits, 1100 nits, 1500 nits, and others. We support brightness customization; upon your request, we can produce high-brightness panels ranging from 1500 to 2000 nits.
Q2. What are the common interfaces for your 12.1-inch sunlight readable display screens, and which driver boards are compatible? A: The common interfaces are LVDS and eDP. Our screens are compatible with mainstream industrial driver boards, and we can also adapt to specific interface specifications based on the requirements of your equipment.
Q3. Can you provide matching customized touchscreens, driver boards, and connecting cables? A: Yes, we offer a one-stop customization service package. This includes capacitive or resistive touchscreens, compatible driver boards, and custom cables for various interfaces—all precisely matched to integrate seamlessly with your equipment.
Q4. Do you have stock available for the 12.1-inch industrial high-brightness display panels? What are the lead times for samples and bulk orders? A: We maintain a certain level of inventory for every model; please contact us for detailed information regarding the specific model you require. The lead time for samples is 1–7 working days, while the lead time for bulk orders is 7–15 working days. Lead times for customized models are adjusted according to specific requirements.
Q5. What is the price for the 12.1-inch sunlight-readable display panels you offer? A: The price for each industrial LCD panel is determined based on its production status and the current market availability (stock levels). However, all the industrial LCD panels we supply are sourced directly from original manufacturers and meet Grade A specifications. Our price falls within the lower-to-mid range of the industry; please contact us to obtain a detailed quotation for the specific panel you need.
♦ Brand: HIGGSTEC
♦ Model: T121S-5RBA25N-0A18R0-200FH
♦ MOQ: 1 pcs
♦ Key Technologies:
• High-temperature process
• Bonding technology
• Narrow bezel design
♦ Sample: Paid Sample
♦ Payment Method: T/T, Paypal, Cash, Alipay, Wechat
♦ Important parameters of T121S-5RBA25N-0A18R0-200FH:
3H Pencil, Pressure 750g/45°
Product Manager:
HXD-H58 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI signal for output as LVDS signal. This LCD driver board supports resolutions up to 1920×1080 (FHD). -20℃~+70℃ wide temperature operation. HXD-H58 screen motherboard supports ADJ/PWM software dimming, making it ideal for industrial displays, embedded devices and custom monitor solutions. HXD-H58 screen motherboard is a compact small-size LCD driver board with dimensions of 76mm x 55mm x 15mm, requiring minimal installation space for easy embedded integration.
