HXD-H58 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI signal for output as LVDS signal. This LCD driver board supports resolutions up to 1920×1080 (FHD). -20℃~+70℃ wide temperature operation. HXD-H58 screen motherboard supports ADJ/PWM software dimming, making it ideal for industrial displays, embedded devices and custom monitor solutions. HXD-H58 screen motherboard is a compact small-size LCD driver board with dimensions of 76mm x 55mm x 15mm, requiring minimal installation space for easy embedded integration.
| Model | HXD-H58 |
| Maximum resolution | 1920×1080 (FHD) |
| Mechanical Dimension | 76mm x 55mm x 15mm |
| Operating Temperature | -20~70℃ |
| Input Interface | HDMI |
| Output Interface | LVDS |
| Display output | Maximum resolution | Max:1920x1080 | ||||
| Output Interface | Single/Dual/ LVDS | |||||
| Support signal | Digital HDMI | Horizontal Freq | 30-120KHz | |||
| Vertical Freq | 50-75Hz | |||||
| OSDKeypad | Power,Menu,Exit,Plus,Minus | |||||
| Menu type | Graphical Menu | |||||
| Language support | Supports 8 languages including Chinese and English | |||||
| Function operations | Picture | Mode/Brightness/Contrast | ||||
| FUNCTION | Language/Reset/Color Temp. | |||||
| PC | Clock | Phase | H position | V position | Auto configure | |
| Power | Stand-by | <0.5W 12Vstb/200mA | ||||
| Input | 12V/dc Note1: | |||||
• Mstar signal processing chip
HXD-H58 LCD control board mainboard adopts Mstar high-performance signal processing chip with powerful processing capability, supporting all kinds of standard and non-standard video signals. High-grade components are applied to guarantee stable and reliable long-term operation for industrial, medical and vehicle display equipment.
• Stable operation over a wide temperature range
The screen motherboard supports wide operating temperature range from -20℃ to +70℃. All industrial wide-temperature components ensure stable performance under harsh temperature fluctuation environments, avoiding black screen or abnormal brightness caused by extreme cold or heat.
• Supports up to 1920×1080 Full HD resolution
Max resolution up to 1920×1080 Full HD, which restores clear image details without quality loss. It is compatible with mainstream 10.1~32-inch full HD LVDS LCD display panels, meeting high image definition demands for medical imaging, industrial monitoring and commercial signage.
• Basic resolutions support up to 85Hz refresh rate
All standard resolutions support up to 85Hz (provided the LCD screen in use is capable of operating at 85Hz). Higher refresh rate reduces motion blur for dynamic images, ideal for industrial monitoring, visual inspection and dynamic advertising displays to improve viewing experience.
• Support ADJ/PWM software dimmingMstar signal processing chip
Supports ADJ and PWM software dimming control without extra auxiliary hardware. Brightness can be freely adjusted via the OSD menu, infrared remote control or communication commands from a host computer. The overall structural design is simpler, reducing material and assembly costs associated with additional dimming components.

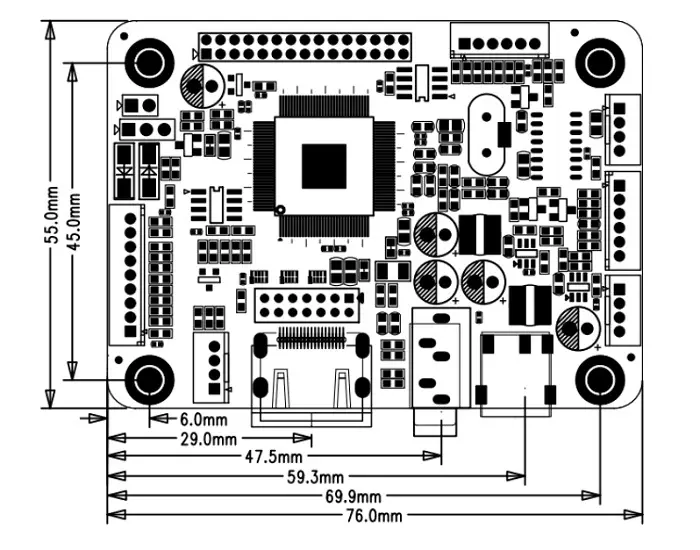

PCB thickness: 1.60 mm
Total height: 15.0 mm
Dimensions: 76.0 x 55.0 mm
1. TFT LCD Display Panel: Available in multiple resolutions up to 1920×1080, LVDS interface, optional 3.3V/5V/12V panel power supply, industrial grade wide-temperature option is available.
2. Touch Screen: Capacitive or resistive touch optional. We customize touch solutions as required, supporting frame bonding or full bonding.
3. HXD-H58 LCD Controller Board: Core drive unit with HDMI input, LVDS output, supports ADJ/PWM software dimming.
4. Backlight Driver Board: Specially matched to screen backlight parameters for stable constant-current backlight drive.
5. OSD Keypad Board and Matching Cables: For on-screen menu adjustment of brightness, contrast, color temperature and source switching. Cable length, connector type, pin assignment, and other specifications can be freely tailored to your device structure. Good cable design helps optimize internal wiring, enhance anti-interference capability, reduce assembly difficulty, and improve production efficiency.
Q1: Which LCD screens are compatible with the HXD-H58 panel driver board?
A: HXD-H58 LCD control board is compatible with TFT LCD displays that operate on 3.3V/5V/12V and feature LVDS or TTL interfaces. Before connecting the LCD screen, please ensure that all components are compatible. Please pay particular attention to the specifications of the LVDS cable used to drive the screen.
Q2: Is this driver board's 30-pin LVDS interface compatible with every 30-pin LVDS LCD screen universally?
A: Not all 30-pin LVDS LCD screens are directly compatible. Only LCD panels with identical pin definitions, signal sequencing and voltage standards can be plugged in directly. For most screens with the same pitch and pin count, the pin definitions must still be checked. They cannot be assumed to be compatible by default.
Q3: Does the HXD-H58 driver board support customization?
A: Features such as the OSD menu, over-temperature protection, dedicated backlighting and special interfaces can be customized, our technical team will develop these as required. Reserved NC interfaces can be enabled upon request. If you have any needs, please provide your detailed specifications and application requirements, and we will create a tailored solution for you.
Q4: Do your LCD display driver boards have a warranty period?
A: Yes, all LCD control boards come with a one-year warranty. Within the warranty period, we provide after-sales maintenance and replacement services for any product quality issues arising under normal operating conditions. We offer free technical support service during this period.
Q5: Can I get a sample before mass production?
A: Yes. Sample testing is available for evaluation and compatibility verification.
HXD-V53 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI, YPBPR and CVBS signal inputs, as well as LVDS and CVBS signal outputs. Supports 1080P full HD multimedia decoding. Optional 2×6W amplifier, or audio transmission via adjustable FM radio for vehicle radio reception. Media intercutting available during playback. True-color image/video boot screen, vertical flip, multi-language OSD and IR remote control supported. HXD-V53 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
| Model | HXD-V53 |
| Maximum resolution | 1920 x 1080 |
| Mechanical Dimension | 132.13mm x 82.13mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 2 CVBS input, 1 VGA input, 1 HDMI/DVI input, 1 YPBPR input, 1 USB (capable of reading high-definition video and images), 1 audio input |
| Output Interface | Dual LVDS output, 1 CVBS output, 1 audio output |
HXD-VDH68 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions up to 1920×1200. HXD-VDH68 LCD control board provides flexible signal conversion from HDMI, VGA and DVI interface to output options including LVDS and eDP. Supports auto dimming, black-and-white display, OSD display & control, multi-language switching and factory mode. HXD-VDH68 LCD display driver board is widely applied to industrial displays, vehicle displays, and medical equipment displays.
| Model | HXD-VDH68 |
| Maximum resolution | 1920 x 1200 |
| Mechanical Dimension | 139mm x 66mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input |
| Output Interface | 2 x 8W speaker output, Dual LVDS output. |
HXD-VD68 LCD panel driver board supports VGA and DVI signal input, and LVDS signal output. HXD-VD68 LCD control board can operate stably within a wide temperature range of -20℃ to +60℃. Supporting resolutions up to 1920×1200. This LCD driver board supports automatic light sensing, black-and-white display, OSD display and control, multi-language options, and factory mode.
| Model | HXD-VD68 |
| Maximum resolution | 1920×1200 |
| Mechanical Dimension | 123mm x 63mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 1 VGA input, 1 DVI input, 1 audio input |
| Output Interface | 1 audio output, Dual LVDS output |
