♦ Size: 4.3 inch
♦ Available Brightness: 400~1150 nits
♦ Available Resolution: 480x272/480x800/800x480, etc. (customizable)
♦ Optional Touch Screen: Resistive Touch Screen (4-Wire/5-Wire)
Capacitive Touch Screen(I²C/USB/RS232), etc.
♦ Bonding Method: Optional Bonding Technology
(Air Bonding (Frame Bonding) / Full Bonding)
| TFT LCD Display | Touch Screen | ||||||||||
| Model | Brand | Brightness (nit) | Resolution | Interface | Active Area | Operating Temperature | Resistive Touch Screen | Capacitive Touch Screen | |||
| 4-wire | 5-wire | I2C | USB | RS232 | |||||||
| AT043TN25 V.2 | Chimei | 500 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| AT043TN24 V.7 | Innolux | 500 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ |
|
|
|
|
| G043FTN01.0 | AUO | 550 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| A043FTN03.0 | AUO | 400 | 480×272 | TTL | 95.04(W)×53.856(H) mm | 0~ 60 °C | √ | Customizable | √ | √ |
|
| A043FAN01.0 | AUO | 400 | 480×272 | LVDS | 95.04(W)×53.856(H) mm | -10 ~ 60 °C | √ | Customizable | √ | √ |
|
| TM043NDH02-40 | Tianma | 400 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| TM043YDHG30-41 | Tianma | 450 | 480×800 | TTL | 56.16(W)×93.6(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| COG-VLSZT114-01 | BOE | 1150 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -40 ~ 85 °C | √ | Customizable | √ | √ |
|
| ZT043WQM-N10 | BOE | 400 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| TCG043WQLBAANN-GN50 | Kyocera | 800 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| TCG043WQLBAAFA-GA50 | Kyocera | 640 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ |
|
|
|
|
| M043GW32 R0 | IVO | 550 | 480×272 | TTL | 95.04(W)×53.856(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ |
|
| HXD04305BEI40-12A | HXD | 500 | 800×480 | RGB | 95.04(W)×53.86(H) mm | -20 ~ 70 °C | √ | Customizable | √ | √ | |

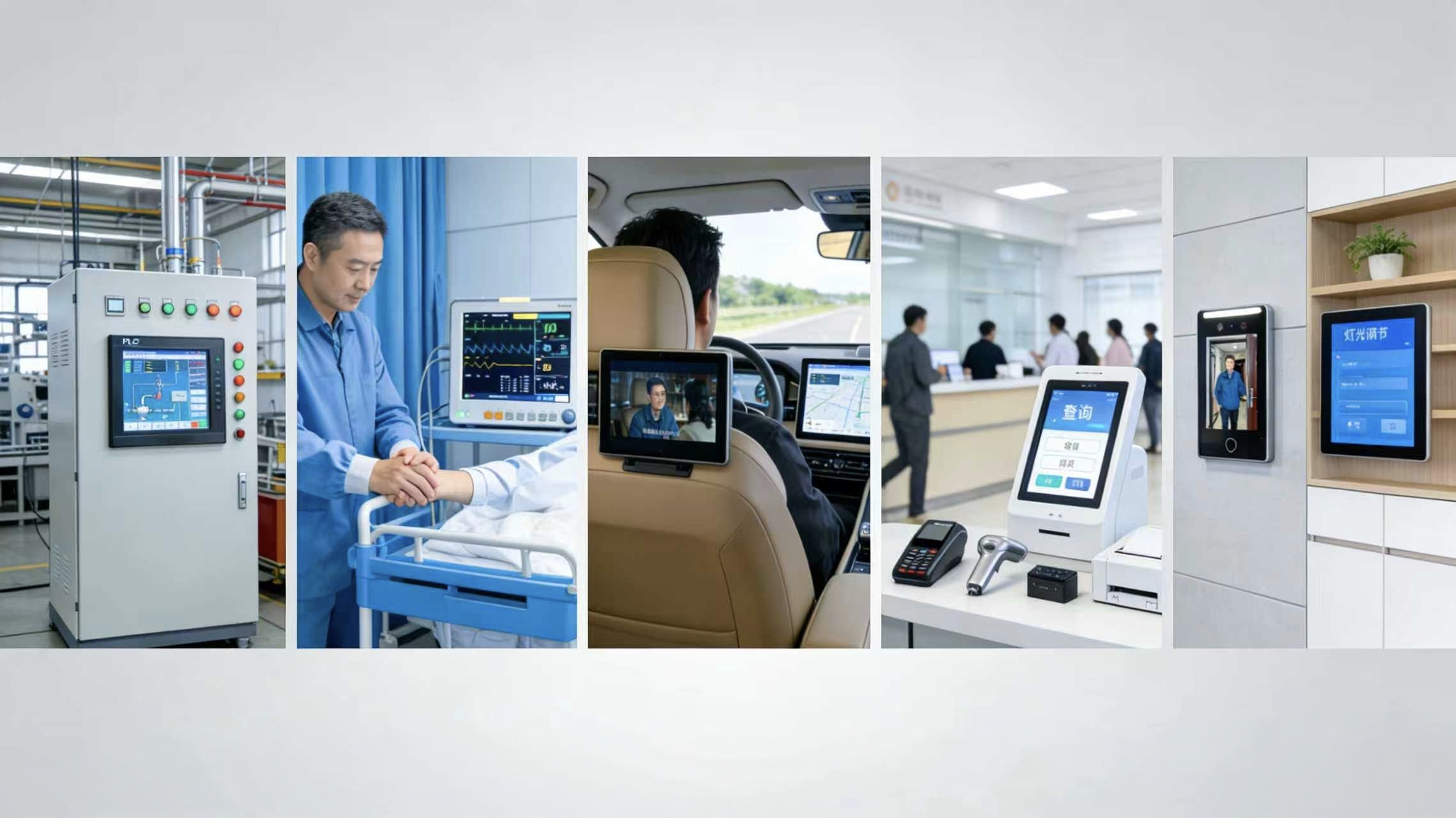

The 4.3-inch LCD touch display kit is widely used in small industrial control panels, industrial control HMI, intelligent instruments and meters, display terminals of portable testing equipment, supporting screens for portable cash registers, indoor units of building intercom systems, touch control panels for access control systems. It is also suitable for vehicle-mounted auxiliary displays, control screens of engineering machinery cabs, display interfaces of portable medical testing equipment, as well as touch screens for small office attendance machines and time recording devices.
Q1: What are the main differences between resistive and capacitive touch solutions for the 4.3-inch industrial display kit?
A: Resistive touch supports operation with gloves or stylus, has strong anti-interference, low cost and single-point touch. Capacitive touch supports multi-touch, smooth feel and fast response, but is not resistant to water or thick gloves.
Q2: Can the 4.3-inch display kit be used in outdoor environments?
A: Yes. Our high-brightness (1150 nits) LCD panel models are equipped with anti-ultraviolet, and waterproof and dustproof design, which can be used stably in outdoor environments such as vehicle-mounted systems, outdoor terminals, and engineering machinery, ensuring clear visibility in strong light.
Q3: What interfaces are supported by the 4.3-inch industrial display kits?
A: Most models use TTL interfaces , compatible with industrial equipment, portable terminals, and vehicle-mounted hardware. LVDS interfaces (e.g., AUO, BOE, IVO series), suitable for industrial control and outdoor terminals.
Q4: Can the 4.3-inch industrial display kit be customized??
A: Absolutely. We support customization of 4.3-inch LCD touch screens, including touch solution (resistive/capacitive), brightness and interface, to meet the personalized needs of industrial control, portable devices, medical equipment, and other fields.
Q5: What is the warranty period?
A: The entire LCD panel is covered by a 12-month free warranty. If a faulty LCD panel is shipped back and our inspection confirms no human damage (e.g., impact, drops, water exposure, heavy pressure), we will ship a new LCD panel free of charge, covering the shipping costs. Our long-term return rate for existing clients consistently remains below 0.8%.
The LCD Controller Board, also called LCD Driver Board, is the core control module of a TFT LCD display. It converts digital image signals from a PC or other sources into driving signals that the LCD can recognize, enabling accurate and stable display output. It serves as the critical bridge between input signals and the LCD screen, ensuring proper functionality of the display system.
The LCD AD Board (LCD Controller Board) supports a wide range of mainstream input interfaces, including VGA, HDMI, DVI, and DP, and drives industrial-grade LCD panels precisely through output interfaces such as LVDS, eDP.
HXDLCD offers highly customized LCD Controller Board solutions, complete with cable kits and dedicated firmware development tailored to your specific panel. Ideal for applications including industrial monitors, medical displays, POS systems, railway displays, digital signage, and kiosks.
● Built with renowned chip solutions for superior reliability
● Supports up to 4K resolution (4096×2160 @ 60Hz)
● Comprehensive technical documentation and full OEM/ODM customization services provided
