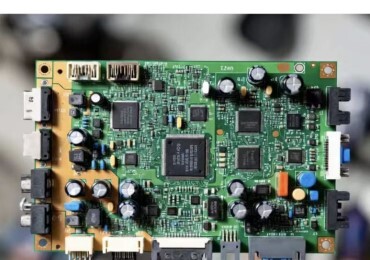

The LCD Controller Board, also called LCD Driver Board, is the core control module of a TFT LCD display. It converts digital image signals from a PC or other sources into driving signals that the LCD can recognize, enabling accurate and stable display output. It serves as the critical bridge between input signals and the LCD screen, ensuring proper functionality of the display system.

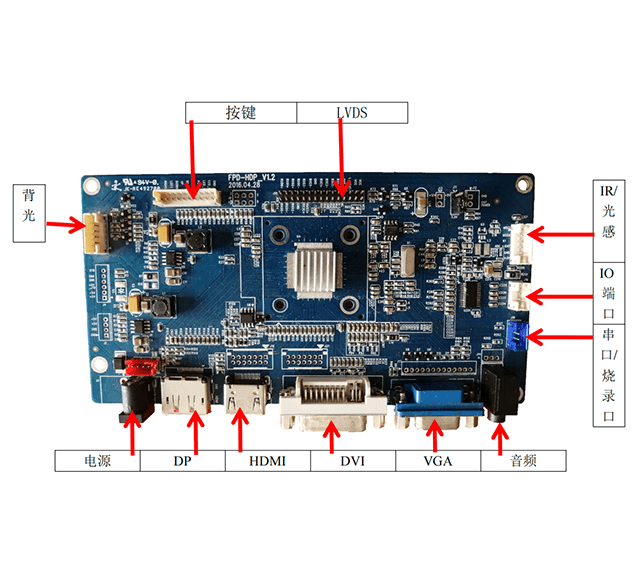

The LCD AD Board (LCD Controller Board) supports a wide range of mainstream input interfaces, including VGA, HDMI, DVI, and DP, and drives industrial-grade LCD panels precisely through output interfaces such as LVDS, eDP.
HXDLCD offers highly customized LCD Controller Board solutions, complete with cable kits and dedicated firmware development tailored to your specific panel. Ideal for applications including industrial monitors, medical displays, POS systems, railway displays, digital signage, and kiosks.
● Built with renowned chip solutions for superior reliability
● Supports up to 4K resolution (4096×2160 @ 60Hz)
● Comprehensive technical documentation and full OEM/ODM customization services provided
Company Strength Showcase

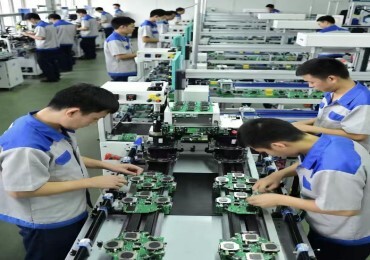

HXDLCD is a China supplier specializing in the supply of LCD Displays, Touch Screens, LCD Controller Boards and other related liquid crystal products. We offer the following services in the production of LCD AD Boards:
1.Hardcore Technology:
-Signal Processing Technology:
- Display Optimization Technology:
- Durability Guarantee:
2.Customization Ability: Tailored to Your Needs and Industry Scenarios
-Full Customization Services:
3.Quality Assurance: Worry-Free Service, Zero Purchase Risk
-Complete After-Sales Support:
-Authoritative Certifications: Passed CE, RoHS, CCC, and more – meets industrial standards and can be exported worldwide without compliance worries.
12 Years of LCD Supply Chain Expertise
Since 2013, we’ve specialized in LCD distribution and customization, representing 7 top brands like AUO, TIANMA, and BOE. With over 100,000 panels in stock and 24/7 global shipping, our supply chain is rock-solid and reliable.
Backed by 7 International Certifications
ISO 9001/13485/14001, CE, RoHS, and IATF 16949 (in progress) — every shipment includes original test reports, ensuring zero export hurdles.
One-Stop Engineering Customization
Our 15-member expert team delivers prototypes in 7 days and mass production in 30. We support IP67 protection, -40~85℃ extreme temps, MIL-STD shock resistance, and sunlight-readable displays.
Proven by 3000+ Global Clients
Serving industry leaders like CRRC, Philips Healthcare, and BYD Automotive, we’ve delivered over 3 million flawless panels with zero returns and 95+ NPS satisfaction.
Request Full Free Quotation & Custom Solution Now → Email & WhatsApp & Wechat
FAQ:
1.Are the driver boards compatible with LCD screens of different interfaces (such as LVDS, MIPI, eDP)?
The entire series supports mainstream interfaces including LVDS, MIPI DSI, eDP, and HDMI. Some models can be adapted to RGB and V-by-One interfaces via adapter modules, covering over 90% of commercial panels.
2. What is the operating voltage range of the driver boards, and how is power consumption controlled?
The operating voltage is 5V-24V wide input, with a typical power consumption of 5W-15W (depending on size and resolution). Equipped with an intelligent power regulation chip, the standby power consumption is as low as 0.3W, complying with energy-saving standards.
3.Can you provide personalized function customization (such as multi-screen splitting, touch integration, special signal input)?
Customized development is supported, including multi-screen stitching, infrared/capacitive touch integration, and special signal input. Samples can be delivered in as fast as 15 working days.
4.How is the stability of the driver boards guaranteed?
The driver boards have passed -40℃~85℃ high and low temperature tests and 72-hour continuous operation aging tests.
5.How difficult is the installation of the driver boards, and is installation guidance provided?
Adopting standardized interfaces and modular design, the installation process is simple and compatible with industry-universal mounting holes. Remote assistance from technical personnel is also available.
6.If the driver board is incompatible with our LCD screen, can we return/replace it or get a solution?
Sample testing is supported in advance. If compatibility issues arise during the testing period, we offer free replacement of suitable models or customized modification solutions.

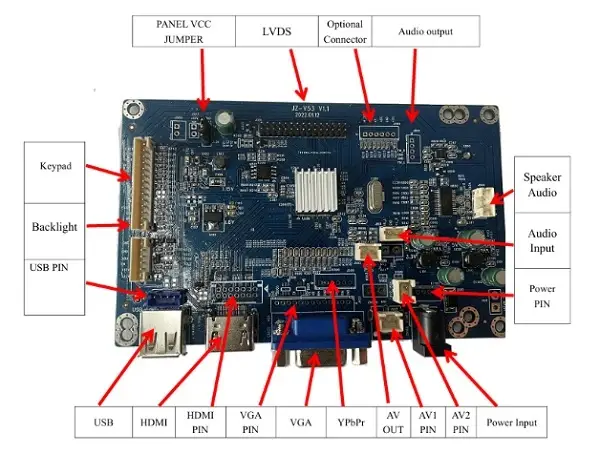

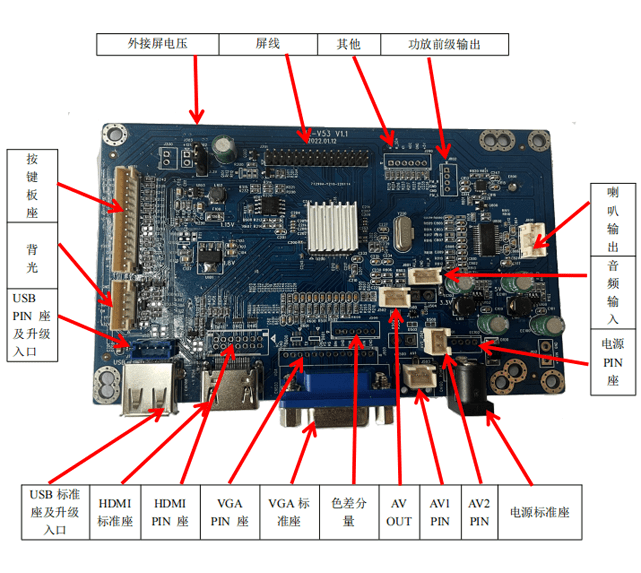

HXD-V53 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI, YPBPR and CVBS signal inputs, as well as LVDS and CVBS signal outputs. Supports 1080P full HD multimedia decoding. Optional 2×6W amplifier, or audio transmission via adjustable FM radio for vehicle radio reception. Media intercutting available during playback. True-color image/video boot screen, vertical flip, multi-language OSD and IR remote control supported. HXD-V53 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
| Model | HXD-V53 |
| Maximum resolution | 1920 x 1080 |
| Mechanical Dimension | 132.13mm x 82.13mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 2 CVBS input, 1 VGA input, 1 HDMI/DVI input, 1 YPBPR input, 1 USB (capable of reading high-definition video and images), 1 audio input |
| Output Interface | Dual LVDS output, 1 CVBS output, 1 audio output |
