AT056TN53 V.1

AT056TN53 V.1

White LED backlight, with LED driver, 180° flip display, matte surface.

Download PDF Send Message

Chimei Innolux TFT LCD Screen AT056TN53 V.1



AT056TN53 V.1 is a 5.6-inch Chimei Innolux TFT-LCD display panel. It is equipped with WLED backlight and LED backlight driver but without touch function. Chimei Innolux AT056TN53 V.1 adopts Parallel RGB signal interface, total 40 pins and connects via FPC. In terms of backlight, AT056TN53 V.1 employs WLED light source with a lifespan of 20K hours. Based on its product features, AT056TN53 V.1 is widely used in protable devices such as industrial HMI panel, digital photo frame, video doorbell and video intercom phone.


Chimei Innolux AT056TN53 V.1 Feature
a. High Contrast Ratio (800:1): Ranking among the highest levels for TN LCD panels of this size, it delivers sharper text and graphic boundaries, thereby enhancing data readability.
b. Built-in LED Backlight Driver: Eliminates the need for external driver circuit design, simplifying overall device development and testing while reducing subsequent maintenance costs.
c. Slim and Lightweight Design: Facilitates integration into embedded devices, balancing structural integrity with installation flexibility.
d. Wide Operating Temperature Range: Suitable for operation in the vast majority of device environments, eliminating concerns regarding frequent temperature fluctuations or extreme temperature conditions.

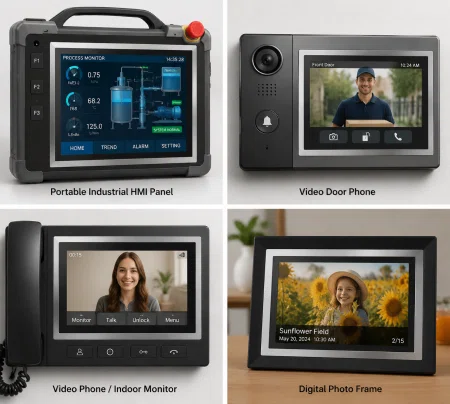

Chimei Innolux AT056TN53 V.1 Application Devices


Chimei Innolux AT056TN53 V.1 is a 5.6-inch industrial TN-type LCD panel module that finds extremely widespread application in small-sized portable devices.
a. Industrial Equipment: Portable industrial HMI panels, small-scale PLC control panels, industrial data recorders, etc.
b. Security Equipment: Such as video doorbells, video intercoms, compact video splitters, etc.
c. Automotive Equipment: In-vehicle information displays, dashboards for construction machinery, etc.
d. Consumer and Commercial Devices: High-end digital photo frames, small-format digital signage, etc.
AT056TN53 V.1 not only meets the size requirements of portable devices but also delivers industrial-grade stability and visibility, perfectly filling the market gap between consumer-grade screens and high-end industrial control displays.

Chimei Innolux AT056TN53 V.1 Matching Accessories


Custom Cables
We support custom cable services for various industrial TFT LCD display modules, including signal cables for LVDS, eDP, TTL, and more. You can freely customize cable length, connector type, pin assignment, and other specifications according to your device structure. Proper cable design not only optimizes internal wiring and enhances anti-interference capability, but also reduces assembly complexity and improves production efficiency. Whether for sample testing or mass production, we offer fast response to meet your structural requirements.

LCD Controller Board/LCD Driver Board
We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.



Touch Panel

We offer three major types of touch panels: resistive touch panel, capacitive touch panel, and infrared touch panel, covering a wide range of applications including industrial control, medical equipment, automotive displays, and self-service terminals. Based on your operating environment, accuracy requirements, and cost budget, you can flexibly choose the touch solution that best fits your device. Additionally, we support professional touch panel bonding services, including both frame bonding and air bonding. These processes effectively improve optical performance, dust resistance, and shock resistance, making your device more competitive in the market.

About Zhengzhou Hengxinda Technology Co., Ltd

As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.

Why Choose Hengxinda Industrial LCD Panel?

• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting control boards, digital cables and touch screen solutions — all products can be purchased together.

• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.

• Secure After-Sales Service: We offer a 1-year official warranty. For screens with non-human damage within the warranty period, free replacement or repair is provided.

Technology defines experience, and choices shape products. Welcome to contact us.

FAQS

Q1. How about Chimei Innolux AT056TN53 V.1 price?

A: Prices vary based on your specifications. Quality and stability are our top priorities. Our prices are mid-range in the industry, and we offer more competitive pricing for the same level of quality. For details, please contact us!

Q2. Does Chimei Innolux AT056TN53 V.1 have built-in touch functionality?

A: No. Chimei Innolux AT056TN53 V.1 is a pure LCD display module. If touch functionality is required, an additional touch screen needs to be configured. We offer matching resistive and capacitive touch screens, and also provide LCD panel/touch panel bonding services. Please contact our sales manager for details.

Q3. How long is your lead time?

A: Gernally, products in stock can be delivered within one week. For mass production orders, delivery takes two to three weeks after order confirmation. For customized products, the lead time will be re-evaluated accordingly.

Q4. Do you have MOQ requirements?

A: We have no MOQ for samples. However, for the second or third order of the same model, we require a MOQ of 50 pieces per order.

Q5. Can you provide custom cables for LCD panels, as well as touch screens and LCD driver boards?

A. Yes, we have offered these services since the very inception of our company. We stock LCD control boards and touch screens in a wide variety of specifications, and we also provide customization services for both touchscreens and control boards. We supply touchscreens and driver boards to sectors such as the defense industry, rail transit, industrial automation, medical equipment, and inspection systems. With our extensive experience, we have successfully provided solutions to hundreds of clients.
