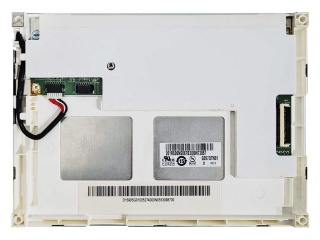

G057QTN01.0

G057QTN01.0

Download PDF Send Message

Basic Parameters

Panel Brand	AUO	panel model	G057QTN01.0
Panel size	5.7-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	320(RGB)×240, QVGA, 70PPI	pixel layout	RGB vertical stripes
display area	115.2(W)×86.4(H) mm	Appearance size	144(W)×104.6(H)×12.8(D) mm
Brightness(cd/m²)	500 (Typ.)	the contrast	700 : 1 (Typ.) [Transmission]
visual Angle	80/80/70/70 (Typ.) (CR≥10)	surface treatment	Hard coating (3H)
number of colors	262K , 50% NTSC	optical mode	TN, normally white display, transmissive
Panel Weight	150/165g (Typ./ Max.)	response time	15/10 (Typ.) (Tr/Td) ms
visible size	118.2 × 89.4 mm (H×V)	backlight system	WLED , 50K hours with LED driver
frame frequency	60Hz	used for	industrial engineering
signal interface	CMOS (1 ch, 6-bit) , Terminals, 33 pins	touchscreen	without
driving voltage	3.3V (Typ.)
application environment	Storage temperature: -30 ~85 °C Operating temperature: -30 ~85 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	TM050JDHG33-01	5"	720×1280	600 nits	800:1	WLED	MIPI	34	-20 ~70 °C
Tianma	P0570VGF1ME00	5.7"	640×480	300 nits	1000:1	WLED	Parallel RGB	40	-20~70 ° C
AUO	G057QAN01.1	5.7"	320×240	800 nits	1000:1	WLED	CMOS	33	-30 ~85 °C
AUO	G057VTN01.110	5.7"	640×480	550 nits	1000:1	WLED	CMOS	33	-30 ~85 °C
Innolux	G057VCE-TH1	5.7"	640×480	450 nits	1000:1	WLED	Parallel RGB	40	-30~85 ° C
AUO	G057VN01 V220	5.7"	640×480	700 nits	1000:1	WLED	CMOS	33	-30 ~ 85 °C
AUO	G057QTN01.4	5.7"	320×240	500 nits	700:1	WLED	CMOS	33	-30 ~85 °C
