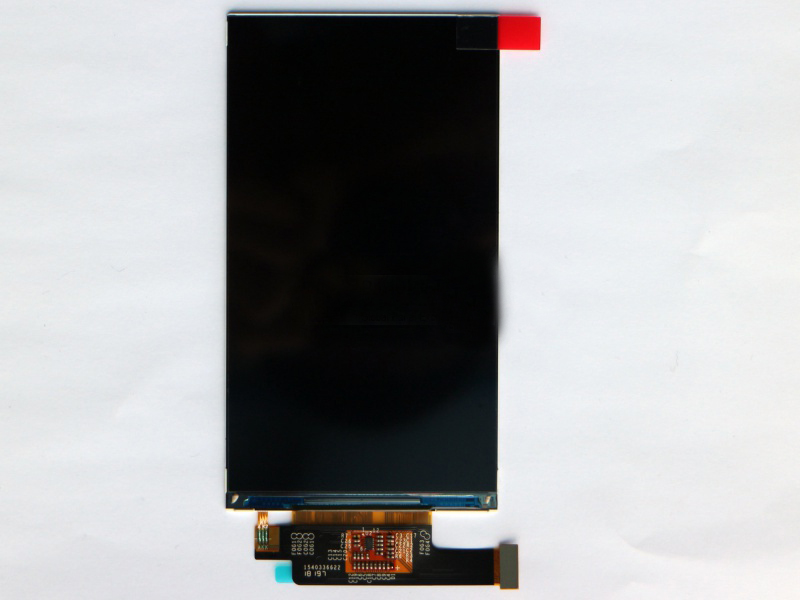

TM050JDHG33-01

Panel Brand	TIANMA	panel model	TM050JDHG33-01
Panel size	5.0-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	720(RGB)×1280, WXGA, 294PPI	pixel layout	RGB vertical stripes
display area	62.1(W)×110.4(H) mm	Appearance size	65.4(W)×118.9(H)×1.85(D) mm
Brightness(cd/m²)	500 cd/m² (Typ.)	the contrast	800:1 (Typ.) (TM)
visual Angle	88/88/88/88 (Typ.) (CR≥10)	surface treatment	Clear，Hard coating
number of colors	16.7M , 70% NTSC	optical mode	SFT, normally black display, transmissive
Panel Weight	27g	response time	30 (Typ.) (Tr+Td)
viewing direction	full-view	backlight system	6S 2P WLED , 20Khours,without driver
frame frequency	60Hz	be the same with	Mobile phone handheld terminal
signal interface	MIPI (4 data lanes) , 34 pins , terminals	touch panel	touchless
driving voltage	1.8/2.8V (Typ.) (VDDIO/VDD)
application environment	Working temperature:-20 ~70 °C ;Storage temperature: -30 ~80 °C
