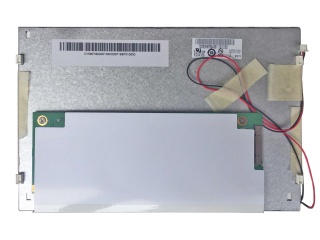

G070VTN01.0

G070VTN01.0

Download PDF Send Message

Basic Parameters

Panel Brand	AUO	panel model	G070VTN01.0
Panel size	7.0	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	800×480(RGB), WVGA, 133PPI	pixel layout	RGB vertical stripes
display area	152.4(W)×91.44(H) mm	Appearance size	170(W)×111(H)×8.3(D) mm
Brightness(cd/m²)	300 cd/m² (Typ.)	the contrast	500:1 (Typ.) (transmission)
visual Angle	65/65/50/60 (Typ.) (CR≥10)	surface treatment	Hard coating (3H)
number of colors	262K/16.2M , 50% NTSC	display mode	TN, normally white display, transmissive
Panel Weight	180g	response time	12/18 (Typ.) (Tr/Td) ms
recommended angle of view	6 o'clock	light source type	WLED [3S7P] , 30K hours, no drive
frame frequency	60Hz	used for	industrial engineering
signal interface	20 pins LVDS (1 ch, 6/8-bit) , Terminals	touch panel	without
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	TM050JDHG33-01	5"	720×1280	600 nits	800:1	WLED	MIPI	34	-20 ~70 °C
Tianma	P0700WVF1MA10	7"	800×480	1000 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P0700WVN1MA00	7"	800×480	1000 nits	1000:1	WLED	TTL	50	-30~85 ° C
Tianma	P0700WVF1MA00	7"	800×480	1500 nits	1000:1	WLED	LVDS	20	-30~80 °C
Tianma	P0700WSF2MB00	7"	1024×600	500 nits	900:1	WLED	LVDS	40	-20~70 ° C
Tianma	P0700WVN1ME01	7"	800×480	300 nits	800:1	WLED	Parallel RGB	50	-20~70 ° C
AUO	G070VAN01.1	7"	800×480	200 nits	1300:1	WLED	LVDS	30	-20 ~70 °C
Kyocera	TCG070WVLEGEFD-AA40	7"	800×480	800 nits	750:1	WLED	LVDS	30	-20~70℃
Kyocera	TCG070WVLSJPPB-GA20	7"	800×480	500 nits	650:1	WLED	LVDS	30	-20~70℃
Kyocera	TCG070WVLPEANN-AN20-S	7"	800×480	350 nits	1000:1	WLED	LVDS	30	-20~70℃
Kyocera	TCG070WVLPEANN-AN00-S	7"	800×480	350 nits	1000:1	WLED	LVDS	30	-20~70℃
