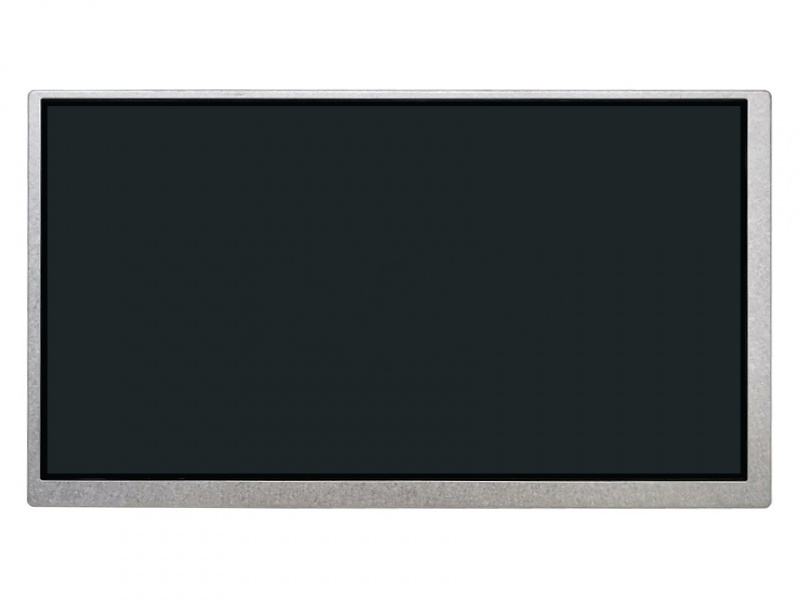

G070Y3-T01

G070Y3-T01

Download PDF Send Message

Basic Parameters

Panel Brand	Chimei Innolux	panel model	G070Y3-T01
Panel size	7.0-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	800(RGB)×480, WVGA, 134PPI	pixel layout	RGB vertical stripes
display area	156(W)×82.8(H) mm	Appearance size	168(W)×94(H)×6.65(D) mm
Brightness (cd/m²)	600 cd/m² (Typ.)	the contrast	650:1 (Typ.) (TM)
visual Angle	70/70/60/60 (Typ.) (CR≥10)	surface treatment	Haze (25%), Hard coating (3H)
display color	262K , 60% NTSC	work pattern	TN, normally white display, transmissive
Panel Weight	180g (Typ.)	response time	5/11 (Typ.) (Tr/Td)
viewing direction	6 o'clock	be the same with	Industrial Vehicle Display
frame frequency	60Hz	touch panel	touchless
signal interface	TTL (1 ch, 6-bit) , 50 pins , FPC	Backlight type	9S3P WLED , 30K hours, no drive
driving voltage	3.3/10.5/18/-7V (Typ.) (VCC/AVDD/VGH/VGL)
application environment	Working temperature: -30 ~85 °C ;Storage temperature: -40 ~90 °C ;Vibration resistance: 3.0G (29.4 m/s²)
