Ultra-high brightness, White LED backlight, With a lifespan exceeding 50,000 hours, Reverse terminals, 6/8-bit grayscale options available, and Mirror surface

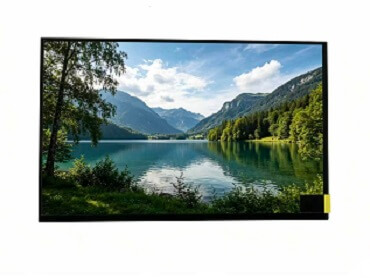

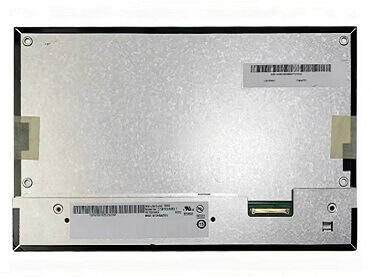

AUO G101EVN03.1 is a 10.1-inch a-Si TFT-LCD high-brightness LCD screen specifically designed for industrial control and outdoor high-brightness scenarios: With a high brightness of 1000cd/㎡ and MVA optical mode, the screen content can be clearly visible even in strong outdoor light, eliminating the concern of "reflection making it hard to see". It is equipped with WLED backlight, but without backlight driver and touch function. The 1280×800 WXGA resolution + RGB vertical pixel layout ensures high picture clarity, allowing precise display of industrial data and equipment parameters. The mirror surface design is scratch-resistant and easy to clean. In terms of backlight, G101EVN03.1 adopts a side WLED backlight with a lifespan of 50K hours, ensuring no need for replacement or maintenance in a short period. AUO G101EVN03.1 features an LVDS (1 channel, 6/8-bit) signal interface with a total of 40 pins, connected via connectors. The typical display driving voltage is 3.3V (Typ.). The operating temperature ranges from -20°C to 70°C, and the storage temperature ranges from -30°C to 70°C, with vibration resistance of 1.5G (14.7 m/s²). Whether it is an industrial control terminal or an outdoor display device, the AUO G101EVN03.1 can reliably meet the core requirements of clear and durable performance.
Brand
AUO
Type
a-Si TFT-LCD
Model
G101EVN03.1
Surface Finish
Mirror Surface
Size (inch)
10.1
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
227.69(W)×148.31(H)×7.75(D)
Optical Mode
MVA
Active Area (WxH mm)
216.96(W)x135.6(H)
Backlight Type
WLED, 50K hours
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Interface
LVDS (1 ch, 6/8-bit) , 40 pins
Resolution
1280(RGB)×800, WXGA, 149PPI
Response Time
25 (Typ.) (Tr+Td) ms
Brightness (cd/m²)
1000
Dispay Colors
262K/16.2M , 45% NTSC
Contrast Ratio
1300:1
Operating Temperature (°C )
-20~ 70
Operating Voltage
3.3V (Typ.)
Storage Temperature(°C )
-30~70
Operating Frequency
60Hz
Weight
350g
Application
Industrial Control/ Outdoor Highlight Use
1.85° full-view design: Supports multi-angle viewing of screen content, avoiding color distortion and blurring.

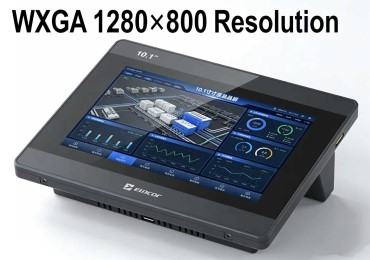

2. 1280×800 WXGA resolution: Presents detailed images, accurately displaying industrial data and equipment parameters.
3. 1000cd/m2 high brightness + MVA optical mode: Ensures clear display of content in strong outdoor light, avoiding reflection blurring issues.
4. -20~70℃ wide operating temperature range: Suitable for industrial / outdoor complex environments, ensuring stable operation of the equipment.
5. 50,000-hour WLED backlight + mirror surface: Extends equipment lifespan, reduces maintenance and replacement costs; enhances surface scratch resistance, facilitating cleaning.

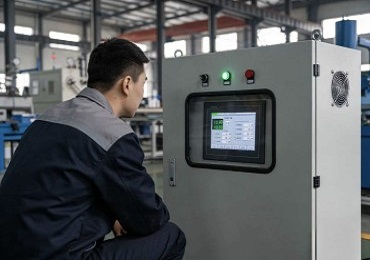

1. Industrial equipment: AUO G101EVN03.1 features high stability, excellent vibration resistance and strong anti-interference performance. It is well adapted to harsh industrial working conditions. G101EVN03.1 is widely used in industrial control HMI display panels, CNC machine tool display panels, production line industrial control terminals, workshop equipment monitoring screens and other industrial equipment. AUO G101EVN03.1 can maintain clear and stable images in industrial scenarios with large temperature differences and continuous operation, meeting the long-term reliable display requirements of industrial automation.

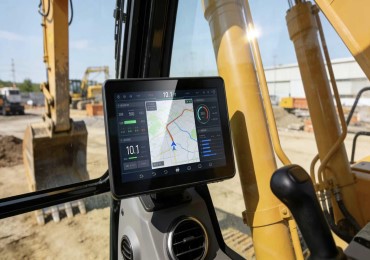

2. Outdoor equipment: AUO G101EVN03.1 features a high brightness of 1000 nits and clear image quality. It can withstand extreme temperature changes and complex outdoor environments. This outdoor sunlight readable LCD display is widely applied to outdoor unmanned vending machine interactive screens, outdoors plant inspection displays, and display panels for field environmental detection equipment. It maintains normal display and stable operation even under direct sunlight, fully meeting the all-weather reliable display requirements of outdoor and semi-outdoor equipment.
3. Medical equipment: AUO G101EVN03.1 offers stable operation and low power consumption, with reliable performance for long periods of continuous operation, making it suitable for the rigorous standards of the medical industry. It is widely used in medical monitoring equipment displays, portable diagnostic instrument displays, and medical testing and analysis equipment displays. G101EVN03.1 meets the professional requirements of medical devices for long-term stable display and clear visualization of data and images.
HXD is a professional manufacturer that has been deeply involved in the LCD tft display industry for 15 years. We focuse on providing you with high-quality LCD display solutions and related services. At the core product level, we provide global high-end brands such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp to meet the LCD display requirements in different scenarios. We also have our own independent R&D production capacity and can provide supporting accessories such as driver boards, cables, and touch screens that are compatible with LCD screens, achieving "LCD panel + accessories" one-stop supply, eliminating the complexity of multiple channel procurement for customers. Our TFT LCD displays have been deployed in many practical projects and support long-term stable operation with reliable quality. For example, AUO G101EVN03.1 is applied to outdoor portable sonic testers, fully meeting customers' precise requirements. We also provide professional technical service and support, receiving highly positive feedback from customers.
With 15 years of accumulated professional technology and experience, HXD not only provides standardized products but also supports OEM & ODM customization services, precisely matching your individualized needs. The service also offers free quotations and free technical document support, providing efficient and high-quality services from demand connection, scheme design to after-sales guarantee, and is committed to becoming a trusted LCD display solution partner for you.
1. What is your team?
A: Our team has over 15 years of industry experience. We have served thousands of clients across military, industrial control, transportation, medical and other fields, accumulating rich professional experience. We help customers save significant time on LCD panel selection and avoid potential risks in the pre-sales stage.
2. What customization dimensions does HXD support? A: We support brightness adjustments, interface additions/removals, and aesthetic optimizations. Our streamlined OEM/ODM process offers one-on-one technical coordination and rapid fulfillment for bulk orders.
3. Are samples free?
A: Sorry, we do not provide free samples. Samples need to be purchased at the unit price, and freight shall be paid separately. This is the industry practice to ensure reasonable allocation of resources.
4. What is the product warranty period? A: One-year warranty for the entire unit. Mean Time Between Failures (MTBF) ≥50,000 hours. Prompt after-sales support.
5. What interface types are available? A: Equipped with HDMI, VGA, DVI, and BNC interfaces, compatible with most industrial control hosts, computers, and AV equipment for strong versatility.
6. What are the shipping lead times and logistics methods for cross-border orders? A: Standard orders ship within 3-5 days. We support DHL and FedEx cross-border logistics, providing complete customs documentation to facilitate rapid clearance.
