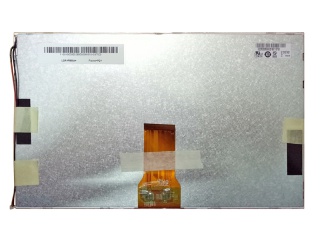

G101STN01.2

Panel Brand	AUO	panel model	G101STN01.2
Panel size	10.1-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1024(RGB)×600, WSVGA, 117PPI	pixel layout	RGB vertical stripes
display area	222.72(W)×125.28(H) mm	Appearance size	235(W)×143(H)×5.5(D) mm
Brightness(cd/m²)	350 cd/m² (Typ.)	the contrast	500:1 (Typ.) (transmission)
viewable area	224.72(W)×127.28(H) mm	surface treatment	Hard coating (3H)
number of colors	262K/16.7M , 45% NTSC	light source type	WLED [8S3P] , 30K hours, no drive
Panel Weight	340g (Max.)	response time	7/9 (Typ.) (Tr/Td) ms
visual Angle	70/70/60/60 (Typ.) (CR≥10)	display mode	TN, normally white display, transmissive
frame frequency	60Hz	use for	industrial engineering
signal interface	50 pins TTL (1 ch, 6/8-bit) , FPC	touch panel	touchless
driving voltage	3.3/10.0/18.0/-8.0V (Typ.) (VDD/AVDD/VGH/VGL)
application environment	Operating temperature: -10 ~60 °C ; Storage temperature: -30 ~70 °C
