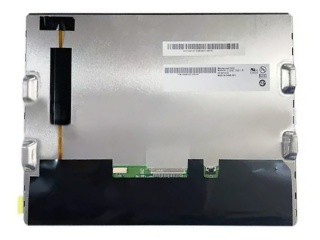

G116HAN01.0

White LED Backlight, Integrated LED Driver, Reverse-Mount Terminals, eDP 1.2 Interface.

Basic Parameters

Panel Brand	AUO	Panel Model	G116HAN01.0
Panel size	11.6 inch	Panel Type	a-Si TFT-LCD,LCD Module
Resolution	1920(RGB)×1080, FHD, 190PPI	Pixel Layout	RGB vertical stripes
Display Area	256.32(W)×144.18(H) mm	Appearance Size	268(W)×168.5(H)×3(D) mm
Brightness(cd/m²)	300 cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (TM)
Visual Angle	89/89/89/89 (Typ.) (CR≥10)	Surface Treatment	Hard coating (3H)
Display Colors	16.7M, 52% NTSC	Optical Pattern	AHVA, normally black display, transmissive
Panel Weight	200g (Max.)	Response Time	25 (Typ.) (Tr+Td) ms
Viewing Direction	Full-view	Backlight	WLED , 15K hours with LED driver
Working Frequency	60Hz	Application	Industrial Engineering
Interface	eDP (2 Lanes), eDP1.2, 30 pins, Connector	Touch Function	No
Driving Voltage	3.3V (Typ.)
Application Environment	Working Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~60 °C

Why Choose Us?

HXD is a professional supplier of LCD TFT display modules, providing brands such as AUO/BOE/IVO/Sharp/ Innolux etc. And we have our own factory to provide relevant accessories including LCD control board, touch screen, light sensor, adapter plate, cable etc. and important components. For all products, we can provide the following services:

1. Flexible Customization Service
Supports personalized adjustments of the core parameters of LCD TFT panel, covering size (3"-32"), shape, brightness (up to 25oo nits), interfaces, resolution and other aspects, to meet the differentiated requirements of your terminal products.

2. "One-stop Shopping" Experience
In addition to the LCD TFT display, we also supply a complete set of related accessories such as LCD driver boards, LCD touch screens, light sensors, and adapter cables.

3. Product Quality Assurance
Before each batch of LCD TFT screens is shipped, aging tests, lifespan tests, and environmental adaptability tests are completed.

4. Reliable After-sales Service
Provide 1-year official warranty that are not damaged by human factors during the warranty period can be replaced or repaired free of charge.

Welcome to contact us now!

FAQ

1. What do you do?
A: We are a professional supplier of TFT LCD display solutions founded in 2013. Our core business is to supply high-quality industrial LCD display modules from leading brands such as AUO, Innolux, and BOE.
2. Besides the LCD panel, do you also provide other related products?
A: Yes, we offer complete display peripheral accessories, including various touch screens (resistive, capacitive, infrared), custom cables, backlight driver boards, main control driver boards (LVDS/eDP driver boards), LED driver boards, and brightness adjustment converters, forming a one-stop solution.
3. Do you support customized LCD displays?
A: Yes, we support deep customization, including non-standard sizes, specific resolutions, special interface definitions, wide temperature and voltage ranges, high-brightness anti-glare processing, etc. The customization service usually has a minimum order quantity requirement. For details, please send an inquiry to contact the sales manager.
4. What payment methods do you support?
A: We support payment methods such as T/T, PayPal (for small amounts), and L/C. Specific terms will be negotiated after the order confirmation.
5. What shipping methods do you use?
A: We usually use international express delivery (such as DHL, FedEx, UPS) for samples and small batch orders; for bulk goods, we use air or sea transportation to save costs. We can negotiate according to your needs.

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
Tianma	P1160FHF1MA00	11.6"	1920×1080	1600 nits	900:1	WLED	LVDS	30	-20~80 °C
Tianma	P1160FHF1MA01	11.6"	1920×1080	1000 nits	900:1	WLED	LVDS	30	-20~70 ° C
AUO	G116HAN01.0	11.6"	1920×1080	300 nits	800:1	WLED	eDP	30	0 ~ 50 °C
Tianma	P1210WXF1MB00	12.1"	1280×800	450 nits	1000:1	WLED	LVDS	30	-20~70 ° C
Tianma	P1210WXF2MA01	12.1"	1280×800	1100 nits	1000:1	WLED	LVDS	20	-30~80 °C
Tianma	P1210WXF2MA00	12.1"	1280×800	1500 nits	1000:1	WLED	LVDS	20	-30~85 ° C
Tianma	P1210XGF1MA01	12.1"	1024×768	800 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1210XGF1MA00	12.1"	1024×768	1300 nits	1000:1	WLED	LVDS	20	-30~80 ° C
