G121EAN01.4

G121EAN01.4

sRGB, wide temperature, WLED backlight, with a lifespan exceeding 50,000 hours, including LED driver, 6/8-bit grayscale options available, matte surface.

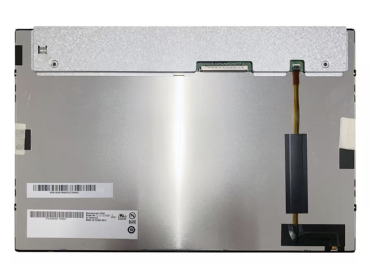

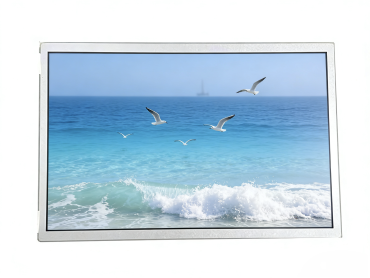

AUO G121EAN01.4 LCD Panel


AUO G121EAN01.4 is a stable and durable industrial-grade TFT LCD display module. It is equipped with a WXGA (1280×800) resolution a-Si TFT-LCD panel, with a pixel density of 124 PPI, providing a detailed and clear picture display. This panel adopts AHVA technology, with a visible angle of 89/89/89/89 (CR ≥ 10), ensuring that the picture remains clear and the colors are true from multiple viewing angles. The surface is coated with a matte hardening layer (3H hardness), which can effectively prevent glare and resist scratches, making it suitable for long-term viewing. The LCD display uses a 30-pin LVDS interface, supporting 6/8-bit color depth, with a working voltage of 3.3V. The structure is compact and reliable, with a working temperature range covering -30°C to 85°C, suitable for harsh industrial and outdoor temperature differences. The backlight life is up to 50,000 hours, ensuring stable and reliable performance over the long term.



Basic Parameter


Brand AUO Model G121EAN01.4
Diagonal Size 12.1 inch Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)x800,WXGA 124PPI Pixel Format RGB  Vertical Stripe
Display Area 261.12(W)x163.2(H)mm Outline Dimension 264.22(W)x168.12(H)mm
Active Area 278x184x9.64(HxVxD) Surface Treatment Matte, Hard coating (3H)
Brightness 300 cd/m² (Typ.) Contrast Ratio 1000:1(Typ.)(TM)
Viewing Angle 89/89/89/89(Typ.)(CR≥10) Response Time 25 (Typ.)(Tr+Td) ms
Optimal Visual Angle Symmetry Optical Mode AHVA, Normally Black, Transmissive
Display Colors 262K/16.2M 99% sRGB Backlight WLED,50K hours, With LED Driver
Weight 480g (Typ.) Application Industry/ Medical Care
Refresh Rate 60Hz Touch Function No
Signal Type LVDS(1 ch,6/8-bit), Connector, 30 pins
Voltage Supply 3.3V (Typ.)
Environment Temperature Storage  Temperature: -30~85℃ ,Operating Temperature:-30~85℃

AUO G121EAN01.4 Key Features


AUO G121EAN01.4 is an industrial-grade LCD display solution specifically designed for harsh environments. The following features:
1. Wide temperature stability: Can operate normally in extreme temperatures ranging from -30°C to 85°C, suitable for applications with large temperature differences and complex environments such as outdoors and workshops.
2. Long-lasting and reliable backlight: Equipped with WLED backlight and driver, with a lifespan of up to 50,000 hours, reducing maintenance frequency and usage costs.
3. Industrial-grade interface compatibility: Uses 30-pin LVDS interface, with strong anti-interference ability, stable signal transmission, and compatible with most industrial control motherboard solutions.
4. Anti-glare matte screen: The surface undergoes hardened matte treatment, not reflecting in strong light, providing a more comfortable viewing experience in outdoor or highly illuminated indoor environments.


Why Choose Us?

  • Commercial/Government Self-service Terminals
    Commercial/Government Self-service Terminals

    LCD TFT displays, as the interaction portal for commercial terminals, are used in outdoor government self-service kiosks, high-temperature business district checkout screens, etc., to display interfaces like social security inquiries and settlement information. The wide viewing angle accommodates users of different heights during operation, and the high-brightness design ensures clear display even in strong light. Their compact size and easy integration allow flexible embedding into various self-service terminals, improving service efficiency.

  • Medical Equipment
    Medical Equipment

    LCD TFT displays, as the information presentation carrier for medical equipment, are adapted to outdoor emergency devices and laboratory testing instruments, accurately displaying patients' vital signs and experimental data curves. High color gamut and contrast ensure detailed reproduction of medical images, while wide temperature tolerance suits special environments like ambulances and high/low-temperature laboratories. The lightweight design also facilitates the mobile use of portable medical devices.

  • Industrial Control
    Industrial Control

    LCD TFT displays, as the "core of data visualization" in industrial scenarios, are compatible with inspection tablets, workshop consoles, and logistics dispatch displays in extreme environments, displaying equipment faults, production line parameters, and cargo information in real time. Wide viewing angle supports collaborative viewing by multiple people. And ultra-wide temperature tolerance and long lifespan meet the long-term stable operation needs of industrial equipment, significantly reducing maintenance costs.

Product Supporting Services

♦ Custom-Matched Driver Boards

We provide industrial-grade driver boards fully compatible with the G121EAN01.4, supporting plug-and-play functionality via LVDS interface. Built-in with industrial-grade chips, these driver boards are suitable for operation within a temperature range of -30°C to 85°C.

♦ Customized Touch Screens

Capacitive touch screens or resistive touch screens in corresponding sizes can be configured according to your device requirements. The resolution and touch accuracy of the touch screens are perfectly matched to the display performance of the LCD TFT display panels.

♦ High-Precision Bonding Technology

We offer Air bonding and Frame bonding services for integrating touch screens with LCD TFT display panels, adopting industrial-grade bonding processes. The bonding tolerance is controlled within ±0.2mm, with additional dust-proof and anti-fog treatment applied.

If you need a customized integrated solution combining LCD display panel, driver board, touch screen and bonding, feel free to contact us. We will provide a tailor-made compatibility plan based on your device parameters and application scenarios!



FAQs

1. What are the payment methods available?
A: We support T/T, Alipay/WeChat (for small amounts), and for bulk orders, a 50% deposit plus the final payment will be required for shipment.

2. How long is the delivery time?
A: For international trade, it can be delivered via Fedex/DHL/sea/air freight, with an average delivery time of 3-30 days (depending on the region and the shipping way that you choose).

3. Can your LCD TFT screen parameters be customized?
A: For bulk orders, resolution and interface customization are supported. Please communicate the parameters and minimum order quantity in advance.

4. How are the after-sales faults handled?
A: After providing the fault certificate, a solution will be provided within 72 hours. Non-human factors-related issues will be free of charge for return, replacement or repair.
