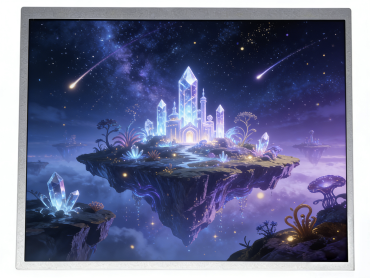

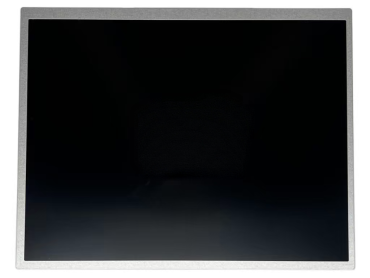

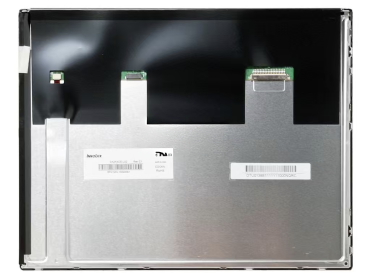

G121XCE-L02

Wide temperature, WLED backlight, with LED driver, connectors installed on the top, can be flipped up/down or left/right for display, 6/8-bit grayscale options available, matte surface.

Download PDF Send Message

Product Description

Innolux G121XCE-L02 is a 12.1-inch a-Si TFT-LCD display terminal specifically designed for mid-to-high-end equipment manufacturers. It represents a durable LCD display solution focused on high-frequency usage and capable of handling complex environmental scenarios ---it can precisely address the core pain points such as "screen prone to scratches, poor display clarity, and poor adaptability" that customers encounter in the operation of industrial/commercial/vehicle-mounted/medical equipment, transforming the display components of the equipment from "easily worn-out materials" into long-term stable core components.

Basic Parameter

Panel Brand	Innolux	Panel Model	G121XCE-L02
Panel Size	12.1-inch	Panel Type	a-Si TFT-LCD, LCD Module
Resolution	1024(RGB)x768, XGA, 105PPI	Pixel Layout	RGB vertical stripes
Display Area	245.76(W)x184.32(H) mm	Appearance Size	260.5(W)x204(H)x8.9(D) mm
Viewable Area	249.0(W)x187.5(H) mm	Surface Treatment	Matte, Hard coating(3H)
Panel Brightness	500 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Visual Angle	89/89/89/89 (Typ.) (CR≥10)	Optical Pattern	AAS, normally black display, transmissive
Viewing Direction	Full-view	Reaction Time	13/12 (Typ.) (Tr/Td)
Display Color	262K/16.7M,72% NTSC	Backlight	WLED,30K hours, with LED driver
Operating Frequency	60Hz	Touch Screen	No
Weight	490/510g (Typ./ Max.)	Application	Industrial Engineering
Signal Interface	LVDS (1 ch,6/8-bit), 20 pins, connectors
Driving Voltage	3.3V (Typ.)
Environment Temperature	Operating temperature:-30~70℃;Storage temperature:-40~80℃

Innolux G121XCE-L02 Backlight Details

Back-light Features	Lamp Type	WLED	Replacement	-	Position	Edge Light type
Back-light Features	Amount	-	Lamp Shape	-	Life Time	30K (Min.) hours
Interface Features	Position	-	Type	Connector
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins
Interface Detail	ACES	91208-01001	1 pcs	1.0 mm	10 pins
Driver Electrical	with LED Driver
Driver Electrical	Current Input	12.0±1.2V		Voltage Input	0.7/0.85A (Typ./Max.)
Driver Electrical	Consumption	8.4/10.2W (Typ./Max.)

Innolux G121XCE-L02 Interface Details

Back-light Features	Lamp Type	WLED	Replacement	-	Position	Edge Light type
Back-light Features	Amount	-	Lamp Shape	-	Life Time	30K (Min.) hours
Interface Features	Position	-	Type	Connector
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins
Interface Detail	ACES	91208-01001	1 pcs	1.0 mm	10 pins
Driver Electrical	with LED Driver
Driver Electrical	Current Input	12.0±1.2V		Voltage Input	0.7/0.85A (Typ./Max.)
Driver Electrical	Consumption	8.4/10.2W (Typ./Max.)

Innolux G121XCE-L02 Optical Details

Basic Information	Brightness (cd/m2)	500	Contrast Ratio	1000:1 (Transmission)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	AAS, Normally Black, Transmissive
	Viewing Direction	Full-view	Response Time	13/12 (Typ.)(Tr/Td) (ms)
Color Performance	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance	Color Temperature	6485K	Uniformity	1.25/1.30 (Typ./Max.)(5 points)
1931 Color Gamut	NTSC Ratio	73%	sRGB	93%
	Adobe RGB	72%	DCI-P3	75%
	REC.2020	54%	REmarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Why Choose Us?

Product Supporting Services

♦ Custom-Matched Driver Boards

We provide industrial-grade driver boards fully compatible with the G121XCE-L02, supporting plug-and-play functionality via LVDS interface. Built-in with industrial-grade chips, these driver boards are suitable for operation within a temperature range of -30°C to 85°C.

♦ Customized Touch Screens

Capacitive touch screens or resistive touch screens in corresponding sizes can be configured according to your device requirements. The resolution and touch accuracy of the touch screens are perfectly matched to the display performance of the LCD TFT display panels.

♦ High-Precision Bonding Technology

We offer Air bonding and Frame bonding services for integrating touch screens with LCD TFT display panels, adopting industrial-grade bonding processes. The bonding tolerance is controlled within ±0.2mm, with additional dust-proof and anti-fog treatment applied.

If you need a customized integrated solution combining LCD display panel, driver board, touch screen and bonding, feel free to contact us. We will provide a tailor-made compatibility plan based on your device parameters and application scenarios!

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
Tianma	P1210SVF1MB00	12.1"	800×600	500 nits	1000:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1210XGF1MA01	12.1"	1024×768	800 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1210XGN1MB00	12.1"	1024×768	450 nits	700:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1210XGF1MB00	12.1"	1024×768	500 nits	1000:1	WLED	LVDS	20	-30~80 °C
Tianma	P1210WXF2MA01	12.1"	1280×800	1100 nits	1000:1	WLED	LVDS	20	-30~80 °C
Innolux	G121ICE-P01	12.1"	1280×800		1000:1	No Backlight	LVDS	30	-30~80 °C
Innolux	G121ICE-PM1	12.1"	1280×800		1000:1	No Backlight	LVDS	30	-20~70 °C
Innolux	G121ICE-LH2	12.1"	1280×800	600 nits	1000:1	WLED	LVDS	30	-30~80 °C
Innolux	G121ICE-LH1	12.1"	1280×800	1000 nits	1000:1	WLED	LVDS	30	-30~80 °C
Innolux	G121XCE-L02	12.1"	1024×768	500 nits	1000:1	WLED	LVDS	20	-30~70℃
