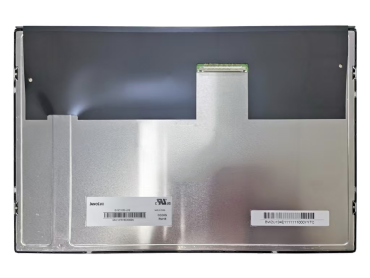

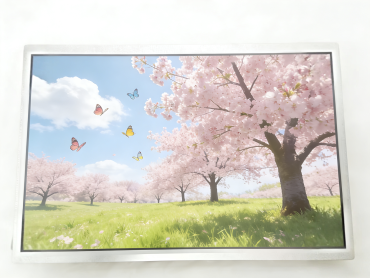

G121ICE-L02

G121ICE-L02

WLED backlighting, with LED driver, 6/8-bit grayscale option available, matte surface, digitizer compatible.

Download PDF Send Message

Product Description

Innolux G121ICE-L02 is a cost-effective high-definition 12.1-inch a-Si TFT LCD display module for small and medium-sized equipment manufacturers. It features a 1280×800 WXGA resolution (124 PPI) + 72% NTSC color gamut, along with a 3H hard matte surface layer and 30K hours of backlighting --- addressing the pain points of "screen blurring, prone to scratches, and frequent maintenance" in device scenarios: 124 PPI ensures clarity even for small parameters, the 3H hard surface layer can withstand daily scratches, and the 30K hours of backlighting is sufficient for stable use of the equipment, making it a "cost-effective and durable" practical LCD TFT display panel.



Basic Parameters

Panel Brand Innolux Panel Model G121ICE-L02
Panel Size 12.1-inch Panel Type a-Si TFT-LCD, LCD Module
Resolution 1280(RGB)x800, WXGA,124PPI Pixel Layout RGB vertical stripes
Display Area 261.12(W)x163.2(H) mm Appearance Size 278(W)x184(H)x10.5(D) mm
Viewable Area 264.12(W)x166.2(H) mm Surface Treatment Hard coating (3H)
Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)
Visual Angle 89/89/89/89 (Typ.) (CR≥10) Work Pattern AAS, normally black display, transmissive
Viewing Direction Full-view Reaction Time 12/8 (Typ.) (Tr/Td) ms
Display Color 262K/16.7M ,72% NTSC Backlight WLED,30K hours with LED driver
Working Frequency 60Hz Touch Screen No
Weight 470/490g (Typ./ Max.) Application Industrial Engineering
Signal Interface LVDS(1ch,6/8-bit), 30 pins, connectors
Driving Voltage 3.3V (Typ.)
Environment Temperature Working Temperature: -20 °C to 70 ° C; Storage Temperature:-20 °C to 70 ° C

Innolux G121ICE-L02 Optical Details

Basic Information

Brightness (cd/m2)

400

Contrast Ratio

1000:1 (Transmission)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Optical Mode

AAS, Normally Black, Transmissive

Viewing Direction

Full-view

Response Time

12/8 (Typ.)(Tr/Td) (ms)

Color Performance

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K/16.7M (6-bit / 8-bit )

Color Temperature

6485K

Uniformity

1.25/1.43 (Typ./Max.)(5 points)

1931 Color Gamut

NTSC Ratio

72%

sRGB

94%

Adobe RGB

73%

DCI-P3

75%

REC.2020

54%

REmarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G121ICE-L02 Interface Details

Signal Electrical

Current Input

560/675mA (Typ./Max.)

Voltage Input

3.3V (Typ.)

Consumption

---W (Typ./Max.)

Signal System

LVDS (1 ch, 6/8-bit)

Interface Features

Position

---

Type

Connector

Connector Detail

Brand

Model

Amount

Pin Pitch

Pins

P-TWO

187114-30091

1pcs

1.0 mm

30 pins

Innolux G121ICE-L02 Backlight Details

Back-light Features



Lamp Type

WLED

Replacement

-

Position

Edge Light type

Amount

-

Lamp Shape

-

Life Time

30K (Min.) hours

Interface Features

Position

-

Type

Included in the signal interface

Driver Electrical

with LED Driver

Driver Electrical

Current Input

12.0±1.2V

Voltage Input

0.55/0.7A (Typ./Max.)

Consumption

6.6/8.4W (Typ./Max.)



Innolux G121ICE-L02 LCD TFT Display Panel Note

  • Industrial Control
    Industrial Control

    PLC central control panel, CNC machine operation screen, production line status monitoring terminal, industrial robot trainer etc.. The full-view IPS display supports multiple people to view the equipment parameters simultaneously, avoiding information deviations caused by viewing angles, and improving the efficiency of production line collaboration.

  • Medical Equipment
    Medical Equipment

    Multi-parameter monitor, ultrasound diagnostic display module, infusion pump control screen, operating terminal for surgical room equipment etc. Full-angle display enables medical staff to view patient data from different angles, avoiding missing critical signs.

  • Commercial and Bussiness Services
    Commercial and Bussiness Services

    Bank self-service business processing screen, government service terminal, retail checkout system screen, intelligent self-service machine screen Full-angle display supports multiple people viewing business information simultaneously, improving the service efficiency and user experience in business scenarios.

1. Installation Guide

Please note that this product does not include installation instructions. We hereby declare that we are not responsible for any damage caused by improper installation. Please ensure you have the necessary skills to complete the installation before purchasing. Thank you for your understanding and cooperation.



2. Quality Assurance and Testing

Every LCD tft panel undergoes comprehensive functional testing before shipment to ensure 100% normal operation upon delivery. During testing, old, damaged, cracked, or malfunctioning filters will be repaired or replaced to ensure the product always performs at its best.



3. Post-delivery Precautions

After receiving the product, please do not immediately remove the protective film or apply glue to the back of the LCD tft screen. Please be sure to install the new panel first and test the device's sensitivity. This step effectively confirms product quality and avoids potential damage to the device's motherboard and screen.



4. Safety Guidelines During Testing

Before conducting any testing operation, please make sure to disconnect the power supply of the device to prevent damage to the motherboard and screen due to live operation. If the equipment suffers irreparable damage due to failure to follow this requirement, we are not responsible for it. Please operate carefully and strictly follow the above instructions.

FAQs

1. What are the payment methods available?
A: We support wire transfer, Alipay/WeChat (for small orders), and for bulk orders, a 50% deposit plus the final payment will be required for shipment.


2. How long is the delivery time?
A: For international trade, it can be delivered via Fedex/DHL/sea/air freight, with an average delivery time of 3-30 days (depending on the region and the shipping way that you choose).


3. Can your LCD tft display panel parameters be customized?
A: For bulk orders, resolution and interface customization are supported. Please communicate the parameters and minimum order quantity in advance.


4. How are the after-sales faults handled?
A: After providing the fault certificate, a solution will be provided within 72 hours. Non-human factors-related issues will be free of charge for return, replacement or repair.
