G121ICE-LH2

G121ICE-LH2

Wide temperature, high brightness, WLED backlight, lifespan over 50,000 hours, with LED driver, 180-degree flip display, 6/8-bit grayscale options, matte surface.

Download PDF Send Message

Product Description

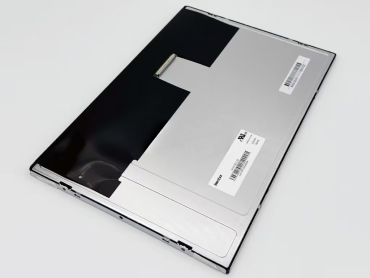

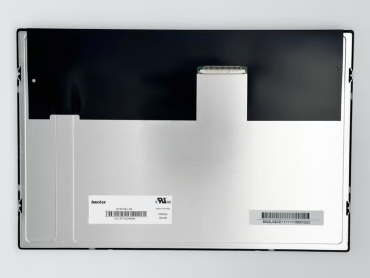

Innolux G121ICE-LH2 is a high-specification 12.1-inch a-Si TFT-LCD display module designed for industrial, commercial, medical and automotive equipment manufacturers. The LCD panel features a resolution of 1280×800 (WXGA) and a high-definition display with 124PPI. It is equipped with a 3H hardness matte surface layer and a 50K-hour WLED backlight, precisely addressing the pain points in equipment scenarios such as "screen prone to scratches, unclear viewing under strong light, and rapid backlight attenuation": The 124PPI ensures more detailed display, the 3H hard surface layer can withstand scratches from workshop iron filings, and the 50K-hour backlight means a significant reduction in the cost of equipment component replacements, making it a practical LCD TFT display panel that "satisfies high-definition display requirements while reducing maintenance costs".



Basic Parameter

Panel Brand Innolux Panel Model G121ICE-LH2
Panel Size 12.1-inch Panel Type a-SiTFT-LCD, LCD Module
Resolution 1280(RGB)x800, WXGA,124PPI Pixel Layout RGB vertical stripes
Display Area 261.12(W)x163.2(H) mm Appearance Size 278(W)x184(H)x9.61(D) mm
Visible Size 264.12(H)x166.2(V) mm Surface Treatment Matte, Hard coating(3H)
Brightness 600 cd/m² (Typ.) Contrast Ratio 1000:1(Typ.) (transmission)
Viewing Direction full-view Response Time 12/8 (Typ.) (Tr/Td) ms
Visual Angle 88/88/88/88 (Typ.) (CR≥10) Optical Mode AAS, normally black display, transmissive
Display Colors 262K/16.7M Backlight WLED,50K hours with LED driver
Weight 470/490g (Typ./ Max.) Application Industrial Engineering
Frame Frequency 60Hz Touch Screen No
Interface LVDS (1 ch, 6/8-bit), Connectors
Voltage Supply 3.3V (Typ.)
Environment Temperature Operating temperature: -30~80 °C; Storage temperature:-30~85 °C

Innolux G121ICE-LH2 LCD TFT Display Panel Key Features

1. 1280×800 WXGA resolution + 124 PPI: The small text and detailed parameters on the device can be clearly displayed. Workers / customers don't need to get close to view, avoiding operational errors caused by mistaking data.
2. 600cd/m2 high brightness + 1000:1 contrast ratio: Even in strong light conditions in the workshop, in supermarket spotlights, and under outdoor sunlight, the displayed numbers and icons remain sharp and clear. Workers operate more efficiently and customers have a better interaction experience.
3. 88° full viewing angle (CR ≥ 10): Regardless of standing at the side of the device or at an oblique angle of the terminal, the displayed colors and data do not shift color or distort. When multiple people collaborate, they don't have to gather in the front to view, improving operational flexibility.
4. 50K hours WLED backlight + 12ms response time: There is no need to frequently change the backlight; the 12ms fast response ensures that dynamic parameters and interaction interfaces do not have any ghosting during switching.



Why Partner with HXD for LCD TFT Displays?

  • Indusrtrial Control
    Indusrtrial Control

    The 1280×800 resolution can clearly display the detailed parameters of the machine tool, with a 3H hard surface layer that resists cutting fluid splashing and metal shavings scratching; the 12ms response enables the path data of the AGV vehicle to be updated in real time without delay, and the 50K hours of backlighting reduces the frequency of production line maintenance.

  • Commercial terminal
    Commercial terminal

    Self-service cash registers, intelligent express delivery cabinets, government affairs self-service processing machines, etc. With a brightness of 600cd/㎡, it can resist strong light in supermarkets and outdoors. The 124PPI allows the display of cashier bills and express information to be clearer. The 3H matte surface layer prevents fingerprints and stains, and can be wiped clean with one wipe, reducing the cleaning cost of the terminal.

  • Medical Equipment
    Medical Equipment

    Ultrasound monitor auxiliary screen, rehabilitation therapy instrument parameter screen, bedside monitor display screen, etc. With a 1000:1 contrast ratio, the details of ultrasound images are more prominent. The 88° full-angle view is convenient for medical staff to view from multiple angles. The anti-corrosion surface can withstand alcohol wiping, and the 50K-hour backlight avoids frequent screen removal which may affect diagnosis and treatment.

1. Customized Adaptation Services: We support customized adaptation of LCD screens in various sizes and models. From measurement to production, we provide one-on-one follow-up to ensure the glass cover perfectly fits the screen without affecting the original structure of the equipment.

2. Rigorous Quality Inspection: Every glass cover undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to our customers.

3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.

4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.

5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.



FAQs:


1. Do you support free samples?

A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.

2. How long is the cycle for customized complementary services (such as touch screen + bonding)?

A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.

3. Is parameter customization supported?

A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.

4. What is the after-sales guarantee for this product?

A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.

5. Is there a price discount for bulk purchases?

A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
