G121STN02.0

G121STN02.0

Wide temperature range, WLED backlight, lifespan over 50,000 hours, with LED driver, connectors facing upwards, 180-degree flip display, 6/8-bit grayscale selectable, matte surface.

Download PDF Send Message

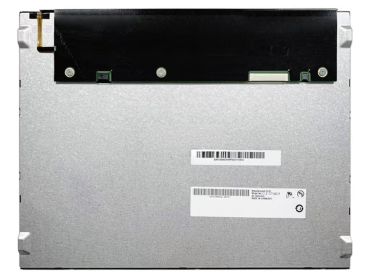

AUO G121STN02.0

AUO G121STN02.0 12.1-inch industrial-grade TFT-LCD display module features an 800×600 SVGA resolution, 500 cd/m² high brightness, and 800:1 high contrast ratio. It is equipped with an anti-glare matte 3H hardened coating, ensuring clear and detailed images even in complex lighting conditions. With 262K colors and 53% NTSC color gamut, it guarantees accurate color reproduction. The wide operating temperature range of -30 to 85°C and a 50,000-hour long-life WLED backlight, along with a LVDS high-speed interface and low power consumption design, make it stand out for its stability and durability. It is an ideal LCD display solution for industrial control terminals, medical equipment, outdoor self-service terminals, and in-vehicle displays.





Basic Parameters

Panel Brand AUO Panel Model G121STN02.0
Panel Size 12.1 inch Panel Type a-Si TFT-LCD,LCD Module
Resolution Ratio 800(RGB)×600, SVGA, 82PPI Pixel Layout RGB vertical stripes
Display Area 246(W)×184.5(H) mm Appearance Size 260.5(W)×203(H)×9(D) mm
Brightness(cd/m²) 500 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (transmission)
Visual Angle 80/80/65/75 (Typ.) (CR≥10) Surface Treatment Matte, Hard coating (3H)
Display Colors 262K/16.7M , 53% NTSC Optical Mode TN, normally white display, transmissive
Panel Weight 600g (Max.) Response Time 25/10 (Typ.) (Tr/Td) ms
Optimal Visual Angle 6 o'clock Backlight WLED , 50K hours with LED driver
Frame Frequency 60Hz   Application Industrial Engineering
Signal Interface 20 pins   LVDS (1 ch, 6/8-bit) , Connectors Touch Screen No
Driving Voltage 3.3V (Typ.)
Environment Temperature Operating Temperature: -20 ~70 °C ; Storage Temperature: -30 ~80 °C

AUO G121STN02.0 Optical Details

Basic Information

Brightness (cd/m2)

500

Contrast Ratio

800:1 (Transmission)

Viewing Angle

80/80/65/75 (Typ.)(CR≥10)

Optical Mode

TN, Normally White, Transmissive

Viewing Direction

6 o’clock

Response Time

25/10 (Typ.)(Tr/Td) (ms)

Color Performance

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K/16.7M (6-bit / 6-bit+Hi-FRC )

Color Temperature

6485K

Uniformity

1.33 (Typ./Max.)(5 points)

1931 Color Gamut

NTSC Ratio

53%

sRGB

72%

Adobe RGB

55%

DCI-P3

55%

REC.2020

39%

REmarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G121STN02.0 Interface Details

Signal Electrical

Current Input

200/240mA (Max.)

Voltage Input

3.3V (Typ.)

Consumption

660/792mW (Typ./Max.)

Signal System

LVDS (1 ch, 6/8-bit)

Interface Features

Position

Back

Type

Connector

Connector Detail

Brand

Model

Amount

Pin Pitch

Pins

STM

MSB240420HE

1pcs

1.25 mm

20 pins



AUO G121STN02.0 Backlight Details

Back-light Features



Lamp Type

WLED

Replacement

No

Position

Edge Light type

Amount

-

Lamp Shape

-

Life Time

50K (Min.) hours

Interface Features

Position

Back

Type

Connector

Interface Details

Brand

Model

Amount

Pins

Pin Pitch

Entery

3808K-F05N-12R

1 pcs

5 pins

1.25mm

Driver Electrical

with LED Driver

Driver Electrical

Current Input

12.0±1.2V

Voltage Input

330/350mA (Typ./Max.)

Consumption

3.96/4.20W (Typ./Max.)
