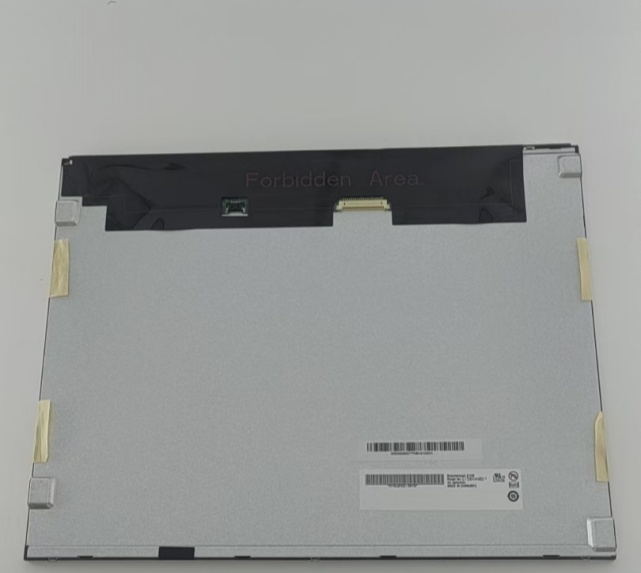

G150XAN02.1

Matching drive board:YT-VDH58 V1.1

Download PDF Send Message

Parameters

Panel Brand	AUO	panel model	G150XAN02.1
Panel size	15.0 inches	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1024(RGB)×768, XGA, 85PPI	pixel layout	RGB vertical stripes
display area	304.128(W)×228.096(H) mm	Appearance size	326.5(W)×253.5(H)×9(D) mm
Brightness(cd/m²)	800 cd/m² (Typ.)	the contrast	1000:1 (Typ.) (transmission)
viewing direction	full-view	surface treatment	Haze (20%)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	optical mode	AHVA, normally black display, transmissive
number of colors	16.2M , 60% NTSC	response time	25 (Typ.) (Tr+Td) ms
Screen Weight	920g (Max.)	Lamp Type	WLED , 50Khourswith LEDdriver
frame frequency	60Hz	be the same with	industrial engineering
signal interface	LVDS (1 ch, 8-bit) , 20 pins , Terminals	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~75 °C ; Storage temperature: -20 ~75 °C

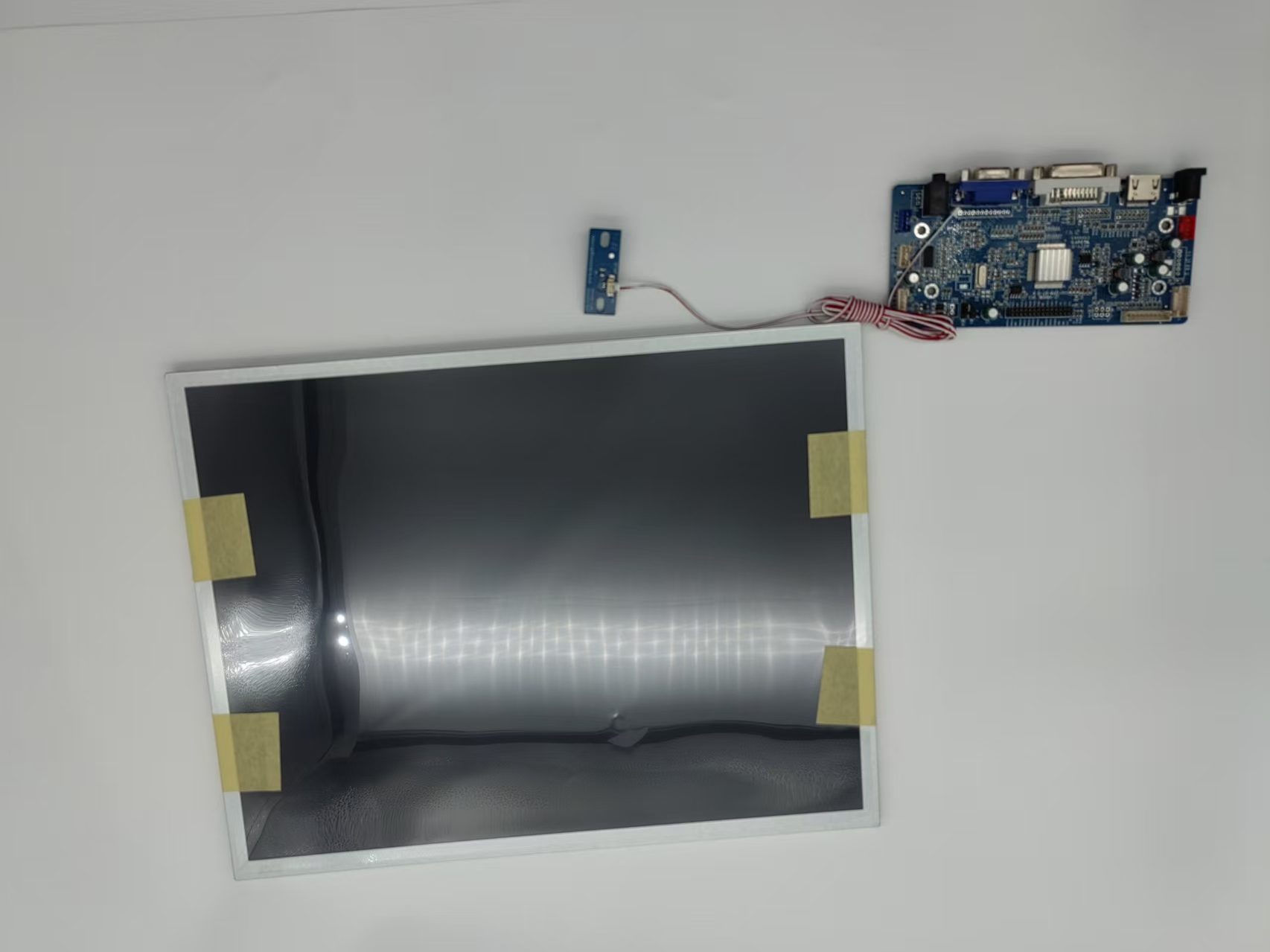

Matching scheme

This driver board is mainly used to support TFT LCD screen. The driver board has 1 channel VGA and 1 channel DVI interface and 1 channel HDMI. Support LVDS output interface. Motherboard adopts Mstar signal processing chip, powerful processing function, can support various specifications of standards and non-standard signals. Use high specification devices with good working performance.

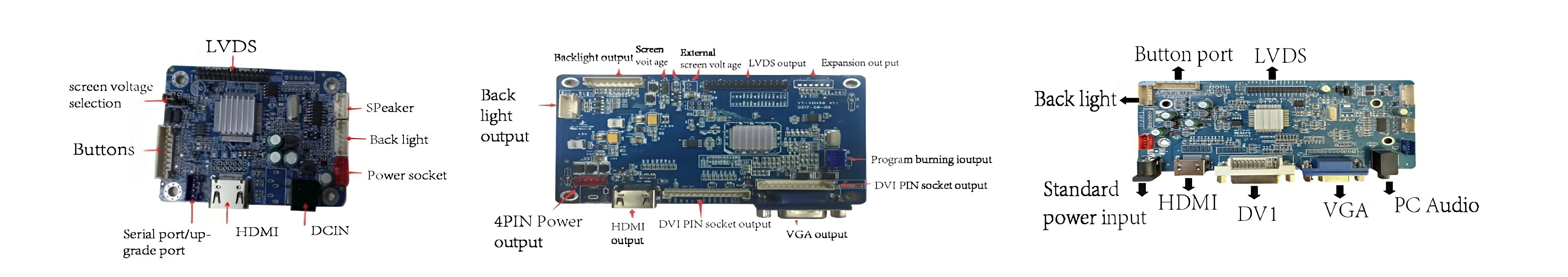

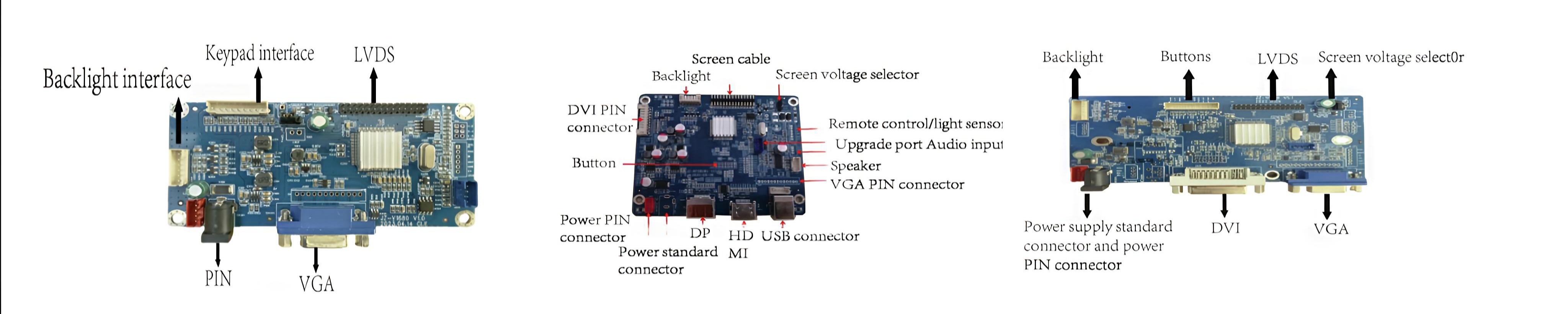

Driver board

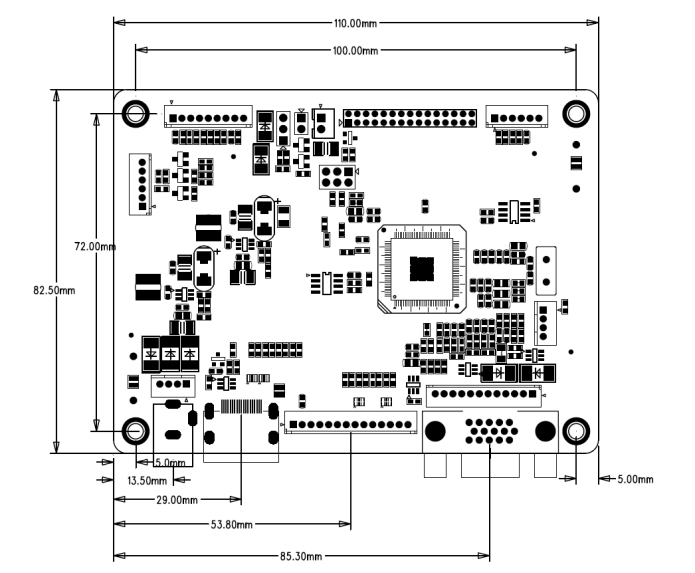

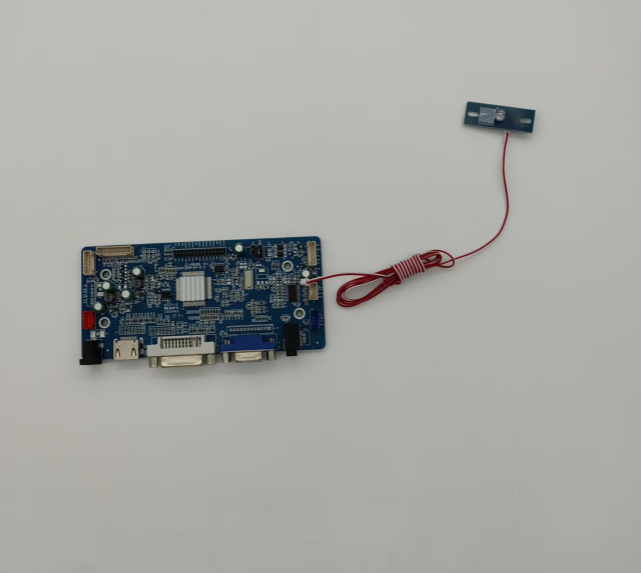

Model: YT-VDH58 V1.1

Operating temperature range-40 to 70℃
* Optional addition of automatic photosensitive control
* Supports maximum resolution up to 1920x1200
* Can receive remote control function

Model: HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080,https://www.hxdlcd.com/hxd-h58-v1-0-backlight-driver-board-2.html

Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200https://www.hxdlcd.com/hxd-vdh58-v1-1-backlight-driver-board.html

Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200https://www.hxdlcd.com/hxd-vdh58l-v1-1backlight-driver-board.html

Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200https://www.hxdlcd.com/hxd-v1680-v1-0-backlight-driver-board.html

Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200https://www.hxdlcd.com/hxd-hp58uwv-v1-1-backlight-driver-board.html

Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200https://www.hxdlcd.com/hxd-vd68-v1-1-backlight-driver-board.html

The supporting driver board adopts stable industrial scheme. All devices meet industrial standards. The board has been strictly tested and demonstrated. The recommended driver board is matched according to the parameters of the LCD screen.
It expands the application of LCD screen. Detailed parameters of the driver board are described in detail on other pages.
