sRGB, WLED backlight, Lifespan > 50,000 hours, with LED Driver, Reverse Pin Configuration, Matte Surface.

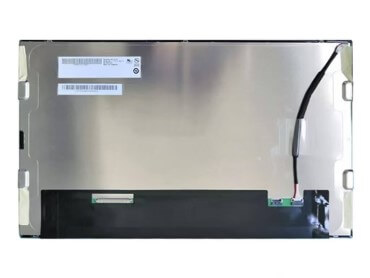

AUO G156HAN02.303 is a 15.6-inch industrial LCD display module that adopts a-Si technology. With 1920*1080 high resolution and 1000:1 high contrast ratio, the content displayed on the LCD panel will more clear. It is equipped with LED driver board and WLED backlight but has no touch function. G156HAN02.303 is widely used in industrial sector (HMI, industrial control, SCADA terminal), meidical sector (ultrasound device, monitoring equipment, aesthetic device display), digital signage or in-vehicle display. Basic parameters in the following table:
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G156HAN02.303
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
15.6
Pixel Layout
RGB Vertical Strip
Outline Dimension
363.8(W)×215.9(H)×9.3(D) mm
Optical Mode
AHVA, Normally black display, TM
Active Area
344.16(W)×193.59(H) mm
Backlight Type
WLED, 50K hours, with LED driver
Visual Area
347.06(W)×196.49(H) mm
Interface
LVDS (2 ch, 8-bit), Connectors, 30 pins
Optimal Visual Angle
Full-view
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Resolution
1920 (RGB)×1080, FHD, 141PPI
Response Time
25 (Typ.)(Tr+Td) ms
Brightness (cd/m²)
500
Display Colors
16.7M, 100% sRGB
Contrast Ratio
1000:1 (Typ.) (TM)
Operating Temperature (°C )
-20~ 70
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-20~70
Operating Frequency
60Hz
Weight
660g (Max.)
Application
Industrial Control/Medical Care
FAQs: Q: Do you have AUO G156HAN02.303 in stock?
A: Yes. We currently have stock of every LCD panel model listed. However, the inventory for each model is limited. You can consult our sales manager to check the stock availability for that model. Q: What is the minimum order quantity for AUO G156HAN02.303?
A:1 piece. Our minimum order quantity for each LCD panel is 1 piece. If you need to adjust any parameters for customization, please consult our sales manager for customization options and minimum order quantities. Q: What can be customized for AUO G156HAN02.303?
A: You can adjust parameters such as brightness, interface, and resolution. You can also choose to add a touch screen and its bonding method.
Q: Can you guarantee smooth delivery for large orders?
A: For in-production models, we can offer a long-term guarantee. However, for discontinued models, if we have stock, we will inform you of the inventory quantity. For non-stock items, we are willing to help you source them from within mainland China.
