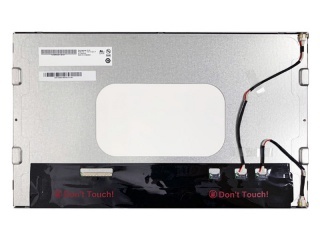

| Brand | AUO | Model P/N | G156HAN04.0 | |||||
| Diagonal Size | 15.6" | Panel Type | a-Si TFT-LCD,LCM | |||||
| Resolution | 1920(RGB)x1080,FHD 141PPI | Pixel Format | RGB Vertical Stripe | |||||
| Active Area | 344.16(W)x193.59(H) mm | Bezel Opening | 347.06(W)x196.49(H) mm | |||||
| Outline(mm) | 363.8 x 215.9 x 11.02 (HxVxD) | Treatment | Antiglare, Hard coating (3H) | |||||
| Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) | |||||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Response | 25 (Typ.)(Tr+Td) ms | |||||
| Good View at | Symmetry | Work Mode | AHVA, Normally Black, Transmissive | |||||
| Color Depth | 16.7M 100% sRGB | Backlight | WLED, 50K hours, With LED Driver | |||||
| Mass | 850g (Max.) | Used for | industrial ,outdoor High Brightness ,healthcare | |||||
| Re | fr esh Rate | 60Hz | Touchscreen | Without | ||||
| Signal Type | LVDS(2 ch,8-bit),30 pins Connector | |||||||
| Voltage Supply | 3.3V (Typ.) | |||||||
| Max. Ratings | Storage Temp.:-30~85℃;Operating Temp.:-30~85℃ | |||||||
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tianma | P1560FHF3MB00 | 15.6" | 1920×1080 | 500 nits | 1500:1 | WLED | eDP | 40 | -10~70 ° C | ||
| Tianma | P1560FHF1MB00 | 15.6" | 1920×1080 | 400 nits | 1000:1 | WLED | LVDS | 30 | -20~70 °C | ||
| Tianma | P1560FHF2MB00 | 15.6" | 1920×1080 | 350 nits | 2000:1 | WLED | LVDS | 40 | -10~60 ° C | ||
| Tianma | P1560FHF2MA00 | 15.6" | 1920×1080 | 1000 nits | 1500:1 | WLED | LVDS | 30 | -30~80 ° C | ||
| Innolux | G156HCE-L01 | 15.6" | 1920×1080 | 450 nits | 800:1 | WLED | LVDS | 40 | -30~85 ° C | ||
| Innolux | G156HCE-LH1 | 15.6" | 1920×1080 | 1200 nits | 800:1 | WLED | LVDS | 40 | -30~80 °C | ||
| Innolux | G156HCE-LN1 | 15.6" | 1920×1080 | 350 nits | 800:1 | WLED | LVDS | 40 | -20~70 ° C | ||
| Innolux | N156HCE-EN1 | 15.6" | 1920×1080 | 300 nits | 700:1 | WLED | eDP | 30 | 0~50° C | ||
| Innolux | G156HCE-E01 | 15.6" | 1920×1080 | 450 nits | 1000:1 | WLED | eDP | 40 | 0~60℃ | ||
| Innolux | G156HCE-P01 | 15.6" | 1920×1080 | 800:1 | No Backlight | LVDS | 40 | -30~85 °C | |||
| AUO | G156HAN02.3 | 15.6" | 1920×1080 | 500 nits | 1000:1 | WLED | LVDS | 30 | -10~65℃ | ||
| AUO | G156HAN02.0 | 15.6" | 1920×1080 | 500 nits | 1000:1 | WLED | eDP | 30 | -20~70°C | ||
| AUO | G156HAN03.0 | 15.6" | 1920×1080 | 300 nits | 1000:1 | WLED | eDP | 30 | 0~50℃ |
