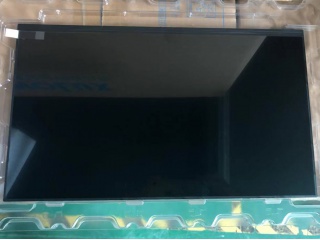

G156HCE-E01

Panel Brand	Innolux	panel model	G156HCE-E01
Panel size	15.6-inch	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	1920(RGB)x1080, FHD, 141PPI	pixel layout	RGB vertical stripes
display area	344.16(W)x193.59(H) mm	Appearance size	351.84(W)x208.88(H)x6.5(D) mm
viewable area		surface treatment	Hard coating (3H)
panel brightness	450 cd/m² (Typ.)	contrast	1000:1 (Typ.) (TM)
viewing angle	89/89/89/89 (Typ.) (CR≥10)	work pattern	AAS, normally black display, transmissive
apparent direction	full-view	reaction time	14/11 (Typ.) (Tr/Td) ms
display color	16.7M,72% NTSC	light source type	WLED,50K hours with LED driver
working frequency	60Hz	touch screen	touchless
panel weight	550g (Typ.)	panel application	Industrial games
signal interface	eDP (2 Lanes), eDP1.2,40 pins, Terminals
driving voltage	3.3V (Typ.)
work environment	Working temperature: 0~60℃; Storage temperature: -20~70 ℃
