White LED backlighting, with a lifespan exceeding 50,000 hours. Includes LED driver, terminals installed on the positive side, matte surface, TCO 5.0 Compliance.

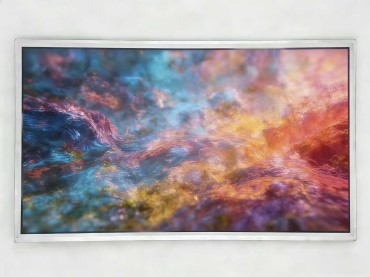

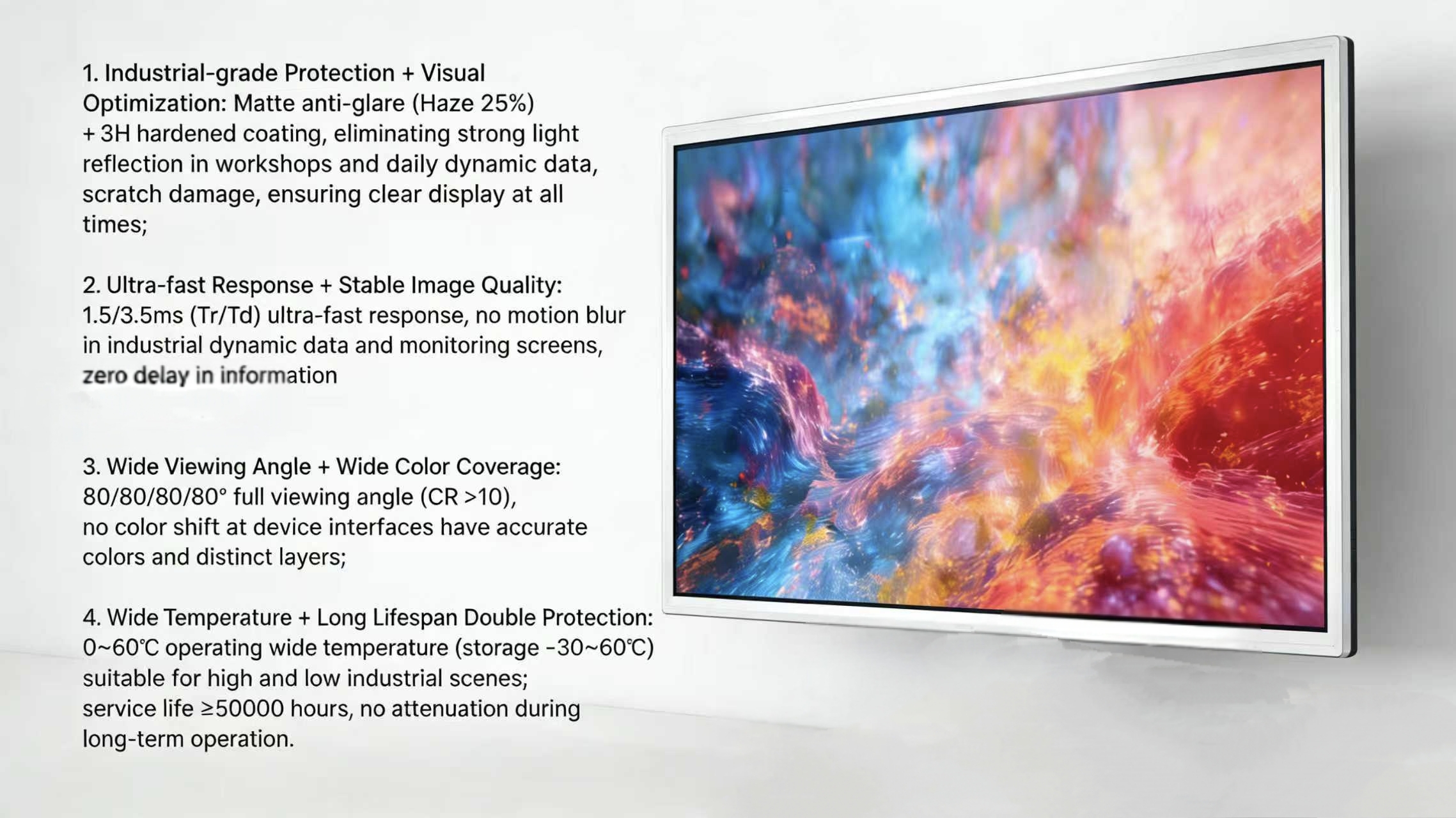

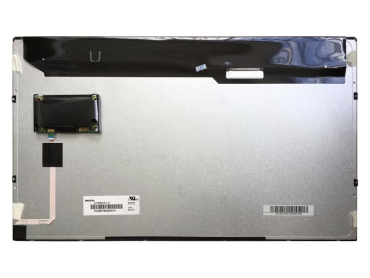

As a a-Si TFT-LCD screen specially designed by Chimei/Innolux for industrial control, G185BGE-L01 achieves clear and stable information display in industrial settings with a resolution of 1366×768 WXGA (84PPI) and a high contrast ratio of 1000:1. Its 300cd/㎡ brightness, combined with a matte (Haze 25%) and hard coating (3H) design, can handle complex light conditions in workshops and resist daily wear and stains. With dimensions of 430.37×254.6×16.6mm and a lightweight of 1.58Kg (maximum 1.65Kg), it meets the installation space and load requirements of industrial equipment, balancing practicality and convenience.
Brand
Chimei / Innolux
Type
a-Si TFT-LCD
Model
G185BGE-L01
Surface Finish
Matte Surface (Haze 25%), Hard Coating (3H)
Size (inch)
18.5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
430.37(W)×254.6(H)×16.6(D)
Optical Mode
TN
Active Area (WxH mm)
409.8(W)x230.4(H)
Backlight Type
WLED
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Interface
MIPI (4 data lanes), 39 pins
Resolution
1366(RGB)×768,WXGA,84PPI
Response Time
1.5 /3.5(Typ.) (Tr/Td) ms
Brightness (cd/m²)
300
Display Colors
16.7M, 72%NTSC
Contrast Ratio
1000:1 (Typ.) (TM)
Operating Temperature (°C )
0~ 60
Operating Voltage
5.0V (Typ.)
Storage Temperature (°C )
-30~60
Operating Frequency
60Hz
Weight
1.58/1.65Kgs (Typ./Max.)
Application
Industrial Control
Core fields: Industrial control, automation equipment, data monitoring systems; Subdivided terminals: 1. Industrial PLC control cabinet display screen 2. Intelligent monitoring terminal for assembly line 3. Operating screen for warehousing and logistics sorting equipment 4. Display module for medical diagnostic equipment (such as portable ultrasound machine) 5. Vehicle-mounted industrial-grade navigation / monitoring screen
Q1: Is the anti-glare effect of Chimei/Innolux G185BGE-L01 sufficient in the strong light environment of the workshop?
A: 25% matte anti-glare + 300cd/㎡ brightness. Even in the top light and side light conditions of the workshop, the content can be clearly displayed without the need for additional shading covers.
Q2: How long is the delivery cycle for bulk purchases?
A: Regular orders are dispatched within 7-10 working days; standard inventory models can be dispatched within 3 working days, and urgent orders support 48-hour expedited delivery.
Q3: Does LCD tft panel body's anti-vibration performance meet industrial standards?
A: Yes! The screen body structure has been reinforced and can withstand slight vibrations in industrial scenarios.
Q4: Do we need to develop the driver ourselves?
A: No! We provide driver code examples and debugging documents for industrial main controllers (such as STM32, PLC, etc.).
Q5: Can LCD tft screen body's interface be compatible with the interfaces of old devices?
A: Support MIPI (4 data channels) + 39-pin interface. If the interface of the old device does not match, we can provide an interface adapter solution to achieve seamless compatibility.
Q7: What is the after-sales process if the LCD tft panel body dosen't work?
A: Contact our after-sales team → Provide information/photos of the faulty device → Provide a detection plan within 24 hours → Free repair/ replacement for non-human damage → Return within 7 working days.
