G185HAN01.3

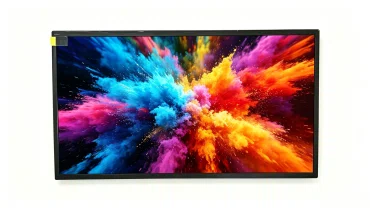

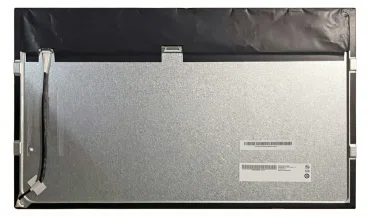

18.5 Inch Industrial LCD Panel AUO G185HAN01.3

AUO G185HAN01.3 is an 18.5-inch industrial LCD panel module featuring a-Si TFT-LCD technology. It is equipped with a WLED backlight and includes an LED backlight driver but does not support touch functionality. G185HAN01.3 operates normally within a temperature range of -20 to 70°C and has a vibration resistance of 1.5G (14.7 m/s²). G185HAN01.3 has a display resolution of 1920 (RGB) × 1080 (FHD) with a 16:9 aspect ratio (width:height), and the pixels are arranged in vertical RGB stripes. For the backlight, it uses a side WLED light source with a lifespan of 50,000 hours. G185HAN01.3 uses an eDP (2 Lanes) signal interface with a total of 30 pins, connected via connectors, and operates at a drive voltage of 3.3V (Typ.). Below is a list of key specifications for AUO G185HAN01.3.

	Size	18.5-inch	Backlight	WLED
	Brand	AUO	Interface	eDP (2 Lanes)
	Model	G185HAN01.3	Brightness	500 cd/m²
	Resolution	1920(RGB)×1080	Operating Temperature	-20 ~ 70 °C
	Visual Angle	89/89/89/89	Production State	In Production

AUO G185HAN01.3 Key Advantages

a. AHVA Display Technology

• Wide viewing angles with uniform color reproduction; viewing angles of nearly 178° in all directions ensures no color shift or whitening when viewed from multiple angles.

• Accurate color reproduction makes industrial monitoring, equipment control, and data display more realistic.

• Compared to standard TN panels, it reduces eye strain during prolonged viewing, offering a better user experience for long-term use at industrial control consoles.

b. 1920×1080 Full HD Resolution

• High image detail allows for the simultaneous display of more parameters, charts, text, and user interfaces.

• Compatible with mainstream industrial control systems, embedded motherboards, and high-definition image capture devices.

• High-definition image quality meets the requirements for visual inspection, equipment interfaces, and large-screen human-machine interaction.

c. 500 cd/m² Brightness + 1000:1 High Contrast Ratio

• With 500 nits brightness, the display remains clearly visible in brightly lit indoor workshops, workstations near windows, and semi-outdoor equipment settings.

• High contrast ratio ensures distinct light and dark levels, making data in dark areas and small light-colored text clearly visible.

• G185HAN01.3 does not appear gray or allow light to pass through in bright environments, ensuring strong display stability.

d. eDP (2 Lanes) Interface

• The interface features a clean design with minimal cabling, ensuring neat and organized internal wiring.

• Offers stable data transfer rates and strong anti-interference capabilities, making it compatible with embedded industrial control boards and mainstream industrial motherboards.

• With lower power consumption, it supports low-power industrial system solutions and simplifies circuit design.

• Compared to traditional LVDS, it requires fewer connections, simplifies assembly, and is suitable for small, compact industrial equipment.

e. Integrated LED Driver + 50,000-Hour Backlight Lifespan

• The integrated driver design eliminates the need for external high-voltage boards or driver boards, resulting in a more streamlined overall structure.

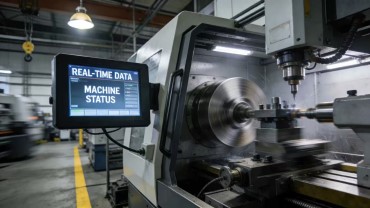

• Simplified circuitry significantly reduces failure rates, and the design is shock- and vibration-resistant, making it suitable for machine tools, automotive applications, and automated vibration equipment.

• An ultra-long backlight lifespan of 50,000 hours reduces maintenance costs in continuous operation.

• Backlight power consumption is balanced, with minimal temperature rise and slow brightness decay under wide temperature conditions.

Detailed specifications of AUO G185HAN01.3 are in the below table.
