G190EAN01.1

Ultra-high Brightness, White LED Backlight, Lifespan exceeding 50,000 hours, Front-mounted Terminals, and Matte surface.

Download PDF Send Message

Basic Parameters

Brand	AUO	Type	a-Si TFT-LCD
Model	G190EAN01.1	Surface Finish	Metta
Size (inch)	19	Pixel Layout	LCR Vertical Strip
Outline Dimension (WxHxD mm)	396(W)×324(H)×17.5(D)	Operating Mode	AHVA
Active Area (WxH mm)	376.32(W)x301.056(H)	Backlight Type	9S6P WLED
Viewing Angle	89/89/89/89	Interface	LVDS, 30 pins
Resolution	1280x1024 (SXGA)	Response Time	13/12 (Typ.)(Tr/Td) ms
Brightness (cd/m²)	1300	Operating Temperature (°C )	0~ 50
Contrast Ratio	1000:1	Storage Temperature (°C )	-20 ~ 60
Operating Voltage	5V	Weight	1.55Kgs
Operating Frequency	60Hz
Application	Industrial Control, Medical Imaging, Outdoor High Brightness Environment

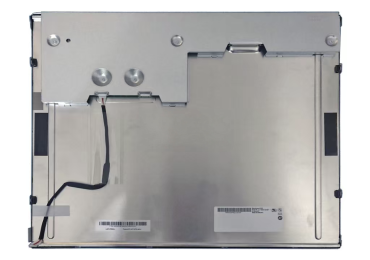

AUO G190EAN01.1 Product Picture

Why Choose Us?

✅12 Years of LCD Supply Chain Expertise

Since 2013, we’ve specialized in LCD distribution and customization, representing 7 top brands like AUO, TIANMA, and BOE. With over 100,000 panels in stock and 24/7 global shipping, our supply chain is rock-solid and reliable.

✅Backed by 7 International Certifications

ISO 9001/13485/14001, CE, RoHS, and IATF 16949 (in progress) — every shipment includes original test reports, ensuring zero export hurdles.

✅One-Stop Engineering Customization

Our 15-member expert team delivers prototypes in 7 days and mass production in 30. We support IP67 protection, -40~85℃ extreme temps, MIL-STD shock resistance, and sunlight-readable displays.

✅Proven by 3000+ Global Clients

Serving industry leaders like CRRC, Philips Healthcare, and BYD Automotive, we’ve delivered over 3 million flawless panels with zero returns and 95+ NPS satisfaction.

📩Request Full Free Quotation & Custom Solution Now → Email & WhatsApp & Wechat

FAQ

1. What is the exact brightness of the AUO G190EAN01.1?
A: It achieves 1300 nits brightness with a high-contrast ratio and wide viewing angle design. The display remains clearly visible under strong sunlight, making it fully suitable for outdoor/semi-outdoor applications such as outdoor advertising displays and industrial control systems.

2. What are the resolution and aspect ratio of this 19-inch LCD panel?
A: Resolution: 1280×1024 (SXGA), Aspect Ratio: 4:3. High pixel density delivers sharp text and image display, compatible with most industrial and commercial equipment.

3. What is the lifespan?
A: Mean Time Between Failures (MTBF) ≥50,000 hours. Includes 1-year full unit warranty + lifetime technical support. Free repair/replacement for non-human-induced damage.

4. Do you offer customization services ?
A: Yes! We customize brightness (800-5000 nits), interface types, and protection ratings (IP65) to meet specialized requirements (e.g., automotive, outdoor terminals).

5. What is the operating temperature range for this LCD screen?
A: Operating temperature: 0°C to 50°C; Storage temperature: -20°C to 50°C. Resistant to extreme temperatures and electromagnetic interference, suitable for harsh environments like industrial workshops and outdoor base stations.

6. What technical support channels are available if issues arise during installation or use?
A: We provide 24/7 online technical support (via email/phone/video), along with detailed installation manuals and driver documentation. Engineers can remotely assist in resolving issues.

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
AUO	G190EG01 V1	19"	1280×1024	350 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190ETN01.001	19"	1280×1024	350 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190ETN01.204	19"	1280×1024	350 nits	1000:1	WLED	LVDS	30	-30~85℃
AUO	G190ETN01.4	19"	1280×1024	450 nits	1000:1	WLED	LVDS	30	-30~85°C
AUO	G190EG02 V1	19"	1280×1024	300 nits	2000:1	WLED	LVDS	30	0~60℃
