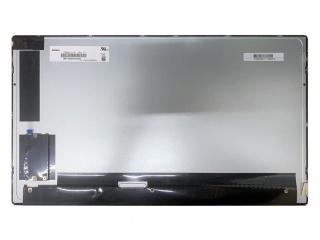

G200HJJ-L01

G200HJJ-L01

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	panel model	G200HJJ-L01
Panel size	19.5 inches	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1920(RGB)x1080,FHD,112PPI	pixel layout	RGB vertical stripes
display area	434.88(W)x238.68(H) mm	Appearance size	459(W)x263(H)x12.47(D) mm
visible size	438.18 x 241.98 (HxV) mm	surface treatment	Haze (25%), Hard coating (3H)
Brightness (cd/m²)	450 cd/m² (Typ.)	contrast	3000:1(Typ.) (transmission)
recommended angle of view	full-view	optical mode	MVA, normally black display, transmissive
visual Angle	85/85/85/85 (Typ.) (CR≥10)	response speed	15/5 (Typ.) (Tr/Td), 25 (Typ.) (G to G) ms
number of colors	16.7M,72% NTSC	backlight system	WLED,50K hours with LED driver
weight	1.66±0.08Kgs	be the same with	industrial engineering
refresh rate	60Hz	touch screen	touchless
signal type	LVDS(2 ch,8-bit), Terminals, 30 pins
voltage supply	5.0V (Typ.)
maximum rated	Storage temperature: -20 ° C ~ 60 ° C Working temperature: 0~50° C
