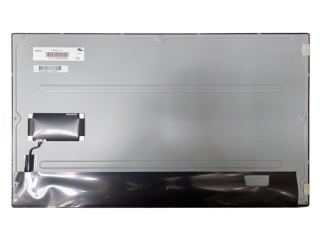

G238HCJ-L02

G238HCJ-L02

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	Panel Model	G238HCJ-L02
Panel Size	23.8 inches	Panel Type	a-Si TFT-LCD, liquid crystal module
Resolution	1920(RGB)x1080, FHD, 92PPI	Pixel Layout	RGB vertical stripe
Display Area	527.04(W)x296.46(H)mm	Appearance Size	540.24(W)x315.66(H)x13.85(D)mm
Viewable Size	530.2(W)x299.6(H)mm	Surface Treatment	Matte (Haze 25%), Hard coating (3H)
Brightness (cd/m²)	450(Typ.)	Contrast	1000:1(Typ.)[Transmission]
Optimal Angle	Full View	Optical Mode	AAS, Normally Black Display, Transmissive
Viewing Angle	89/89/89/89(Typ.)(CR≥10)	Response Speed	8/7(Typ.)(Tr/Td), 14(Typ.)(G to G) ms
Color Quantity	16.7M, 74% NTSC	Backlight Type	WLED, 50K hours, including LED driver
Screen Weight	2.27Kgs(Typ.)	Applicable To	Industrial
Refresh Rate	60Hz	Touch Function	No Touch
Signal System	LVDS(2 ch,8-bit), connector, 30 pins
Supply Voltage	5.0±0.5V
Maximum Rating	Storage temperature: -20~60℃ Operating temperature: 0~60℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P2380FHF1MB00	23.8"	1920×1080	350 nits	1800:1	WLED	LVDS	30	0~50° C
Tianma	P2380UHF1MA00	23.8"	3840×2160	1300 nits	1200:1	WLED	eDP	30	-20~70 ° C
Innolux	G238HCJ-L02	23.8"	1920×1080	450 nits	1000:1	WLED	LVDS	30	0~60℃
Innolux	G238HCJ-LH1	23.8"	1920×1080	1000 nits	1000:1	WLED	LVDS	30	-30~80 °C
Innolux	G238HCJ-L01	23.8"	1920×1080	350 nits	1000:1	WLED	LVDS	30	0~50 ° C
AUO	G238HAN01.5	23.8"	1920×1080	350 nits	1800:1	WLED	LVDS	30	0~50 ° C
AUO	G238HAN04.0	23.8"	1920×1080	350 nits	1000:1	WLED	LVDS		0~60℃
AUO	G238HAN01.0	23.8"	1920×1080	250 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G238HAN01.3	23.8"	1920×1080	600 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G238HAN01.1	23.8"	1920×1080	400 nits	1000:1	WLED	LVDS	30	0~50 ° C
