G320ZAN02.4

DCI-P3, sRGB, white LED backlight, with LED driver, connector flip, 10-bit grayscale, matte finish (100% sRGB, LBL)

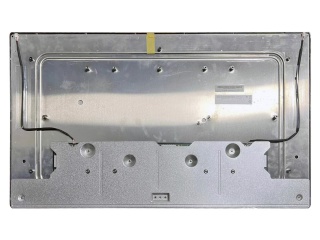

High Resolution 3840*2160 Industrial TFT LCD Display AUO G320ZAN02.4

AUO G320ZAN02.4 is a 32-inch industrial TFT LCD display module that adopts a-Si TFT-LCD technology and AHVA wide-viewing-angle technology, supporting full-view display. It boasts a 3840×2160 (UHD, 4K) ultra-high-definition resolution with a pixel density exceeding 140 PPI, delivering rich detail and realistic color reproduction. Its color gamut reaches 100% sRGB, and it supports low blue light emission, effectively reducing eye strain during prolonged viewing. G320ZAN02.4 supports a V-by-One 8-lane signal interface with 51 pins, a driving voltage of 12.0V (Typ.), and a maximum power consumption of 76W.

Based on these characteristics, AUO G320ZAN02.4 is suitable for applications with high demand image quality requirements, such as high-end industrial control display panels, CNC machine display panel, embedded industrial PC monitor, medical imaging (medical diagnostic monitor and endoscopic/surgical display) , professional monitors, and digital signage (commercial digital signage display, self-service terminal display and advertising display). The basic parameters of AUO G320ZAN02.4 are in the following table:

Brand	AUO	Model	G320ZAN02.4
Size	32.0 inches	Type	a-Si TFT-LCD, LCD Module
Resolution	3840(RGB) × 2160, UHD, 137PPI	Pixel Layout	RGB vertical stripes
Active Area	708.48(W) × 398.52(H) mm	Outline Dimension	727.3(W) × 424.5(H) × 20.98(D) mm
Viewable Area	714.48 × 404.52 mm (HxV)	Surface Treatment	Matte Surface
Brightness (cd/m²)	500 (Typ.)	Contrast Ratio	1000:1(Typ.) [Transmission]
Visual-angle Direction	Full-view	Optical Mode	AHVA, normally black display, transmissive
Visual Angle	89/89/89/89 (Typ.) (CR≥10)	Response Speed	22 (Typ.) (Tr+Td) ms
Display Colors	1.07B,100% sRGB	Backlight Type	WLED,30K hours, with LED driver
Weight	4.63Kgs (Typ.)	Application	Industrial Control/ Medical Imaging
Refresh Rate	60Hz	Touch Function	No touch function
Backlight	V-by-One 8 lane, Connector, 51 pins
Supply Voltage	12.0V (Typ.)
Environment Temperature	Storage temperature: -20 ℃ ~ 60 ℃; Working temperature: 0~50℃

AUO G320ZAN02.4 Matching Accessories

Custom Cables

We support custom cable services for various industrial TFT LCD display modules, including signal cables for LVDS, eDP, TTL, and more. You can freely customize cable length, connector type, pin assignment, and other specifications according to your device structure. Proper cable design not only optimizes internal wiring and enhances anti-interference capability, but also reduces assembly complexity and improves production efficiency. Whether for sample testing or mass production, we offer fast response to meet your structural requirements.

LCD Controller Board/LCD Driver Board
We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.

Touch Panel

We offer three major types of touch panels: resistive touch panel, capacitive touch panel, and infrared touch panel, covering a wide range of applications including industrial control, medical equipment, automotive displays, and self-service terminals. Based on your operating environment, accuracy requirements, and cost budget, you can flexibly choose the touch solution that best fits your device. Additionally, we support professional touch panel bonding services, including both frame bonding and air bonding. These processes effectively improve optical performance, dust resistance, and shock resistance, making your device more competitive in the market.

Why Choose Us?

Zhengzhou Hengxinda Technology Co., Ltd. is a professional supplier specializing in industrial LCD panels, TFT-LCD modules, and display driver solutions. We maintains in-stock inventory of industrial LCD displays from leading brands such as AUO, BOE, Tianma, Innolux, Sharp, and others, including outdoor high-brightness displays, wide-temperature LCD panels, bar TFT LCD displays, and long-life backlight LCD panels. Product sizes range from 3.5 inches to 32 inches, and are widely used in industrial HMI, medical imaging, automotive displays, military/aerborne applications, security monitoring, digital signage, self-service terminals, and smart home appliances.

We supports orders starting from just 1 piece, while offering flexible retail and bulk wholesale services to both distributors and retailers. Additionally, we provide one-stop technical support including custom driver boards for LVDS, eDP, V-by-One, MIPI and other interfaces, resistive/capacitive/infrared touch panel bonding ( Full bonding and Air bonding), as well as custom cable services. All TFT LCD panels undergo full inspection and on-board testing before shipment to ensure they work immediately upon power-on, helping you shorten development cycles and reduce procurement costs.

📩 Contact us today for quotes, samples, or technical support — let us help you find the right display solution for your project!

FAQ:

1. Does the AUO G320ZAN02.4 support touch functionality?

A: No. AUO G320ZAN02.4 is a non-touch LCD module. For touch functionality, you can choose to add an external touchscreen (resistive, capacitive, or infrared). We provide various touch screens and offer touch screen + TFT LCD panel bonding services.

2. What is the color gamut coverage of AUO G320ZAN02.4?

A: G320ZAN02.4 supports 100% sRGB color gamut and features low blue light characteristics, making it suitable for applications requiring high color accuracy and eye protection.

3. What type of backlight does AUO G320ZAN02.4 use?

A: It uses WLED backlighting, including the LED driver. The backlight's lifespan is 30,000 hours.

4. What type of interface does G320ZAN02.4 use?

A: The signal interface is V-by-One 8-lane, 51-pin terminal. The drive voltage is 12.0V (Typ.), and the maximum power consumption is 76W.

5. What is the surface treatment of AUO G320ZAN02.4?

A: AUO G320ZAN02.4 has a matte finish, which has anti-glare properties, effectively reducing ambient light reflection and making it suitable for indoor environments with complex lighting.

6. What is the viewing angle?

A: AUO G320ZAN02.4 uses AHVA wide viewing angle technology, providing full-view display. The typical viewing angle is 89/89/89/89° (CR≥10), with no noticeable color shift when viewed from any direction.

7. What is the response time?

A: The typical response time is 22ms (Tr+Td), with a refresh rate of 60Hz. Suitable for general dynamic scene scenarios, such as surveillance equipment, industrial HMI, and digital signage, but not suitable for e-sports or broadcasting scenarios with extremely fast-moving scenes.

8. What is the weight of AUO G320ZAN02.4?

A: The typical weight is 4.63 kg (Typ.), suitable for embedded medium to large-sized devices.

9. Does AUO G320ZAN02.4 come with technical support documentation?

A: Yes, we can provide product specifications, mechanical drawings, and drive suggestions with the shipment. For custom driver boards or cable requirements, please contact us.
